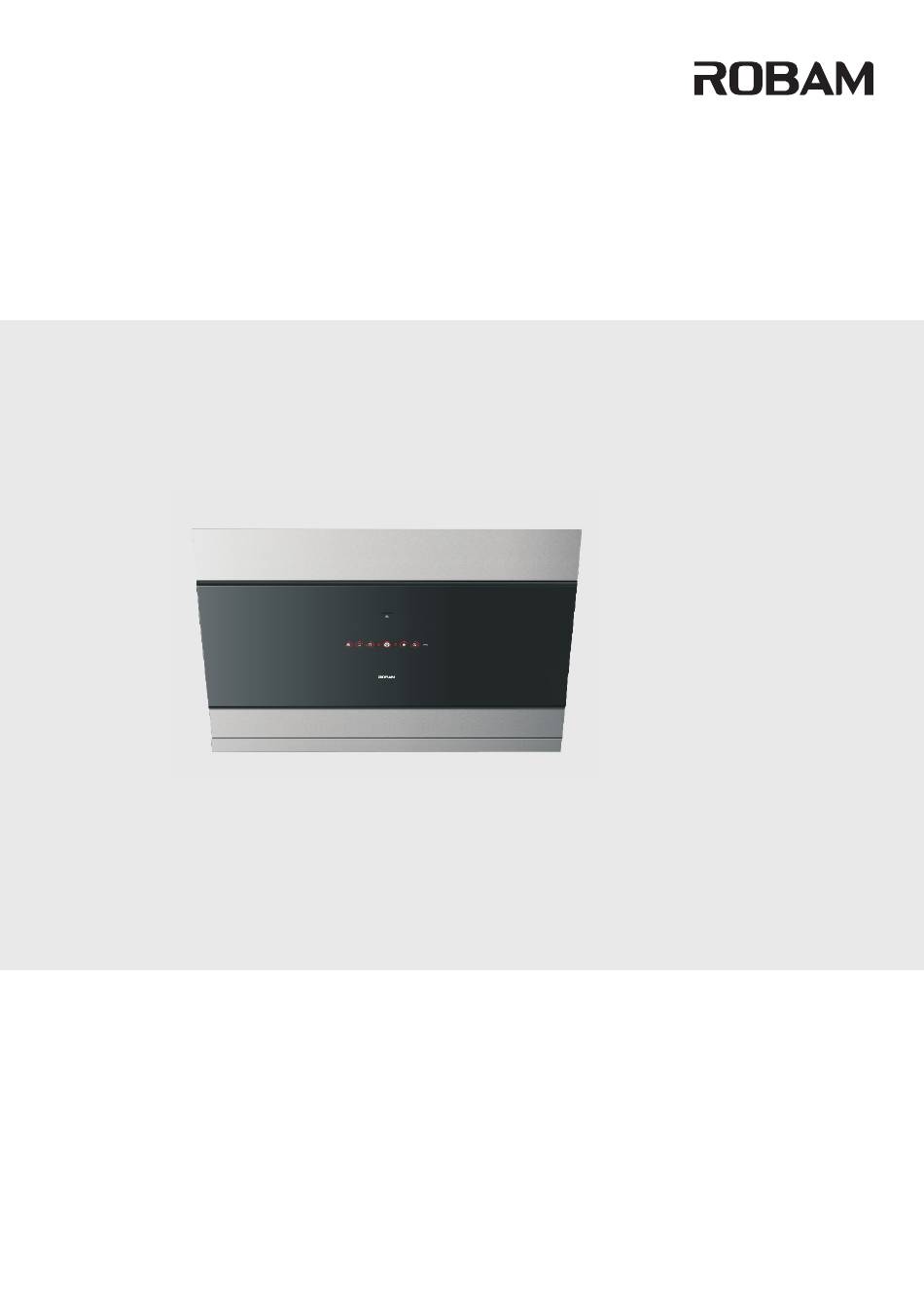

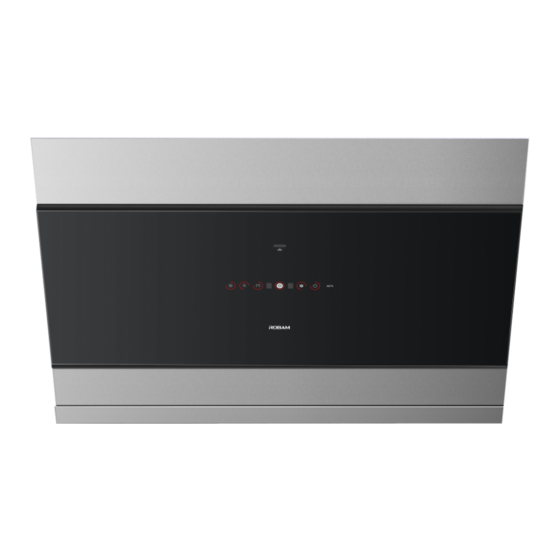

- Page 1 User Manual Before operating this unit, please read the ser manual completely and keep it. CXW-220-A670 Range Hood...
-
Page 2: Table Of Contents
CONTENTS Safety Precaution........................1 Important Information......................3 Product Overview........................4 Packing List..........................4 Installation Instructions......................5 User Manual........................... Maintenance......................... Removal of Components....................... Circuit Diagram........................12 Troubleshooting of General faults..................13... -
Page 3: Safety Precaution
Touch Earthed Execution Electric Shock Disassembly Please use this product according to manual strictly, or ROBAM shall not take any Warning responsible caused by improper operation. Danger Don't allow children or weakling to use Don’t touch plug, electric parts or... - Page 4 Range Hood Warning Range hood must be installed, Put out the stove fire in time when it is not used. That the stove fire bakes d i s a s s e m b l e d o r m a i n t a i n e d b y the range hood directly is prohibited.
-
Page 5: Important Information
Range Hood Notice The gas from range hood shall not be T h e t e m p e r a t u r e f o r r a n g e h o o d exhausted to hot flue used for burning gas or working can’t exceed 40℃. -
Page 6: Product Overview
Range Hood Product Overview Technical Specification Model CXW-220-A670 Noise 57dB Power Supply Rated Input Power of the Hood 222W 220-240V~ 50Hz Total Pressure Efficiency Rated Input Power of the Main Motor ≥23% 220W ≤2W Nominal Pressure 340Pa Maximum Input Power of the Light 895×399×... - Page 7 Range Hood Installation Warning 1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels,the discharge of air must fulfill the requirements of local regulations 2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is prohibited, as it will result in loose pipe and accidental drops.
- Page 8 Range Hood Hole size of the exhaust pipe Φ200mm Installation Figure Note: All data units in the following figures are in mm Walls Figure 1 Movable decorative panel (homemade) Ceiling hole sizes (Projection size of the hood top) 1. Determine the position: Preliminary dimensions of cabinet is shown as Figure 1, ceiling hole size is shown in .
-
Page 9: User Manual
Range Hood c. Drill hole through the wall: Determine the location of the aluminum foil exhaust pipe against the wall and draw the drilling range (i.e. a circle slightly larger than the pipe OD). Then use a long drill bit to drill through the wall. Pay attention to the wall structure and material, so as not to destroy other parts of the wall. -
Page 10: Maintenance
Range Hood In the standby status, press the airflow button, the smoke deflector will be unfolded, and the fan will run at “Level-2”; then repressing the airflow button, the fan will run at “Level-1”, and then press again to shut down the fan. Air Flow Rate Press the light button to turn on the light and repress to turn it off. -
Page 11: Removal Of Components
Range Hood Notice ●The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its cleanness & efficiency and extend its service life. We recommend that: Clean the exhaust fume collecting hood and hood body after each cooking. To ensure smooth discharge of fumes, the filter screen shall be cleaned regularly according to actual situations. - Page 12 Range Hood Removal of switch Deflector Small cover plate Switch assembly Take out the switch assembly and unplug the Keep pressing the cleaning icon to unfold smoke deflector, and unplug the power plug. Removing connection line for maintenance and replacement. the two screws on the small cover plate by a screwdriver, and take the small cover plate as per the direction of the arrow.
- Page 13 Range Hood Removal of the whole body Removal steps 1. Keep pressing the cleaning icon to lock the smoke deflector in the open condition. Then take off the filter screen according to filter removal steps and unscrew four screws on the retaining ring. 2.
-
Page 14: Circuit Diagram
Range Hood Circuit diagram Terminal box Control circuit blue blue yellow brown orange gray Green/Yellow black blue brown blue 220-240V~ Green/Yellow E Troubleshooting of General faults Warning Fault Cause The power plug is not connected No response after pressing any button 1. - Page 15 Model A670 Edition: A/ 0 Publication Date： August,1,2017...
