Summary of Contents for Robam CXW-220-A817

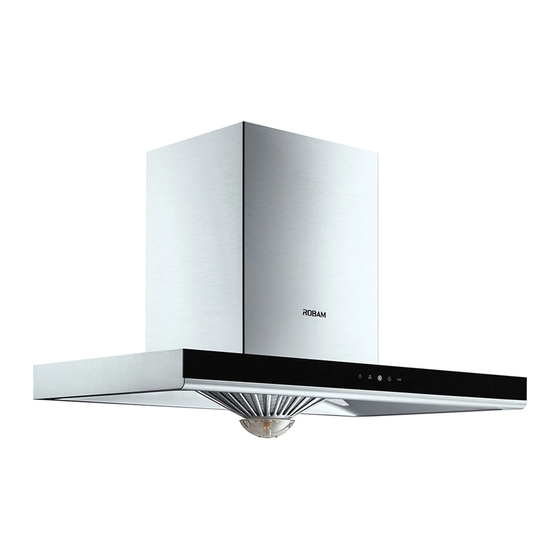

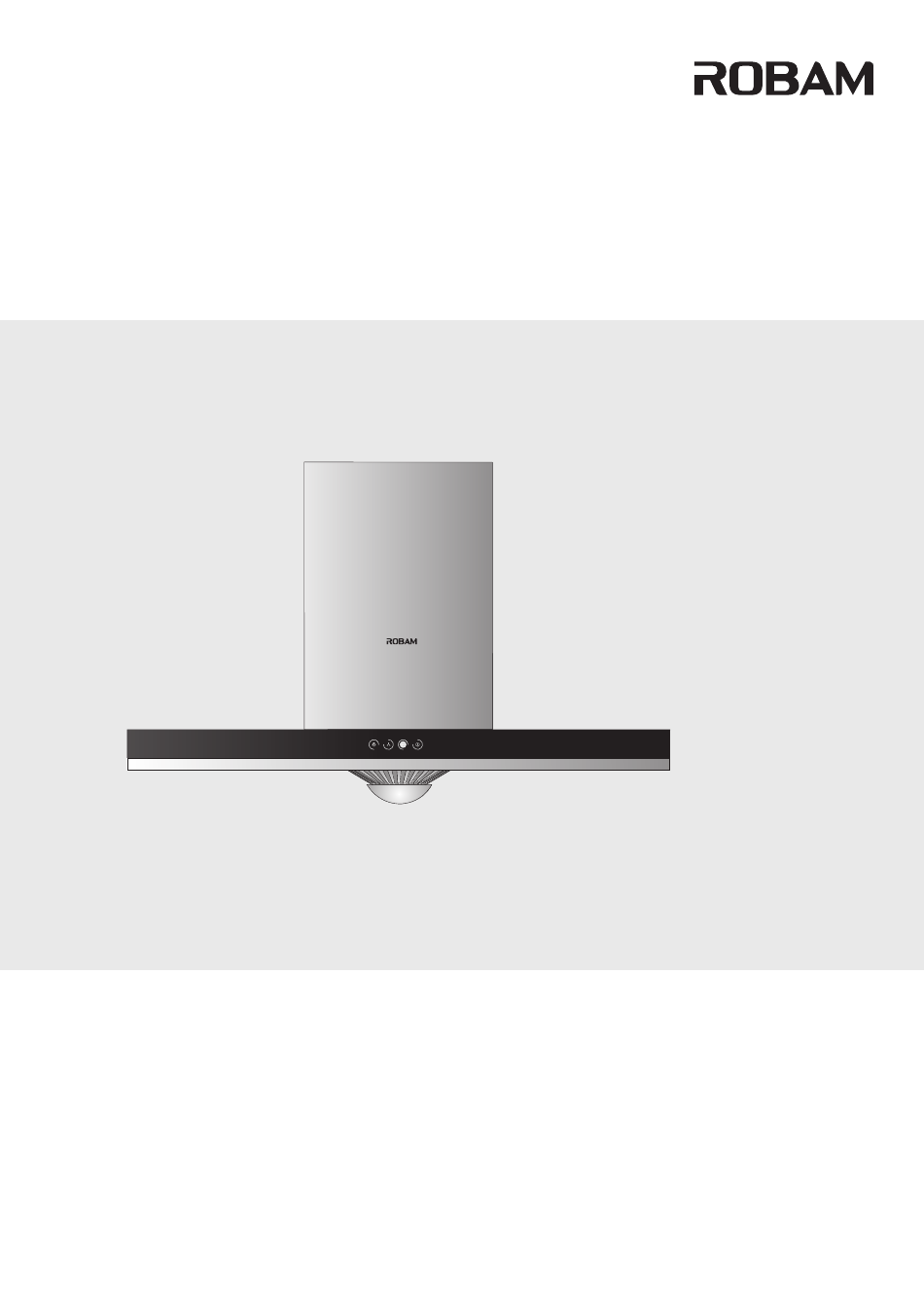

- Page 1 User Manual A8 17 Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can send e-mail to overseas@robam.com, request for an electronic manual. CXW-220-A817 CXW-220-A815 Range Hood...
-
Page 2: Table Of Contents
CONTENTS Safety Precaution........................1 Important Information......................4 Product Overview........................5 Packing List..........................5 Installation ..........................6 User Manual..........................Maintenance...........................9 Removal of Components.......................10 Circuit Diagram........................12 Troubleshooting of General faults..................13... -
Page 3: Safety Precaution
Touch Disassembly Execution Earthed Electric Shock Please use this product according to manual strictly, or ROBAM shall not take any responsible Warning caused by improper operation. Danger Don't allow children or weakling to use range hood separately, or it may cause electric shock or other accident. - Page 4 Range Hood Danger Unplug before cleaning installing or maintaining avoiding from electric Strict shock Execution Please turn off range hood immediately if pan got fire (range hood shall aggravate fire if it’s working) and extinguish fire by effective action. Strict For example, cover flame by metal cover, turn off gas valve immediately Execution and remove inflammable things.
- Page 5 Range Hood Warning All operation must comply with our safety guidelines as well as local safety regulations. Strict Execution There shall be adequate ventilation of the room when the range hood is Strict used at the same time as appliances burning gas or other fuels. Execution This appliance just for household use only.And it’s not allowed to exhaust dangerous or explosive matter or air.
-
Page 6: Important Information
Range Hood Notice Because the installation is difficult and hood is heavy, the installation Strict shall be executed by professional person based on manul. Execution Don't break electric wire or other invisible equipment when cutting Strict something or drilling holes on ceiling. Execution When range hood is using in well sealed building, it should have air inlet Strict... -
Page 7: Product Overview
Range Hood Product Overview Technical Specification ≤58dB Noise CXW-220-A817 Model CXW-220-A815 Rated Power Input A817:222W A815:224W Power Supply Rated Main Motor Power Input 220-240V~ 50Hz 220W ≤2W A817: Total Pressure Efficiency ≥22% Lamp Power (max) A815:≤ 2W×2 Nominal Wind Pressure 220Pa A817:895×500×... -
Page 8: Installation
Range Hood Installation Warning 1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels, the discharge of air must fulfill the requirements of local regulations. 2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is prohibited, as it will result in loose pipe and accidental drops. - Page 9 Range Hood Installation ● Determine the position The size of removable baffle (reference: 430mm) can be adjusted according to the actual situations. The installation pitch of holes is shown in Figure 2. The hood body shall be centered vertically and kept level. Ceiling hole size is shown in Figure 3. The hood shall be installed right above the hob.
- Page 10 Range Hood ●Adjust drawing panel Pull the two brackets of the drawing panel upwards to an appropriate height and then pull out the drawing panel by holding both sides. Remove the protective film (excluding cold plate materials) on the drawing panel and insert it along the gap between the main hood panel and the housing.
-
Page 11: User Manual
Range Hood User Manual Switch Control Panel Plug in and 3 ticks from the buzzer will indicate qualified installation. Now the hood is in standby. Under standby mode, press the “Lighting” button once to turn on the light and repress to turn off. Each press will trigger a tick from the buzzer. -
Page 12: Removal Of Components
Range Hood Notice ● The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its cleanness & efficiency and extend its service life. We recommend that: Clean the exhaust fume collecting hood and hood body after each cooking. To ensure smooth discharge of fumes, the filter screen shall be cleaned regularly according to actual situations. - Page 13 Range Hood Lamp image Lamp information 25.6 Lamp Type(A817) Rectangular LED A817 Lamp Type(A815) Round LED 29.7 Max Power A815 Voltage 12VDC see the lamp image Dimension Removal of switch ●Removal of A817 switch After removing the spotlight, remove the two screws on the switch with a cross screwdriver and move the switch assembly diagonally upward to take it out from the lamp hole for repair and replacement.
- Page 14 Range Hood Removal steps of the whole range hood Removal steps 1. Pull out the plug; 2. Unscrew the four screws from the back of the main hood panel. Tilt the panel forward to a certain angle, and then pull it up forcibly; 3.
-
Page 15: Circuit Diagram
Range Hood Circuit diagram A817 Circuit Diagram Terminal box Control circuit blue blue yellow orange grey Green/Yellow black blue brown brown blue 220-240V~ Green/Yellow E A815 Circuit Diagram Terminal box blue Control circuit blue blue yellow orange grey Green/Yellow black blue brown brown... - Page 16 Edition: A/2 Publication Date： May,15,2017...
