1.1.3. External Antenna Connector

The external antenna connects to the BNC external antenna connector (Figure 1-3).

1.1.4. Mounting Bracket

The mounting bracket (Figure 1-3) connects the modem to a standard pole/adapter (Figure 1-4).

1.1.5. Cables

The HPT435 package includes standard communication and power cables for configuring the
modem and providing a power source to the modem.
Data-Ser Cable, ODU-7/DB15 (6ft/1.8m)
p/n 14-578108-01
Data-Ser Cable, DB9/DB15 (6ft/1.8m)
p/n 14-578110-01
Power Cable, PL-700/Battery Clips (8.2 ft./2.5m)
p/n 14-578111-01
www.javad.com
Antenna
Connector

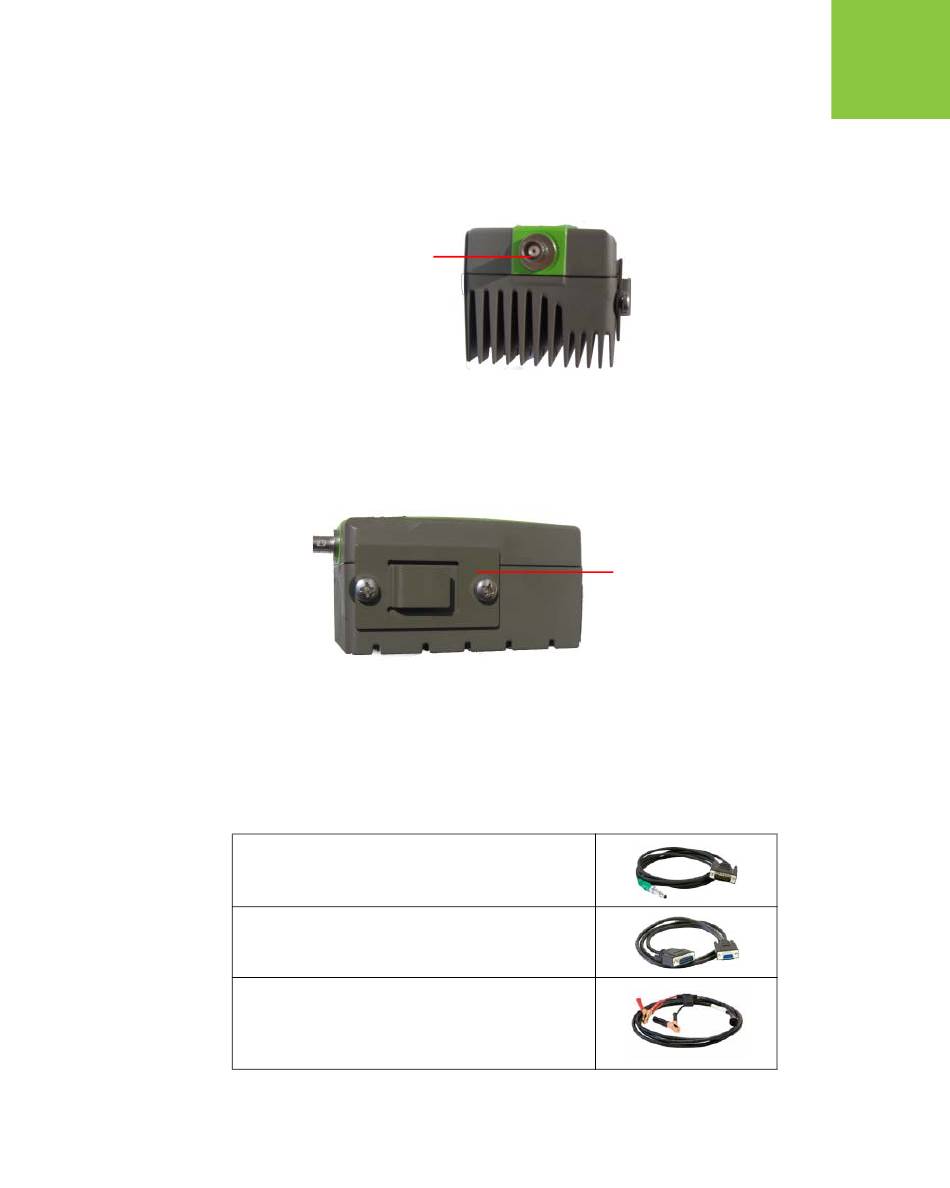

Figure 1-3. HPT435 back side
Figure 1-4. Mounting Bracket
Getting Acquainted
External Antenna Connector
Mounting
Bracket
