HPT435 as a Base Configuration

3.1. HPT435 as a Base Configuration
1. Connect the TRIUMPH-1 receiver to computer. See for details the TRIUMPH-1
Operator's Manual.
2. Connect the external HPT435 UHF radio to receiver's port B with cable Accessory Data-
Ser cable, ODU-7/D15 (1.8 m) p/n 14-578108-01. See "Connecting HPT435 and
TRIUMPH-1" on page 18.
3. Power the HPT435. You can use the rechargeable battery type Power Sonic PS-12400 or
similar and Accessory Power Cable, PL-700/Battery Clips (2.5m), p/n14-578111-01.
Warning: Powering HPT435 please observe polarity!
4. Turn on the TRIUMPH-1 receiver.
5. Start ModemVU.
6. Select HPT435 and click OK (Figure 3-2).
26

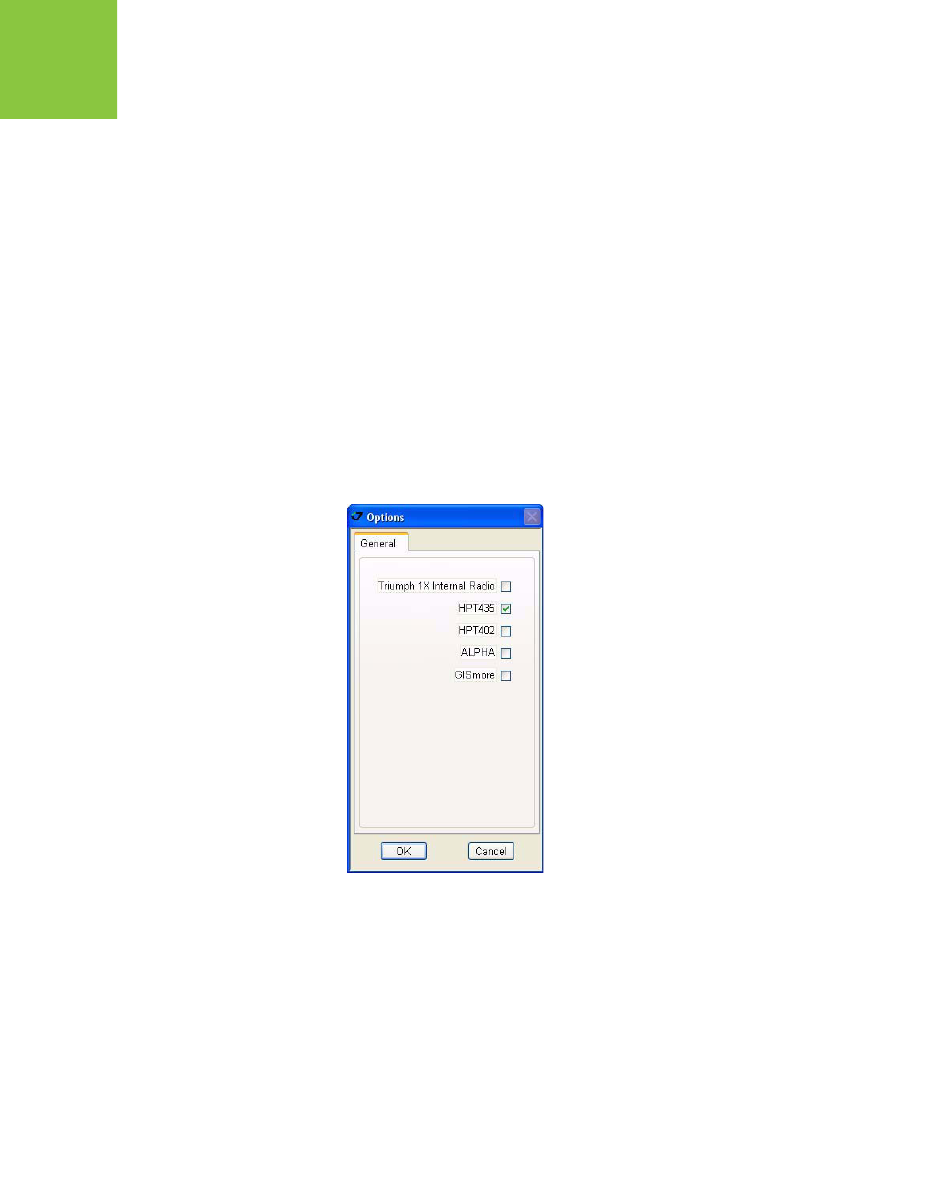

Figure 3-2. ModemVU. Options window
