1.1.3. External Antenna Connector

The external antenna connects to the BNC external antenna connector placed on the back side of
HPT102.

1.1.4. Cables

The HPT102 package includes standard communication and power cables for configuring the
modem and providing a power source to the modem.
Access Data-Ser-Pwr Cable, DB9/DB15/SAE (6ft/
1.8m)
p/n 14-578108-02
Access Data-Ser-Pwr Cable, ODU-7/DB15/SAE (1,8m)
p/n 14-578110-02

1.1.5. Mounting Bracket

The monting bracket p/n 10-578102-01 (Figure 1-3) allows connecting the modem to a standard
pole/adapter.
www.javad.com

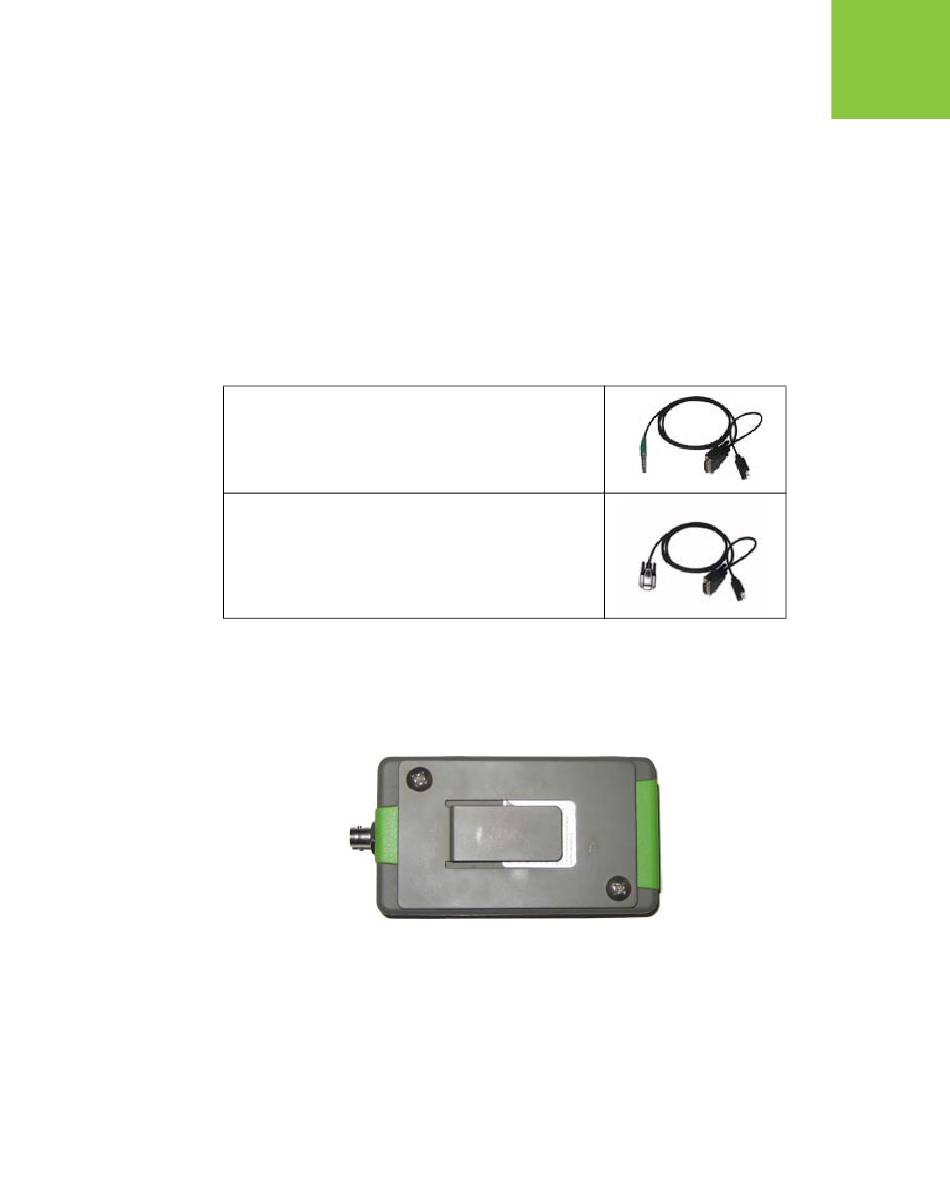

Figure 1-3. Mounting Bracket
