Connecting HPT435 and Computer

Power supply requirements
2.4. Connecting HPT435 and Computer
To configure, or maintain HPT435, you need to connect the modem and a computer using an
Data-Ser Cable, DB9/DB15 (6ft/1.8m) p/n 14-578110-01 and start ModemVU.
Once you have established a connection between the modem and the computer, you will be able
to:
• Configure the modem and its components
• Send commands to the modem
• Use ModemVU to load new firmware to the modem

2.5. Connecting HPT435 and TRIUMPH-1

Connect the external HPT435 UHF radio to receiver's port B with cable Accessory Data-Ser
cable, ODU-7/D15 (1.8 m) p/n 14-578108-01.
Note:
The TRIUMPH-1 port B is optional. Make sure you have such option purchased.
18

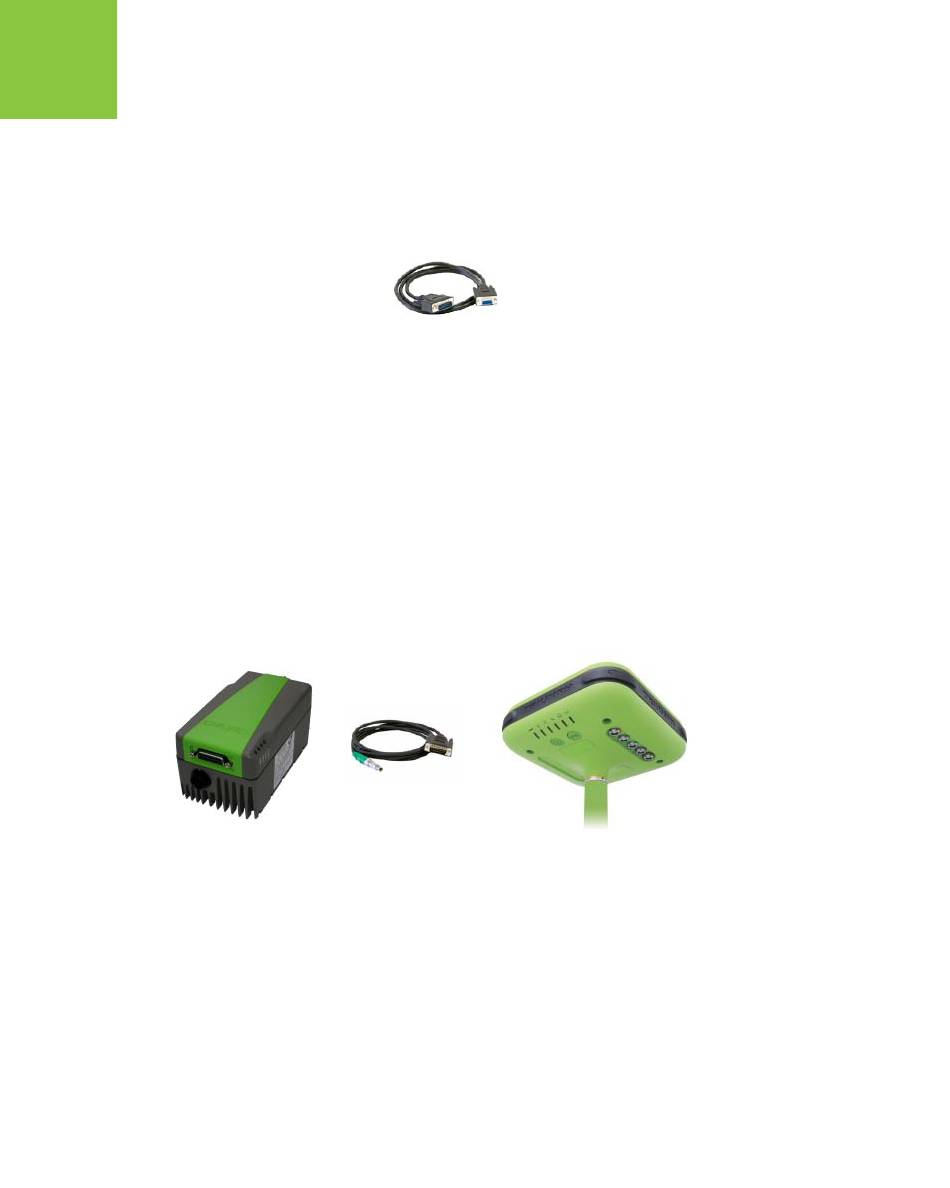

Figure 2-3. Data-Ser Cable, DB9/DB15
+
Figure 2-4. Connecting HPT435 and TRIUMPH-1
+
