Javad HPT435 Series Operator's Manual page 28

Configuration Examples
HPT435 as a Base Configuration
10. Start TriVU. Select port the TRIUMPH-1 receiver is connected to and click OK (Figure 3-
5).
11. Click Configuration Receiver.
12. In the Base tab click the Get from receiver button. Reference geodetic coordinates appear.
Click Apply (Figure 3-6).
28

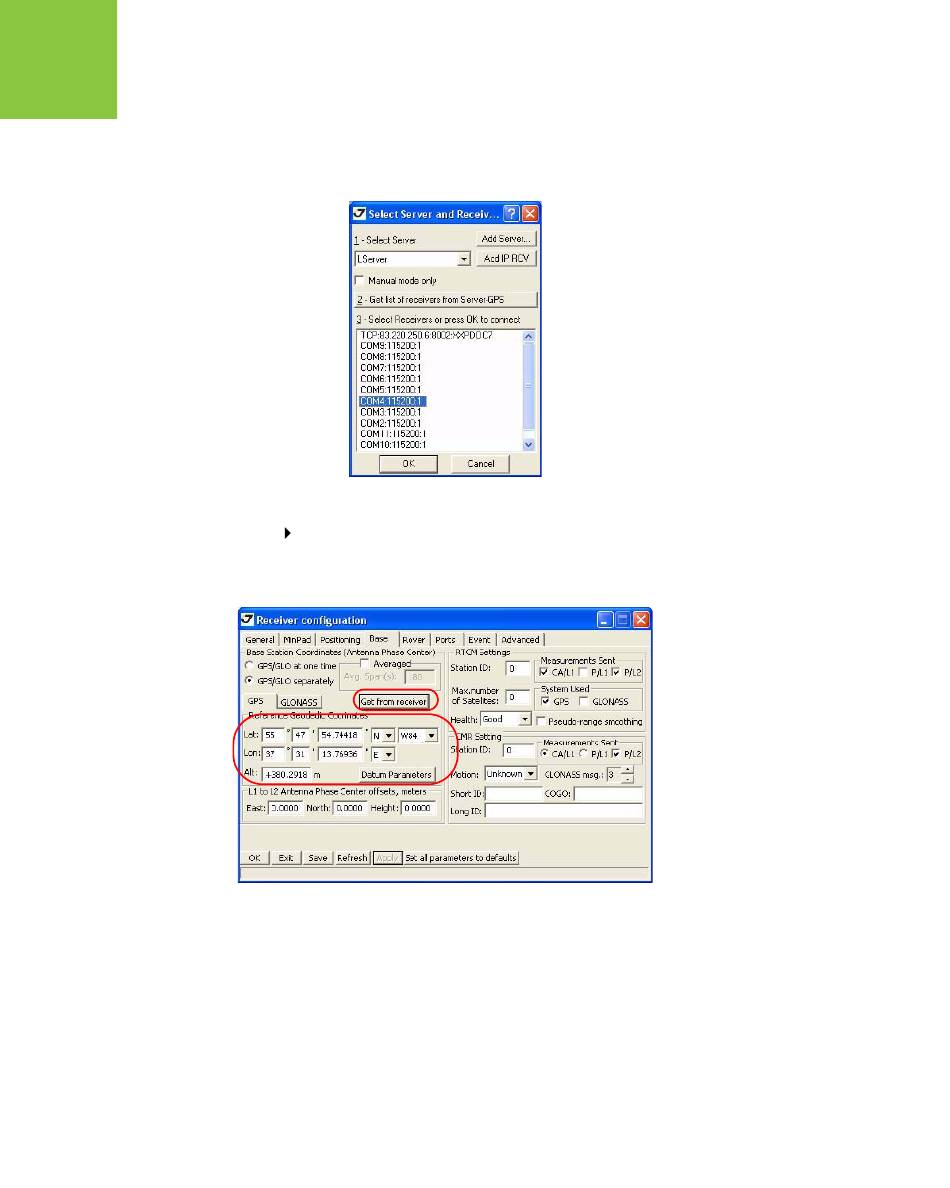

Figure 3-5. TriVU. Selecting port
Figure 3-6. Base tab
