Javad HPT435 Series Operator's Manual page 30

Configuration Examples
HPT435 as Repeater Configuration
3. Select the port receiver is connected to and click Connect (Figure 3-9).
4. In the Radio Link tab set the following parameters, and click Apply (Figure 3-10):
• Protocol: Simplex Repeater
• Frequency (MHz): 406 to 470
• Output power (dBm/W): 45/35.0
• Modulation Type: DQPSK
• Link Rate: 19200
• Link Space: 25.0 kHz
• Forward Error Correction: ON
• Scrambling: ON
5. Quit ModemVU by clicking Exit button.
30

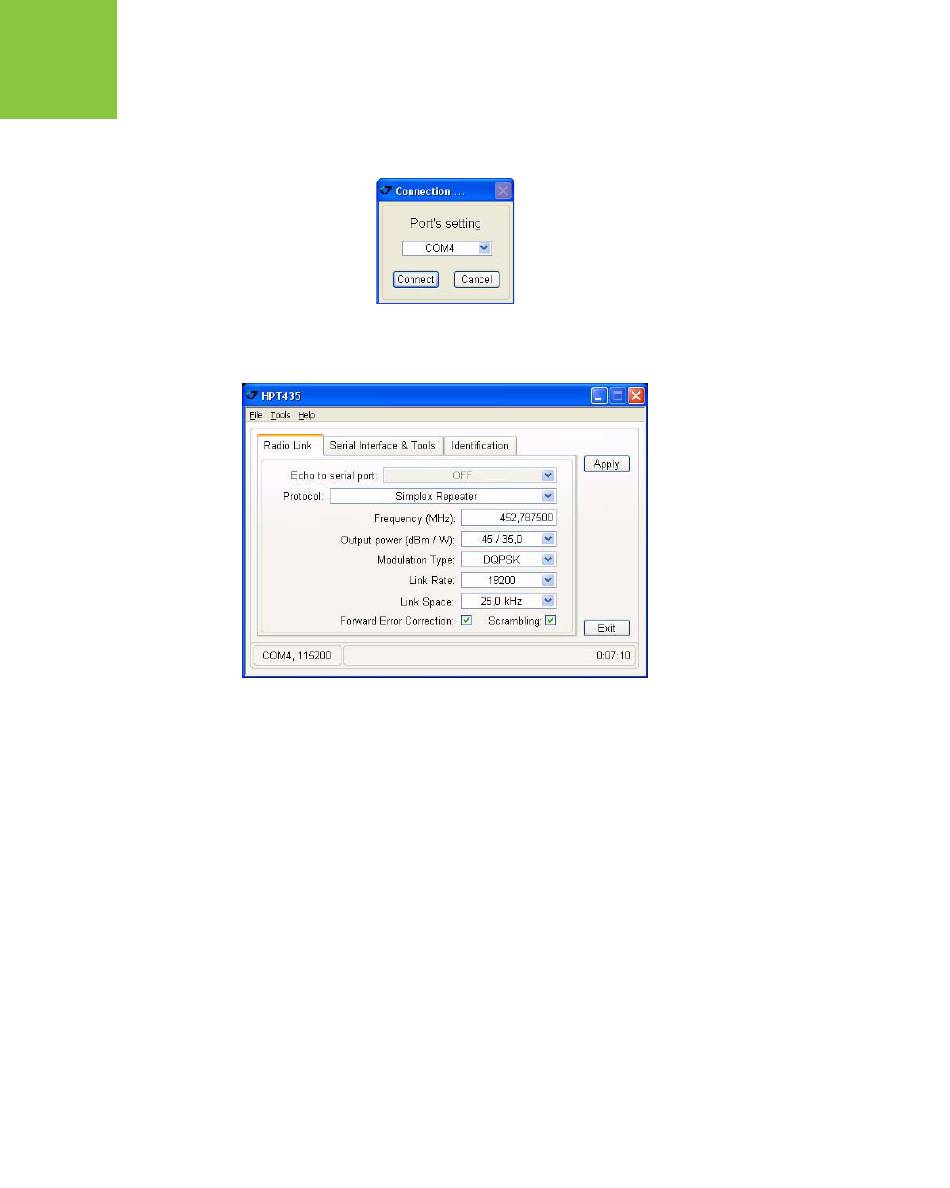

Figure 3-9. ModemVU. Connection
Figure 3-10. Radio Link tab settings
