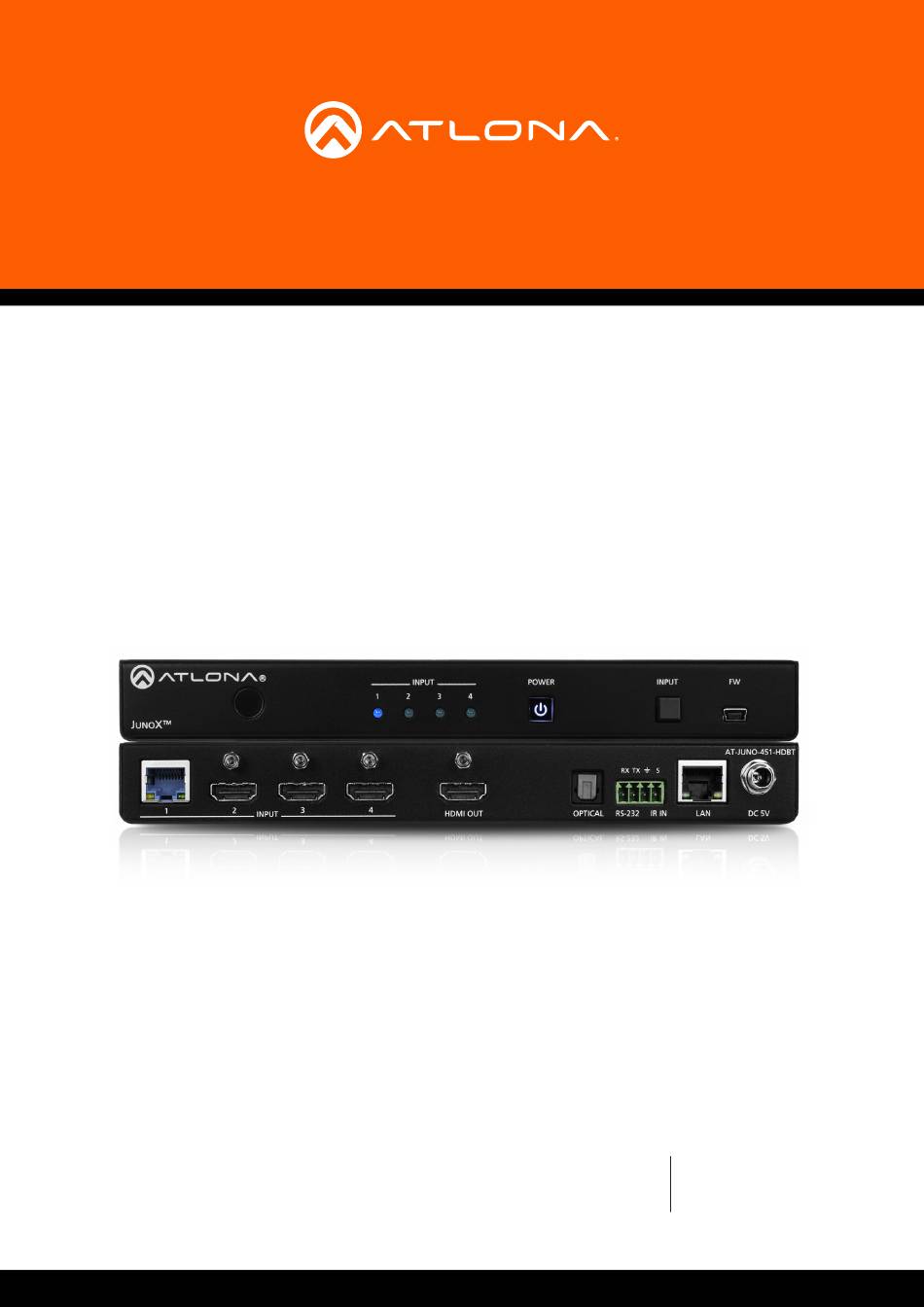

- Page 1 4K / UHD Four-Input HDMI and HDBaseT Switcher ™ with Auto-Switching and Return Optical Audio Atlona Manuals AT-JUNO-451-HDBT Switchers...
- Page 2 Version Information Version Release Date Notes 6/18 Initial release AT-JUNO-451-HDBT...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 The information bubble is intended to alert the user to helpful or optional opera- product. tional instructions in the literature accompanying the product. 11. Only use attachments/accessories specified by Atlona. 1. Read these instructions. 12. To reduce the risk of electric shock and/or damage 2. Keep these instructions.
-
Page 7: Table Of Contents
Table of Contents Introduction Features Package Contents Panel Description IR Remote Control Installation Connection Instructions Connection Diagram IP Configuration Setting the IP Mode Setting the IP Address Using Commands Setting the IP Address using the Web GUI Basic Operation LED Indicators Input Switching Manual Switching Auto Switching... -
Page 8: Introduction

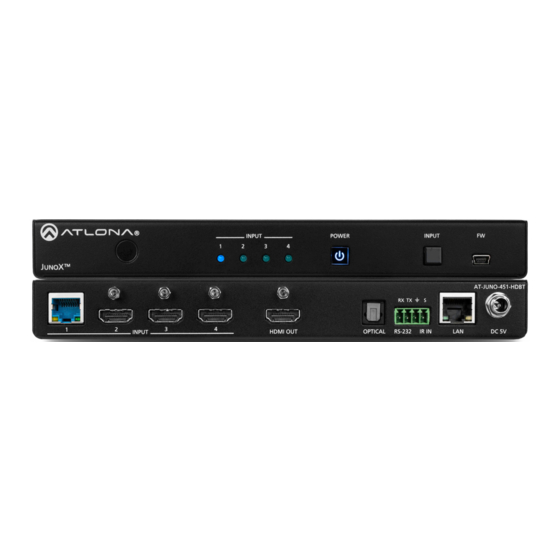

Ethernet over distances up to 330 feet (100 meters). It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The JunoX 451 HDBT is ideal for receiving 4K HDR over HDBaseT from an Atlona Opus™... -
Page 9: Panel Description
Panel Description AT-JUNO-451-HDBT INPUT POWER INPUT AT-JUNO-451-HDBT RX TX INPUT HDMI OUT OPTICAL RS-232 IR IN DC 5V IR Window OPTICAL Receives IR signals from the included IR remote. Connect an optical audio cable from this TOSLINK port to an audio output device. This port is part of Input Indicators the Audio Return Channel (ARC): audio from the These LED indicators glow solid blue to indicate the... -
Page 10: Ir Remote Control
IR Remote Control The AT-JUNO-451-HDBT includes an IR remote control unit, allow the control of the AT-JUNO-451-HDBT from a remote location. Power Video All On Video 1 Video 2 Input Audio Vol + Vol - Mute SW-R1 On / Off buttons Press the On button to power-on the unit. -
Page 11: Installation
Installation Connection Instructions 1. Connect an HD/UHD source to each of the three HDMI inputs (INPUT 2 - INPUT 4). 2. Connect an optical audio cable from the OPTICAL port to a sound bar or other audio output device. 3. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN). Ethernet cables should use EIA/ TIA-568B termination: 4. -
Page 12: Connection Diagram
Installation Connection Diagram AT-UHD-PRO3-44M Media Player P BOX Set-Top Box AT -UH Blu-ray Player Media Player AT-JUNO-451-HDBT -H DB -4 51 IN PU W ER IN PU Display AV Receiver AT-JUNO-451-HDBT... -
Page 13: Ip Configuration
Installation IP Configuration The AT-JUNO-451-HDBT is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Use an IP scanner, along with the MAC address on the back of the unit, to identify both the unit and its IP address on the network. If a static IP address is desired, the unit can be switched to static IP mode. -
Page 14: Setting The Ip Address Using The Web Gui
2. Log in, using the required credentials. The factory-default username and password are listed below: Username: root Password: Atlona 3. Click the System tab. 4. Click the IP Mode toggle to switch between the DHCP and STATIC IP setting. When set to STATIC IP, the IP, Netmask, and Gateway fields can be modified. -
Page 15: Basic Operation
Basic Operation LED Indicators The LED indicators on both the front of the unit provide basic information on the current status of the AT-JUNO-451- HDBT. Description POWER Blue • Unit is receiving power. • Unit is not powered. • Press the POWER button to power the unit. •... -
Page 16: Input Switching
Basic Operation Input Switching Switching between any of the four input ports can be performed either manually or automatically. The following section covers both methods. Manual Switching 1. Press and release the INPUT button on the front panel to cycle between INPUT 1, INPUT 2, INPUT 3, and INPUT 4 HDMI inputs. -
Page 17: Auto Switching
Basic Operation Auto Switching Auto-switching can also be used to automatically select an input. Auto-switch is enabled by default and must be enabled for this feature to work. When auto-switching is enabled, the AT-JUNO-451-HDBT will automatically switch inputs, based on the presence of an input signal. 1. -
Page 18: Hdcp Settings
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below: Username: root Password: Atlona 3. Click A/V Settings in the menu bar. 4. Click the Input 1 toggle switch, under HDCP Settings, and set it to the OFF position. This will instruct the source device to send non-HDCP content, if possible. -
Page 19: Controlling Audio
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below: Username: root Password: Atlona 3. Click A/V Settings in the menu bar. 4. Locate the Audio section. -
Page 20: Using The Audio Return Channel (Arc)
Basic Operation 5. Click the Toslink toggle switch to the OFF position. When set to the OFF position, the audio on the OPTICAL port will be muted. To re-enable the audio for the OPTICAL output, set the toggle switch to the ON position. Using the Audio Return Channel (ARC) The Audio Return Channel (ARC) allows audio to be sent upstream, from the display device, to the AT-JUNO-451- HDBT over an HDMI cable. - Page 21 4. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below: Username: root Password: Atlona 5. Click A/V Settings in the menu bar. 6. Locate the Audio section.
-
Page 22: Switching Between Arc And Hdmi Inputs
Basic Operation Switching between ARC and HDMI inputs Switching between HDMI inputs and ARC should be performed using a control system. The following describes the setup process. 1. Controlling the AT-JUNO-451-HDBT can be accomplished through either IP or RS-232. • If using RS-232, refer to RS-232 / IR Control (page 25) for more information. -
Page 23: Managing Users
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below: Username: root Password: Atlona 3. Click the Config tab. 4. Click the Add button, under the Edit column. -
Page 24: Editing / Deleting Users
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below: Username: root Password: Atlona Editing Users a. Click Config in the menu bar. b. Click the Edit button next to the user to be changed. -
Page 25: Advanced Operation
Advanced Operation RS-232 / IR Control The AT-JUNO-451-HDBT provides an RS-232 / IR port, allowing the unit to be managed using a control system. RS-232 is serial data protocol that allows Data Terminal Equipment (DTE) devices, such a computer or control system, to communicate with Data Communication Equipment (DCE) devices, such as the AT-JUNO-451-HDBT or a 1 2 3 4 5 display. -
Page 26: Cable Assembly
Advanced Operation Cable Assembly When connecting a DTE device to a DCE device, a straight-through cable should be used. A straight-through cable is wired in such a way that the pins on one side of the cable are connected to the corresponding pins on the opposite side of the cable, as shown in the table below. -
Page 27: Configuration
The factory-default username and password are listed below: Username: root Password: Atlona 2. Click RS-232 in the menu bar. 3. Select the proper baud rate, data bit, parity, and stop bit settings. These settings must correspond with the control system RS-232 settings. -
Page 28: Ir Control
Advanced Operation IR Control The illustration below, shows an example of how electrical IR, from either a control system or the included IR remote, can be used to control the AT-JUNO-451-HDBT. To use electrical IR from a control system, the IR commands from the included remote must be “learned”. The AT-JUNO-451-HDBT only supports IR codes from the included IR remote control unit. -
Page 29: The Web Gui
The Web GUI Introduction to the Web GUI The AT-JUNO-451-HDBT includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-JUNO-451-HDBT, as it provides intuitive management of all features. The AT-JUNO-451-HDBT is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. -
Page 30: Menu Bar
The Web GUI 7. The Info page will be displayed. 8. Click Logout, on the far-right side of the menu bar, to log out of the web GUI and return to the Login page. Menu Bar The dark-colored bar, near the top of the screen, is the menu bar. When the mouse is moved over each menu element, it will be highlighted in light orange. -
Page 31: Info Page
Software Version The version of firmware that the AT-JUNO-451-HDBT is running. Always make sure to check the AT-JUNO-451- HDBT product page, on the Atlona web site, for the latest version of firmware. On-Time (h-m) The time elapsed since the unit was last powered-on. Turning the unit “off”, using the PWOFF command, will not reset this field. -
Page 32: A/V Settings Page
The Web GUI A/V Settings page Video Input Selection Click this drop-down list to select the desired input. Setting Port Input 1 INPUT 1 (HDBaseT) Input 2 INPUT 2 Input 3 INPUT 3 Input 4 INPUT 4 Auto Switch Set the Auto Switch mode toggle to ON to enable auto-switching. When auto-switching is enabled, the switcher will automatically switch to the previous input, if a signal loss is detected on the current input. -
Page 33: Audio
The Web GUI Audio Output 1 Mutes or un-mutes the HDMI audio output. Set the Output toggle to OFF to disable HDMI audio on the output. The default setting is ON. HDMI Input audio breakout Sets the audio source used by the OPTICAL port on the unit. The default setting is SPDIF. Setting Description SPDIF... -
Page 34: Rs-232 Page
The Web GUI RS-232 page RS-232 Parameter Setting Click each of these drop-down boxes to select the desired baud rate, data bits, parity bit, and stop bit. Setting Description Baud rate Sets the baud rate. The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200. -
Page 35: Edid Page
The Web GUI EDID page EDID Settings Click these drop-down lists to select the desired EDID to be used for each input. Input 1 = INPUT 1, Input 2 = INPUT 2, Input 3 = INPUT 3, Input 4 = INPUT 4. The source device will use the information in the EDID, before sending A/V data to the sink device. -
Page 36: Config Page
Config page Old Username This field cannot be changed. “root” is the administrator user. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes. -
Page 37: System Page
The Web GUI System page Network IP Mode Click this toggle to set the IP mode of the AT-JUNO-451-HDBT. The default setting is DHCP. Available settings: STATIC IP, DHCP. Enter the IP address of the AT-JUNO-451-HDBT in this field. This field will only be available if IP Mode is set to STATIC IP. -
Page 38: System
The Web GUI System Power Under normal operation conditions, this toggle is set to ON. Click this toggle to OFF, to turn the AT-JUNO-451-HDBT “off”. When “off”, the POWER LED indicator on the front panel will turn red. The PWOFF and PWON commands can also be used to control the power state. -
Page 39: Hdbt Page
The Web GUI HDBT page HDBaseT Zone The AT-JUNO-451-HDBT has only a single HDBaseT output. Therefore, this drop-down list is disabled. Start Click the Start button to begin the HDBaseT testing process. During testing, the button text will change to “Stop”. Click the Stop button to halt the HDBaseT testing process. -
Page 40: Appendix
Appendix Updating the Firmware Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-JUNO-451- HDBT firmware can be updated using a USB-A to USB mini-B cable. -
Page 41: Using Usb
Appendix Using USB Requirements: • AT-JUNO-451-HDBT • Firmware file • Computer running Microsoft Windows • USB-A to USB mini-B cable 1. Disconnect power from the AT-JUNO-451-HDBT. 2. Press and hold the INPUT button while connecting power to the AT-JUNO-451-HDBT. 3. Release the INPUT button. The POWER button will glow solid red, indicating that the AT-JUNO-451-HDBT is in update mode. -
Page 42: Default Settings
Default Input 2 Default Input 3 Default Input 4 Default EDID Saved Output 1 Config Username (default) root Password (default) Atlona System Network IP Mode DHCP Static IP Address (default) 192.168.1.254 Netmask 255.255.255.0 Gateway 192.168.1.1 Telnet Port Telnet Login Mode... -
Page 43: Specifications
Appendix Specifications Connectors, Controls, and Indicators INPUT (HDBaseT) 1 - RJ45 INPUT (HDMI) 3 - Type A, 19-pin female OUTPUT 1 - Type A, 19-pin female OPTICAL 1 - TOSLINK™ RS-232 / IR 1 - 5-pin captive screw 1 - RJ45 DC 5V 1 - Barrel connector, 5.5 mm, locking 1 - Type mini-B, 5-pin female... - Page 44 Appendix Signal Maximum TMDS Clock 600 MHz HDBaseT 18 Gbps HDMI HDCP Temperature Fahrenheit Celsius Operating 32° to 122° 0° to 50° Storage -4° to 140° -20° to 60° Humidity (RH) 20% to 90%, non-condensing Power Consumption 6.6 W Idle Consumption 5.9 W Supply Input: 100 - 240 V AC, 50/60 Hz, Output: 5 V DC...
-
Page 45: Index
Index Password default Audio muting RS-232 settings Configuration See IP configuration Connection diagram Safety information instructions Settings Contents auto-switching package HDCP Customer support Specifications Default setttings Updating firmware 27, 28 Description front / rear panel Warranty Web GUI EDID presets saving FCC statement Features Firmware... - Page 46 • 408.962.0515 • 877.536.3976 © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
