- Page 1 Atlona 4 Input HDMI Switcher with Auto Switching AT-HD4-V41 & AT-HD4-V42 AT-HD4-V41 AT-HD4-V42 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
Hyperterminal ....................7 a. Connection ....................7 b. Command ....................8 10. Installation Diagram ....................9 11. Specifications ....................10 12. Safety Information ....................11 13. Warranty ....................12-13 14. Registration ....................13 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona 4 input HDMI switchers are a great product for homes with multimedia systems and not enough HDMI input options. The Atlona switchers support an Audio Return Channel and a 100Mbps Ethernet port for HDMI Ethernet Channel (HEC), reducing the amount of wires necessary for compatible systems. The Atlona switcher gives you a high digital performance connection, between four sources and a video display, without signal loss. -

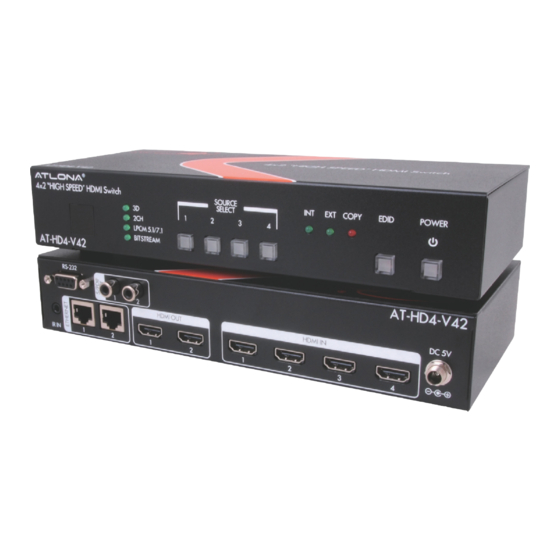

Page 4: Panel Descriptions
4X1 “HIGH SPEED” HDMI SWITCH SOURCE LEARN EDID POWER SELECT LPCM 5.1/7.1 BITSTREAM AT-HD4-V41 AT-HD4-V41 RS-232 S/PDIF 1. Infrared Sensor for the remote control DC 5V HDMI IN HDMI OUT 2. Green LED indicators will light up when receiving a signal status 3. -
Page 5: Arc
EDID mode. Once you’re in external EDID, press and hold the EDID button until the red copy LED illuminates. Power cycle the switcher and the display’s EDID will be used. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Step By Step Guide
23 feet (7 meters) of where you will be using the remote. Note: The supplied infrared module will allow you to control the Atlona switcher when placed in a cabinet. 4. Plug the power cord into the DC 5V labelled port and then plug the other end into the wall. -
Page 7: Hyperterminal
RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned. Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used ---- Not used ---- Not used Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Command
Each command or feedback is terminated with a carriage return. Note: If the command fails or is incorrect the feedback should be “Command FAILED” Note: To exit ARC mode select an input (ex. x2AVx1) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Installation Diagram
4X2 “HIGH SPEED” HDMI SWITCH SOURCE LEARN EDID POWER SELECT Game Console LPCM 5.1/7.1 BITSTREAM Satellite Receiver AT-HD4-V42 Game Console RS-232 AT-HD4-V42 DC 5V HDMI IN HDMI OUT IR IN HEC Pass Through Display 1 Internet Router Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 10: Specifications
Specifications Bandwidth 6.75Gbps Ports AT-HD4-V41 AT-HD4-V42 Video input 4 x HDMI 4 x HDMI Video output 1 x HDMI 2 x HDMI Audio output 1 x S/PDIF 2 x S/PDIF Ethernet 1 x LAN 2 x LAN IR IN 1 x 3.5mm 1 x 3.5mm... -
Page 11: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 12: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 13: Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com . Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
