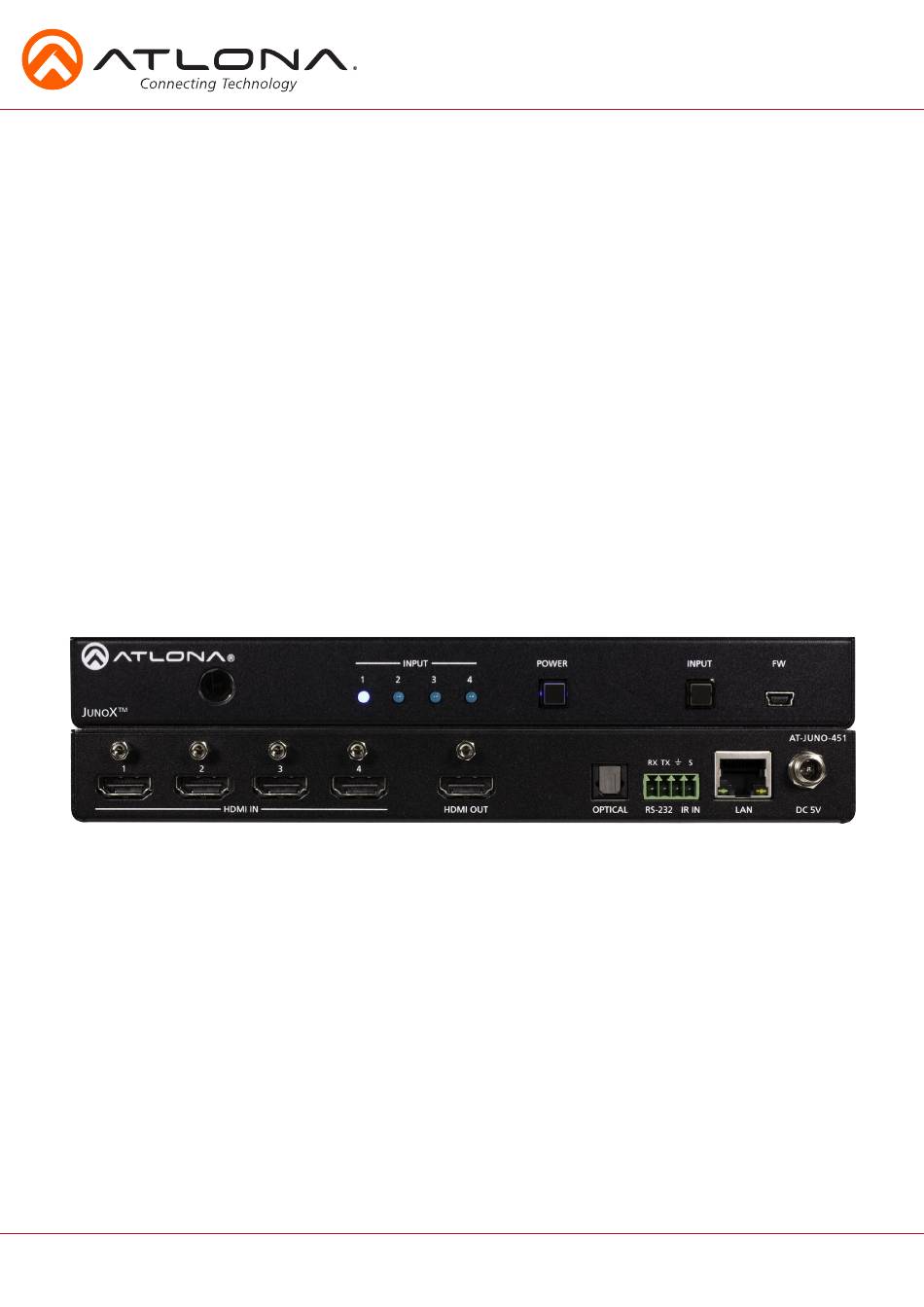

- Page 1 4K HDR Four-Input HDMI Switcher with Auto-Switching and Return Optical Audio AT-JUNO-451 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
Connection ....................10 c. Commands ....................11 d. IP Commands ....................12 11. Connection Diagram ....................13 12. Specifications ....................14 13. Safety ....................15 14. Warranty ....................16-17 15. Registration ....................17 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona JunoX™ 451 is a 4x1 HDMI switcher for high dynamic range (HDR) (AT-JUNO-451) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The JunoX 451 is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. -
Page 4: Panel Descriptions
3. INPUT button - Use to switch between inputs 4. FW port: Firmware update port, connect a mini USB to USB A cable to a computer Firmware is downloadable through http://www.atlona.com/product/AT-JUNO-451/ 5. HDMI IN - Connect HDMI sources to these ports 6. -
Page 5: Captive Screw
The IR IN is connected by a ground and Signal (S) a signal cable. The recommended use of Ground ( ) this port is with a 3rd part control system. Atlona recommends using a AT-LC-CS-IR- IR IN for easy connection. (sold separately) Remote Control 1. -
Page 6: Webgui
GUI IP Address: may be found using an IP scanner software (e.g. Advanced IP Scanner) *Atlona does not assume responsibility for damage caused by other programs installed into a computer, verify programs before installing* A login screen will appear . For the first login to AMS, (this is the same log in for admin and general users) the username is “admin”... - Page 7 Video Input Selection Displays current input and allows the input to be selected manually Auto Switch Auto Switch: Toggles auto switching on/off Audio Output 1 Turns output audio on/off Turns audio return channel on/off Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 8 Saves any connected display’s EDID to one of the four EDID memories of the JUNO-451 - Select the memory number to save the current output’s EDID to and press the save button at the bottom of the page. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 9 Reset to Default - Reset the device to factory settings Firmware Update - Use this feature to find and load the MCU firmware to the switcher Note: Firmware can be found and downloaded from http://www.atlona.com/product/AT-JUNO-451/ page under the firmware tab Toll free: 1-877-536-3976 atlona.com...
-
Page 10: Rs-232 & Tcp/Ip
RS-232 is connected through a 9-pin female D connector. Three pins will have specific functions associated with them, some are unassigned. Function ---- Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used ---- Not used ---- Not used Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 11: Commands
13 1920x1200 2CH 14 3840x2160@60 4:2:0 2CH 15 3840x2160@60 4:2:0 MCH 16 3840x2160@30 4:4:4 2CH 17 3840x2160@30 4:4:4 MCH 18 4096x2160@60 4:2:0 2CH 19 4096x2160@60 4:2:0 MCH 20 3840x2160@60 4:4:4 2CH 21 3840x2160@60 4:4:4 MCH Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 12: Ip Commands
Logs out of TCP/IP Connection IPAddUser X Y TCP/IP user was added Adds a user for TCP/IP control e.g. IPAddUser Atlona 1234 X= user and Y= Password IPDelUser X TCP/IP user was deleted Delete a user from TCP/IP X= username... -
Page 13: Connection Diagram
Connection Diagram Video INPUT POWER INPUT Video Video AT-JUNO-451 RX TX HDMI IN HDMI OUT OPTICAL RS-232 IR IN DC 5V Control Audio Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 14: Specifications
26 x 219 x 152 (mm) 1.0 x 8.6 x 5.9 (inch) Rack Size 1/2 Rack 1RU Weight Device 0.82 kg 1.8 lbs Certification Unit CE, FCC Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 15: Safety
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 16 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 17: Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com. Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
