Summary of Contents for Atlona junox AT-JUNO-451

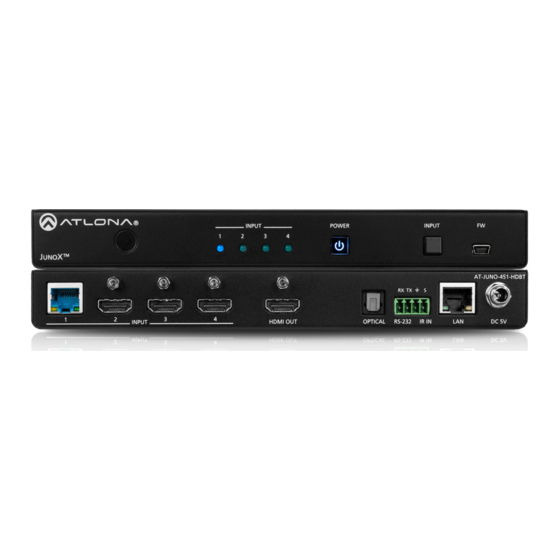

- Page 1 4K / UHD Four-Input HDMI Switcher with Auto-Switching and Return Optical Audio Atlona Manuals AT-JUNO-451 Switchers...
-
Page 2: Version Information
Version Information Version Release Date Notes 6/18 Initial release - new format AT-JUNO-451... -
Page 3: Operating Notes
Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware. - Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
-
Page 6: Important Safety Information
The information bubble is intended to alert the user to helpful or optional opera- product. tional instructions in the literature accompanying the product. 11. Only use attachments/accessories specified by Atlona. 1. Read these instructions. 12. To reduce the risk of electric shock and/or damage 2. Keep these instructions. -
Page 7: Table Of Contents
Table of Contents Introduction Features Package Contents Panel Description IR Remote Control Installation RS-232 / IR Connector Connection Instructions Connection Diagram IP Configuration Setting the IP Mode Setting the IP Address Using Commands Setting the IP Address using the Web GUI The Web GUI Introduction to the Web GUI Menu Bar... -
Page 8: Introduction
Introduction The Atlona JunoX™ 451 (AT-JUNO-451) is a 4×1 HDMI switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. -
Page 9: Panel Description
Panel Description AT-JUNO-451 INPUT POWER INPUT AT-JUNO-451 RX TX INPUT HDMI OUT OPTICAL RS-232 IR IN DC 5V IR Window OPTICAL Receives IR signals from the included IR remote. Connect an optical audio cable from this TOSLINK port to an audio output device. This port is part of Input Indicators the Audio Return Channel (ARC): audio from the These LED indicators glow solid blue to indicate the... -
Page 10: Ir Remote Control
IR Remote Control The AT-JUNO-451 includes an IR remote control unit, allow the control of the AT-JUNO-451 from a remote location. Power Video All On Video 1 Video 2 Input Audio Vol + Vol - Mute SW-R1 On / Off buttons Press the On button to power-on the unit. -
Page 11: Installation
The AT-JUNO-451 provides RS-232 and IR control, using the included four-pin captive screw connector. Electrical IR or RS-232 signals, from a control system, can be used to control the AT-JUNO-451. Atlona recommends the AT-LC-CS-IR-2M (sold separately) for easy connection to the captive screw connector. -
Page 12: Connection Instructions
Installation Connection Instructions 1. Connect an HD/UHD source to each of the four HDMI inputs (INPUT 1 - INPUT 4). 2. Connect an optical audio cable from the OPTICAL port to a sound bar or other audio output device. 3. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN). Ethernet cables should use EIA/ TIA-568B termination. -
Page 13: Connection Diagram
Installation Connection Diagram UHD Blu-ray Player Media Player Laptop Laptop AT-JUNO-451 IN PU W ER IN PU UHD Display AV Receiver AT-JUNO-451... -
Page 14: Ip Configuration
Installation IP Configuration The AT-JUNO-451 is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Use an IP scanner, along with the MAC address on the back of the unit, to identify both the unit and its IP address on the network. -
Page 15: Setting The Ip Address Using The Web Gui
2. Log in, using the required credentials. The factory-default username and password are listed below: Username: root Password: Atlona 3. Click the System tab. 4. Click the IP Mode toggle to switch between the DHCP and STATIC IP setting. When set to STATIC IP, the IP, Netmask, and Gateway fields can be modified. -
Page 16: The Web Gui
The Web GUI Introduction to the Web GUI The AT-JUNO-451 includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-JUNO-451, as it provides intuitive management of all features. The AT-JUNO-451 is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. -
Page 17: Menu Bar
The Web GUI 7. The Info page will be displayed. 8. Click Logout, on the far-right side of the menu bar, to log out of the web GUI and return to the Login page. Menu Bar The dark-colored bar, near the top of the screen, is the menu bar. When the mouse is moved over each menu element, it will be highlighted in light orange. -
Page 18: Info Page
Software Version The version of firmware that the AT-JUNO-451 is running. Always make sure to check the AT-JUNO-451 product page, on the Atlona web site, for the latest version of firmware. On-Time (h-m) The time elapsed since the unit was last powered-on. Turning the unit “off”, using the PWOFF command, will not reset this field. -
Page 19: A/V Settings Page
The Web GUI A/V Settings page Video Input Selection Click this drop-down list to select the desired input. Setting Port Input 1 INPUT 1 (HDBaseT) Input 2 INPUT 2 Input 3 INPUT 3 Input 4 INPUT 4 Auto Switch Set the Auto Switch mode toggle to ON to enable auto-switching. When auto-switching is enabled, the switcher will automatically switch to the previous input, if a signal loss is detected on the current input. -
Page 20: Audio
The Web GUI Audio Output 1 Toggles audio muting on the HDMI OUT port. Set the Output toggle to OFF to disable HDMI audio on the output. The default setting is ON. HDMI Input audio breakout Sets the audio source used by the OPTICAL port on the unit. The default setting is SPDIF. Setting Description SPDIF... -
Page 21: Rs-232 Page
The Web GUI RS-232 page RS-232 Parameter Setting Click each of these drop-down boxes to select the desired baud rate, data bits, parity bit, and stop bit. Setting Description Baud rate Sets the baud rate. The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200. -
Page 22: Edid Page
The Web GUI EDID page EDID Settings Click these drop-down lists to select the desired EDID to be used for each input. Input 1 = INPUT 1, Input 2 = INPUT 2, Input 3 = INPUT 3, Input 4 = INPUT 4. The source device will use the information in the EDID, before sending A/V data to the sink device. -
Page 23: Config Page
Config page Old Username This field cannot be changed. “root” is the administrator user. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes. -
Page 24: System Page
The Web GUI System page Network IP Mode Click this toggle to set the IP mode of the AT-JUNO-451. The default setting is DHCP. Available settings: STATIC IP, DHCP. Enter the IP address of the AT-JUNO-451 in this field. This field will only be available if IP Mode is set to STATIC IP. -
Page 25: System
The Web GUI System Power Under normal operation conditions, this toggle is set to ON. Click this toggle to OFF, to turn the AT-JUNO-451 “off”. When “off”, the POWER LED indicator on the front panel will turn red. The PWOFF and PWON commands can also be used to control the power state. -
Page 26: Appendix
Appendix Updating the Firmware Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-JUNO-451 firmware can be updated using a USB-A to USB mini-B cable. -
Page 27: Using Usb
Appendix Using USB Requirements: • AT-JUNO-451 • Firmware file • Computer running Microsoft Windows • USB-A to USB mini-B cable 1. Disconnect power from the AT-JUNO-451. 2. Press and hold the INPUT button while connecting power to the AT-JUNO-451. 3. Release the INPUT button. The POWER button will glow solid red, indicating that the AT-JUNO-451 is in update mode. -
Page 28: Default Settings
Default Input 2 Default Input 3 Default Input 4 Default EDID Saved Output 1 Config Username (default) root Password (default) Atlona System Network IP Mode DHCP Static IP Address (default) 192.168.1.254 Netmask 255.255.255.0 Gateway 192.168.1.1 Telnet Port Telnet Login Mode... -
Page 29: Specifications
Appendix Specifications Connectors, Controls, and Indicators INPUT 4 - Type-A, 19-pin female OUTPUT 1 - Type A, 19-pin female OPTICAL 1 - TOSLINK™ RS-232 / IR 1 - 5-pin captive screw 1 - RJ45 DC 5V 1 - Barrel connector, 5.5 mm, locking 1 - Type mini-B, 5-pin female INPUT button 1 - momentary, tact-type... - Page 30 Appendix Temperature Fahrenheit Celsius Operating 32° to 122° 0° to 50° Storage -4° to 140° -20° to 60° Humidity (RH) 20% to 90%, non-condensing Power Consumption 6.6 W Idle Consumption 5.9 W Supply Input: 100 - 240 V AC, 50/60 Hz, Output: 5 V DC Dimensions Inches Millimeters...
-
Page 31: Index
Index Audio RS-232 muting settings Configuration Safety information See IP configuration Settings Connection auto-switching diagram HDCP instructions Specifications Contents package Customer support Updating firmware 26, 27 Default setttings Description Warranty front / rear panel Web GUI EDID presets saving FCC statement Features Firmware updating... - Page 32 • 408.962.0515 • 877.536.3976 © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
