Page 1: User Manual

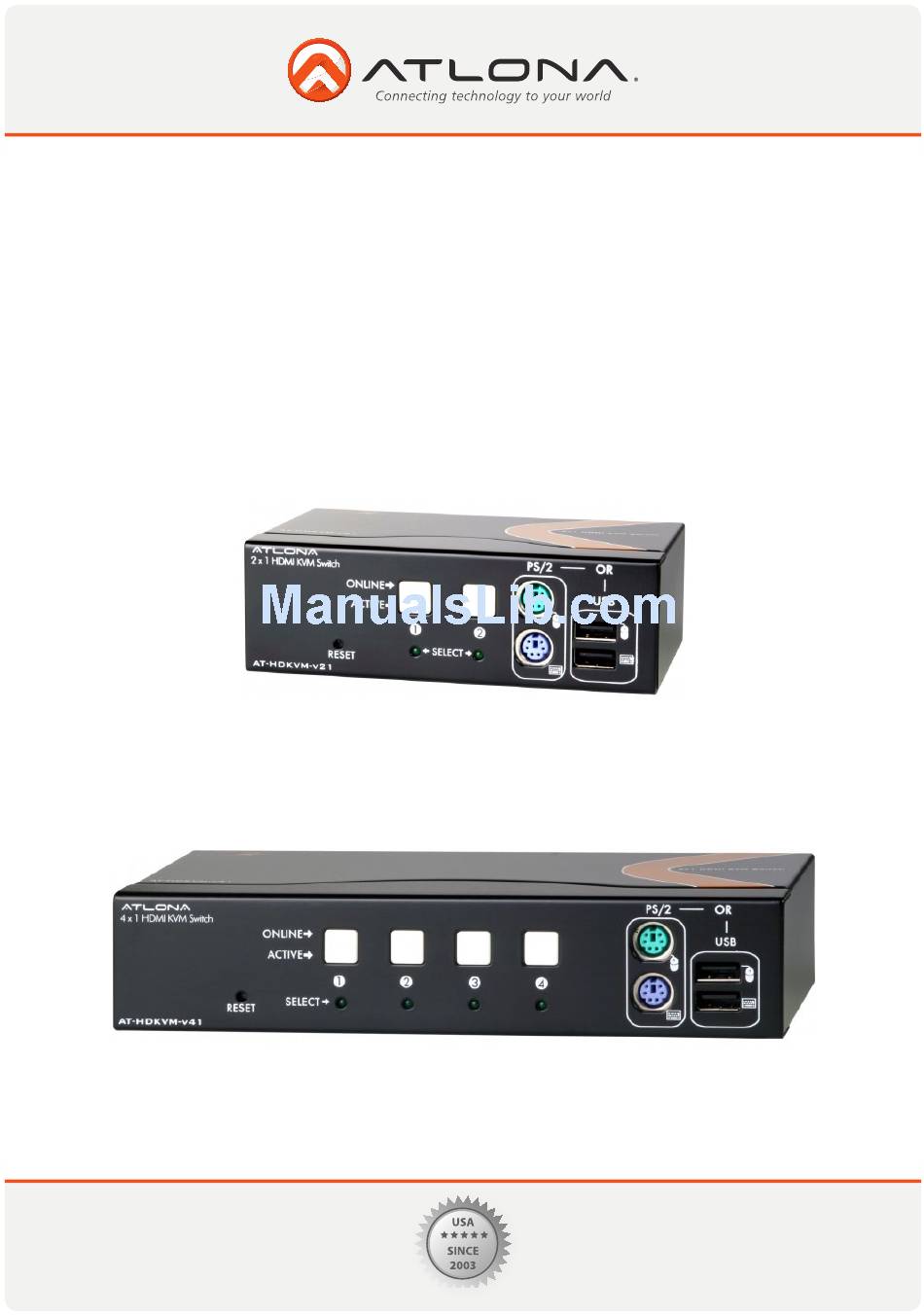

User Manual 2x1 and 4x1 HDMI KVM (Keyboard and Mouse) Switch AT-HDKVM-V21 and AT-HDKVM-V41 AT-HDKVM-V21 AT-HDKVM-V41 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
6. Connection and Operation ..........3 7. Hot Key Instructions ..........4 8. LED identification ..........4 9. Connection Diagram ..........5 10. Safety Information ..........6 11. Warranty ..........7 12. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

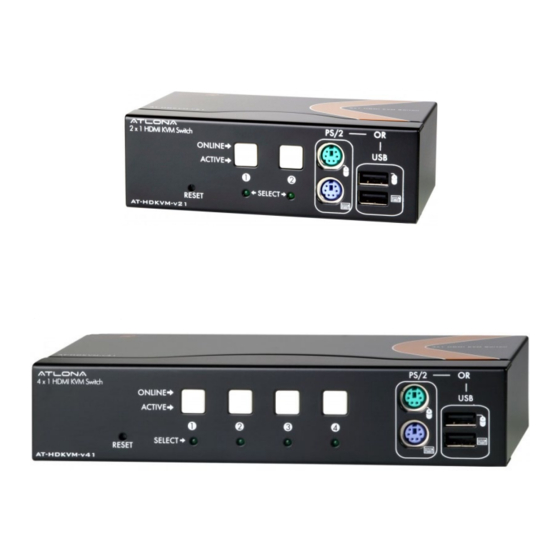

INTRODUCTION The Atlona HDKVM-V21 and HDKVM-V41 are the HDMI KVM 2 x 1 and 4x1 switchers. These designed to allow user to have 2 or 4 computers and one display while utilizing the same keyboard and mouse across all of the computers. The switch between channels could either be done though push-buttons on the front panel of the switch or though Hot Key selection. -
Page 4: Specification
0 to 80 % RH (no condensation) CONNECTION AND OPERATION 1. Connect HDMI Cable from your computers to inputs on the Atlona HD KVM Switch 2. Connect the one USB cable to each one of the computers. Make sure that HDMI input numbers corre- spond with USB input numbers. -
Page 5: Hot Key Instructions
Selected input LEDs. ORANGE LEDs indicate that the computer attached to the corresponding port is up and running. GREEN LEDs indicate the current input is selected. The flashing LEDs is indicating that Auto mode is ON. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Connection Diagram
CONNECTION DIAGRAM Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: 10. Safety Information
It may also cause damage to your AT-HDKVM-V41, AT-HDKVM-V21. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: 11. Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 9: 12. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
