4K HDR Fout-Input HDMI Switcher with Auto-Switching and
Return Optical Audio
AT-JUNO-451 / AT-JUNO-451-HDBT

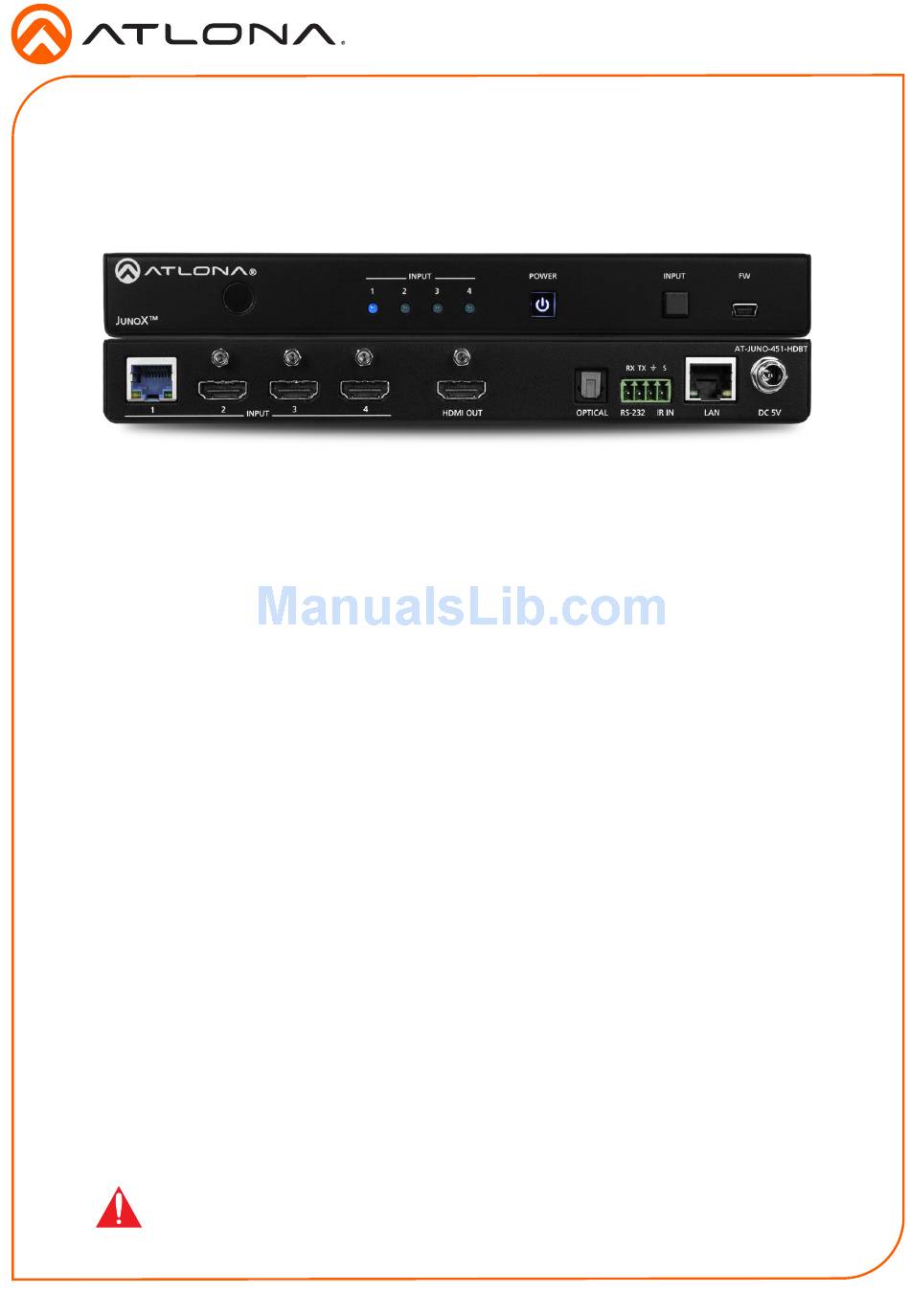

The Atlona JunoX™451 HDBT (AT-JUNO-451-HDBT) is a 4x1 switcher for high dynamic range
(HDR) formats. The JunoX 451 HDBT features three HDMI inputs, plus an HDBaseT input for
receiving video, embedded audio, and Ethernet over distances up to 330 feet (100 meters).
It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling,
as well as HDMI data rates up to 18 Gbps. The JunoX 451 HDBT is ideal for receiving 4K HDR
over HDBaseT from an Atlona Opus™ Series matrix switcher, and is also compatible with the
Atlona UHD-PRO3, UHD-CAT, and SW Series for data rates up to 10 Gbps. It includes EDID
management features and automatic input switching. The JunoX 451 HDBT also supports
the HDMI Audio Return Channel for receiving digital audio from a television,and includes a
TOSLINK digital audio output for sending this audio to an AV receiver or soundbar. This JunoX
Series switcher can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is
included.
The Atlona JunoX™ 451 (AT-JUNO-451) provides the same features at the AT-JUNO-451-HDBT,
except that the HDBaseT input is replaced with an HDMI port.
Package Contents
AT-JUNO-451
1 x AT-JUNO-451
1 x 4-pin captive screw block
2 x Mounting plates
4 x Rubber feet
4 x Screws
1 x IR remote control
1 x DC 5V power supply
1 x IEC cord
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-JUNO-451-HDBT and
http://www.atlona.com/product/AT-JUNO-451 for the latest firmware updates
and User Manual.
AT-JUNO-451-HDBT
1 x AT-JUNO-451-HDBT
1 x 4-pin captive screw block
2 x Mounting plates
4 x Rubber feet
4 x Screws
1 x IR remote control
1 x DC 5V power supply
1 x IEC cord
1 x Installation Guide
1
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
