Atlona AT-JUNO-451-HDBT Manual

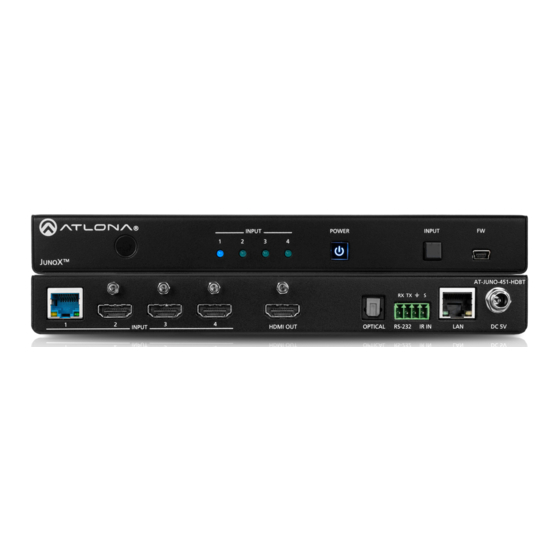

4k / uhd four-input hdmi switcher with auto-switching and return optical audio
Hide thumbs Also See for AT-JUNO-451-HDBT:
Table of Contents

Advertisement

Quick Links

Download this manual
4K / UHD
Four-Input HDMI Switcher
with Auto-Switching and Return Optical Audio
Atlona Manuals
AT-JUNO-451-HDBT
Switchers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-JUNO-451-HDBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-JUNO-451-HDBT

Summary of Contents for Atlona AT-JUNO-451-HDBT

  • Page 1 4K / UHD Four-Input HDMI Switcher with Auto-Switching and Return Optical Audio Atlona Manuals AT-JUNO-451-HDBT Switchers...
  • Page 2 Version Information Version Release Date Notes 6/18 Initial release AT-JUNO-451-HDBT...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
  • Page 6 Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-JUNO-451-HDBT...

  • Page 7: Table Of Contents

    Introduction to the Web GUI Menu Bar Info page A/V Settings page Video Audio RS-232 page EDID page Config page System page Network System HDBT page Appendix Updating the Firmware Using the Web GUI Using USB Default Settings Internal EDID Data Specifications Index AT-JUNO-451-HDBT...

  • Page 8: Introduction

    4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The JunoX 451 HDBT is ideal for receiving 4K HDR over HDBaseT from an Atlona Opus™ Series matrix switcher, and is also compatible with the Atlona UHD- PRO3, UHD-CAT, and SW Series for data rates up to 10 Gbps.

  • Page 9: Panel Description

    Panel Description AT-JUNO-451-HDBT INPUT POWER INPUT AT-JUNO-451-HDBT RX TX INPUT HDMI OUT OPTICAL RS-232 IR IN DC 5V IR Window OPTICAL Receives IR signals from the included IR remote. Connect an optical audio cable from this TOSLINK port to an audio output device. This port is part of...

  • Page 10: Ir Remote Control

    IR Remote Control The AT-JUNO-451-HDBT includes an IR remote control unit, allow the control of the AT-JUNO-451-HDBT from a remote location. Power Video All On Video 1 Video 2 Input Audio Vol + Vol - Mute SW-R1 On / Off buttons Press the On button to power-on the unit.

  • Page 11: Installation

    The AT-JUNO-451-HDBT provides RS-232 and IR control, using the included four-pin captive screw connector. Electrical IR or RS-232 signals, from a control system, can be used to control the AT-JUNO-451-HDBT. Atlona recommends the AT-LC-CS-IR-2M (sold separately) for easy connection to the captive screw connector.

  • Page 12: Connection Instructions

    3. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN). Ethernet cables should use EIA/ TIA-568B termination: 4. Connect a compatible transmitter to the HDBaseT (INPUT 1) port on the AT-JUNO-451-HDBT. Refer to the tables below for recommended cabling when using Altona products with HDBaseT technology.

  • Page 13: Connection Diagram

    Installation Connection Diagram AT-UHD-PRO3-44M Media Player P BOX Set-Top Box AT -UH Blu-ray Player Media Player AT-JUNO-451-HDBT -H DB -4 51 IN PU W ER IN PU Display AV Receiver AT-JUNO-451-HDBT...

  • Page 14: Ip Configuration

    IP mode. Use one of the following procedures to switch between DHCP and static IP mode. The default static IP address of the AT-JUNO-451-HDBT is 192.168.1.254. If the AT-JUNO-451-HDBT is unable to detect a DHCP server within 15 seconds, then the unit will set all IP settings to zero.

  • Page 15: Setting The Ip Address Using The Web Gui

    System page (page 24), in the web GUI, allows the AT-JUNO-451-HDBT to use either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-JUNO-451-HDBT must be known. Refer to Introduction to the Web GUI (page 16).

  • Page 16: The Web Gui

    The Web GUI Introduction to the Web GUI The AT-JUNO-451-HDBT includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-JUNO-451-HDBT, as it provides intuitive management of all features. The AT-JUNO-451-HDBT is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit.

  • Page 17: Menu Bar

    Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu. In this example, moving the mouse over the A/V Settings menu item will highlight it. Click the A/V Settings menu item to display the A/V Settings page. Menu bar AT-JUNO-451-HDBT...

  • Page 18: Info Page

    The model SKU of this product. Software Version The version of firmware that the AT-JUNO-451-HDBT is running. Always make sure to check the AT-JUNO-451- HDBT product page, on the Atlona web site, for the latest version of firmware. On-Time (h-m) The time elapsed since the unit was last powered-on.

  • Page 19: A/V Settings Page

    Set the Auto Switch mode toggle to ON to enable auto-switching. When auto-switching is enabled, the switcher will automatically switch to the previous input, if a signal loss is detected on the current input. If a new source is connected, the AT-JUNO-451-HDBT will automatically switch to that input. The default setting is ON. HDCP Settings Sets the HDCP reporting mode of the specified HDMI port: Input 1 = INPUT 1 (HDBaseT), Input 2 = INPUT 2, Input 3 = INPUT 3, Input 4 = INPUT 4.

  • Page 20: Audio

    Audio being returned from the display, over ARC, will be output on the OPTICAL port on the AT-JUNO-451-HDBT. It should be noted that the audio is limited to formats supported by the SPDIF output, such as PCM, Dolby® Digital, and some formats of DTS.
  • Page 21 The following options are available: None, Odd, or Even. Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2. AT-JUNO-451-HDBT...

  • Page 22: Edid Page

    EDID Saved Click this drop-down list to select the memory location to save the downstream EDID. Eight memory locations are available. Once an EDID is saved to a memory location, it can be access from the EDID Settings drop-down lists. AT-JUNO-451-HDBT...

  • Page 23: Config Page

    Config page Old Username This field cannot be changed. “root” is the administrator user. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes.

  • Page 24: System Page

    Telnet Login Mode Click this toggle to set the login mode to either ON or OFF. If this feature is set to ON, then the AT-JUNO-451-HDBT will prompt for both the username and password at the start of a Telnet session. Use the same credentials as the web GUI.

  • Page 25: System

    Power Under normal operation conditions, this toggle is set to ON. Click this toggle to OFF, to turn the AT-JUNO-451-HDBT “off”. When “off”, the POWER LED indicator on the front panel will turn red. The PWOFF and PWON commands can also be used to control the power state.

  • Page 26: Hdbt Page

    The Web GUI HDBT page HDBaseT Zone The AT-JUNO-451-HDBT has only a single HDBaseT output. Therefore, this drop-down list is disabled. Start Click the Start button to begin the HDBaseT testing process. During testing, the button text will change to “Stop”.

  • Page 27: Appendix

    Appendix Updating the Firmware Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-JUNO-451- HDBT firmware can be updated using a USB-A to USB mini-B cable.

  • Page 28: Using Usb

    1. Disconnect power from the AT-JUNO-451-HDBT. 2. Press and hold the INPUT button while connecting power to the AT-JUNO-451-HDBT. 3. Release the INPUT button. The POWER button will glow solid red, indicating that the AT-JUNO-451-HDBT is in update mode. 4. Connect the USB-A to USB mini-B cable between the PC and the firmware port on the AT-JUNO-451-HDBT.

  • Page 29: Default Settings

    Appendix Default Settings The following tables list the factory-default settings for the AT-JUNO-451-HDBT. Feature Settings A/V Settings Video Input Selection Input 1 Auto Switch HDCP Settings Input 1 Input 2 Input 3 Input 4 Audio Output 1 HDMI input audio breakout...

  • Page 30: Internal Edid Data

    Appendix Internal EDID Data The AT-JUNO-451-HDBT comes with 24 pre-programmed EDID selections. The timing and audio summary (if applicable) for each EDID, is listed below. Raw data is also provided and can be used to view the full EDID structure.
  • Page 31 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 5A 00 00 00 18 00 00 63 AT-JUNO-451-HDBT...
  • Page 32 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 A0 5A 00 00 00 18 26 36 80 A0 70 38 1F 40 30 20 25 00 A0 5A 00 00 00 1A 00 00 7E AT-JUNO-451-HDBT...
  • Page 33 60Hz - HDTV (16:9, 1:1) [Native] 1280 x 720p at 60Hz - HDTV (16:9, 1:1) 1920 x 1080i at 60Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) AT-JUNO-451-HDBT...
  • Page 34 60Hz - HDTV (16:9, 1:1) [Native] 1280 x 720p at 60Hz - HDTV (16:9, 1:1) 1920 x 1080i at 60Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) AT-JUNO-451-HDBT...
  • Page 35 60Hz - HDTV (16:9, 1:1) [Native] 1280 x 720p at 60Hz - HDTV (16:9, 1:1) 1920 x 1080i at 60Hz - HDTV (16:9, 1:1) 1920 x 1080p at 24Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) AT-JUNO-451-HDBT...
  • Page 36 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5B AT-JUNO-451-HDBT...
  • Page 37 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 49 AT-JUNO-451-HDBT...
  • Page 38 25Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) 640 x 480p at 60Hz - Default (4:3, 1:1) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz CE speaker allocation data FL/FR AT-JUNO-451-HDBT...
  • Page 39 00 9E 8C 0A D0 90 20 40 31 20 0C 40 55 00 00 00 00 00 00 18 01 1D 00 BC 52 D0 1E 20 B8 28 55 40 00 00 00 00 00 1E 00 04 AT-JUNO-451-HDBT...
  • Page 40 25Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) 640 x 480p at 60Hz - Default (4:3, 1:1) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz CE speaker allocation data FL/FR AT-JUNO-451-HDBT...
  • Page 41 00 00 00 FD 00 32 4C 18 5E 11 00 0A 20 20 20 20 20 20 00 00 00 FC 00 41 54 4C 20 31 30 38 30 50 20 44 56 49 00 00 00 FF 00 33 43 4D 32 32 37 30 32 39 53 0A 20 20 00 4A AT-JUNO-451-HDBT...
  • Page 42 00 00 00 FF 00 52 53 34 31 30 33 39 30 36 35 35 37 0A 00 00 00 FD 00 32 78 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC 00 41 54 4C 20 50 43 57 58 47 41 44 56 49 00 24 AT-JUNO-451-HDBT...
  • Page 43 25Hz - HDTV (16:9, 1:1) 1920 x 1080p at 30Hz - HDTV (16:9, 1:1) 640 x 480p at 60Hz - Default (4:3, 1:1) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz CE speaker allocation data FL/FR AT-JUNO-451-HDBT...
  • Page 44 720 x 480p at 60Hz - EDTV (4:3, 8:9) 720 x 480p at 60Hz - EDTV (4:3, 8:9) 720 x 480p at 60Hz - EDTV (4:3, 8:9) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz AT-JUNO-451-HDBT...
  • Page 45 680k max. bit rate at 32/44/48 kHz 6-channel, 1536k max. bit rate at 32/44/48/88/96 kHz 8-channel at 32/44/48 kHz DVD-A 8-channel at 48/96/192 kHz DTS-HD 8-channel, 16-bit at 44/48/88/96/176/192 kHz CE speaker allocation data FL/FR, FLFE, FC, RL/RR, RC, RLC/RRC AT-JUNO-451-HDBT...
  • Page 46 5A 00 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 1D AT-JUNO-451-HDBT...
  • Page 47 60Hz - Doublescan (16:9, 32:27) 720 x 480i at 60Hz - Doublescan (16:9, 32:27) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48/96/192 kHz LPCM 2-channel, 16/20/24 bit depths at 32/44/48/96/192 kHz LPCM 2-channel, 16/20/24 bit depths at 32/44/48/96/192 kHz AT-JUNO-451-HDBT...
  • Page 48 5A 00 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 1D AT-JUNO-451-HDBT...
  • Page 49 8-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz AC-3 6-channel, 680k max. bit rate at 32/44/48 kHz 6-channel, 1536k max. bit rate at 32/44/48/88/96 kHz 8-channel at 32/44/48 kHz DVD-A 8-channel at 48/96/192 kHz DTS-HD 8-channel, 16-bit at 44/48/88/96/176/192 kHz AT-JUNO-451-HDBT...
  • Page 50 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 00 00 60 AT-JUNO-451-HDBT...
  • Page 51 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2B AT-JUNO-451-HDBT...
  • Page 52 5A 00 00 00 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 10 AT-JUNO-451-HDBT...
  • Page 53 1E 01 1D 80 18 71 1C 16 20 58 2C 25 00 A0 5A 00 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 C1 AT-JUNO-451-HDBT...
  • Page 54 8-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz AC-3 6-channel, 680k max. bit rate at 32/44/48 kHz 6-channel, 1536k max. bit rate at 32/44/48/88/96 kHz 8-channel at 32/44/48 kHz DVD-A 8-channel at 48/96/192 kHz DTS-HD 8-channel, 16-bit at 44/48/88/96/176/192 kHz AT-JUNO-451-HDBT...
  • Page 55 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 00 00 57 AT-JUNO-451-HDBT...
  • Page 56 50Hz - Doublescan (16:9, 64:45) 720 x 576i at 50Hz - Doublescan (16:9, 64:45) 720 x 576i at 50Hz - Doublescan (16:9, 64:45) CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 44/48/96/192 kHz CE speaker allocation data FL/FR AT-JUNO-451-HDBT...
  • Page 57 1D 74 00 00 9E 66 21 56 AA 51 00 1E 30 46 8F 33 00 50 1D 74 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96 AT-JUNO-451-HDBT...
  • Page 58 8-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz AC-3 6-channel, 640k max. bit rate at 32/44/48 kHz 6-channel, 1536k max. bit rate at 44/48/88/96 kHz 8-channel at 44/48 kHz DTS-HD 8-channel, 16-bit at 44/48/88/96/176/192 kHz CE speaker allocation data FL/FR, FLFE, FC, RL/RR, RLC/RRC AT-JUNO-451-HDBT...
  • Page 59 E4 0F 00 00 78 66 21 56 AA 51 00 1E 30 46 8F 33 00 BA 88 21 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 22 AT-JUNO-451-HDBT...

  • Page 60: Specifications

    32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Rate 24-bit (max.) Resolution / Distance 4K - Feet 4K - Meters 1080p - Feet 1080p - Meters HDMI IN/OUT CAT5e/6 CAT6a/7 *4096x2160@50/60Hz and 3840x2160@50/60Hz supports 8-bit 4:2:0 chroma subsampling, only. AT-JUNO-451-HDBT...
  • Page 61 Input: 100 - 240 V AC, 50/60 Hz, Output: 5 V DC Dimensions Inches Millimeters H x W x D 1.0 x 8.6 x 5.9 26 x 219 x 152 Weight Pounds Kilograms Device 1.82 0.82 Certification Device CE, FCC Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC AT-JUNO-451-HDBT...

  • Page 62: Index

    Description front / rear panel Updating firmware 27, 28 EDID presets Warranty detailed summary Web GUI saving FCC statement Features Firmware updating using the web GUI using USB HDBaseT testing Input selecting Installation IP configuration 14, 24 Operating notes AT-JUNO-451-HDBT...
  • Page 63 • 408.962.0515 • 877.536.3976 © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
