Selftest

If you feel that your programmer does not react according to your expectation, please run the
programmer (ISP connector) selftest using Diagnostic POD (Diagnostic POD for ISP
connectors #2), enclosed with the standard delivery package.

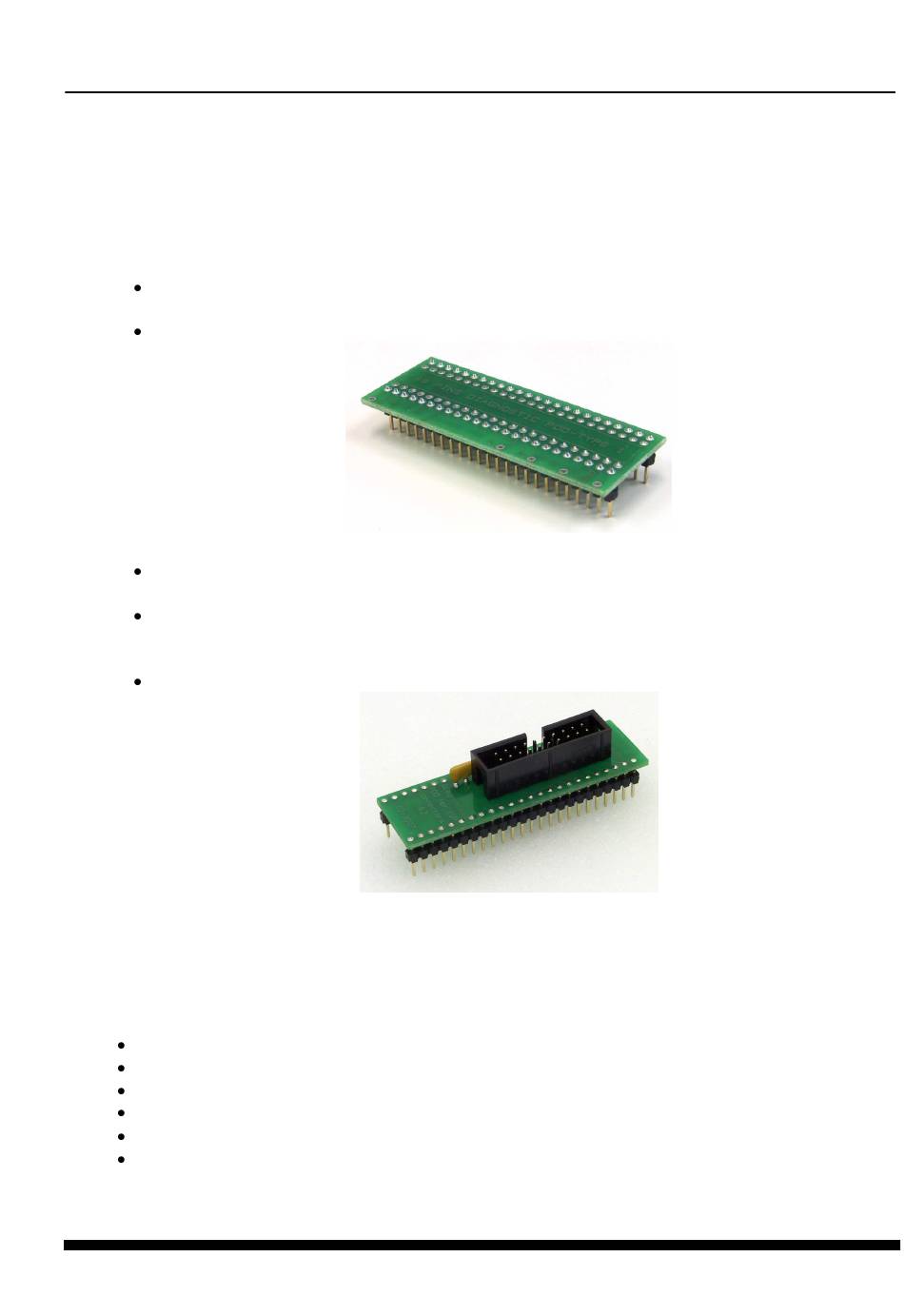

Selftest of programmer
Insert 48 pins diagnostic POD - type I into ZIF socket of the programmer. 48 pins
diagnostic POD - type I must be inserted as 48 pins device.
Run selftest of programmer in PG4UW (Programmer / Selftest plus).
Selftest of ISP connector
Insert Diagnostic POD for ISP connectors #2 into ZIF socket of the programmer.
Diagnostic POD for ISP connectors #2 must be inserted as 48 pins device.
Interconnect 20 pins connector of Diagnostic POD for ISP connectors #2 with an ISP
connector of the programmer with an ISP cable, included in delivery programmer
package. Be sure that pins are interconnected properly (i.e. 1-1, 2-2... 20-20).
Run selftest of ISP connector in PG4UW (Programmer / Selftest ISP connector...).

Technical specification

Specification (DATAMAN-448PRO2 multiprogramming system)
4x universal programming module (4x 48-pin DIL ZIF sockets)
operation result LEDs, LED power
USB 2.0 high-speed compatible port
line power input 100-240VAC/60W max.
banana jack for ESD wrist straps connection
banana jack for connection to ground
