Dataman -448PRO2 User Manual page 125

Programmer / Selftest plus
Command executes a selftest plus of current programmer using diagnostic POD, which is
included in standard delivery of programmer.
Recommendations how often run Selftest plus you can find at Maintenance section.
Programmer / Self test ISP connector
Command executes a selftest of ISP connector of current programmer using diagnostic POD
for ISP connectors.
Diagnostic POD for ISP connectors is necessary to use for testing 6 and 10-pin ISP
connectors of programmers. Diagnostic POD for ISP connectors is available as optional
accessories for programmers with 6-pin and 10-pin ISP connector (DATAMAN-40PRO).

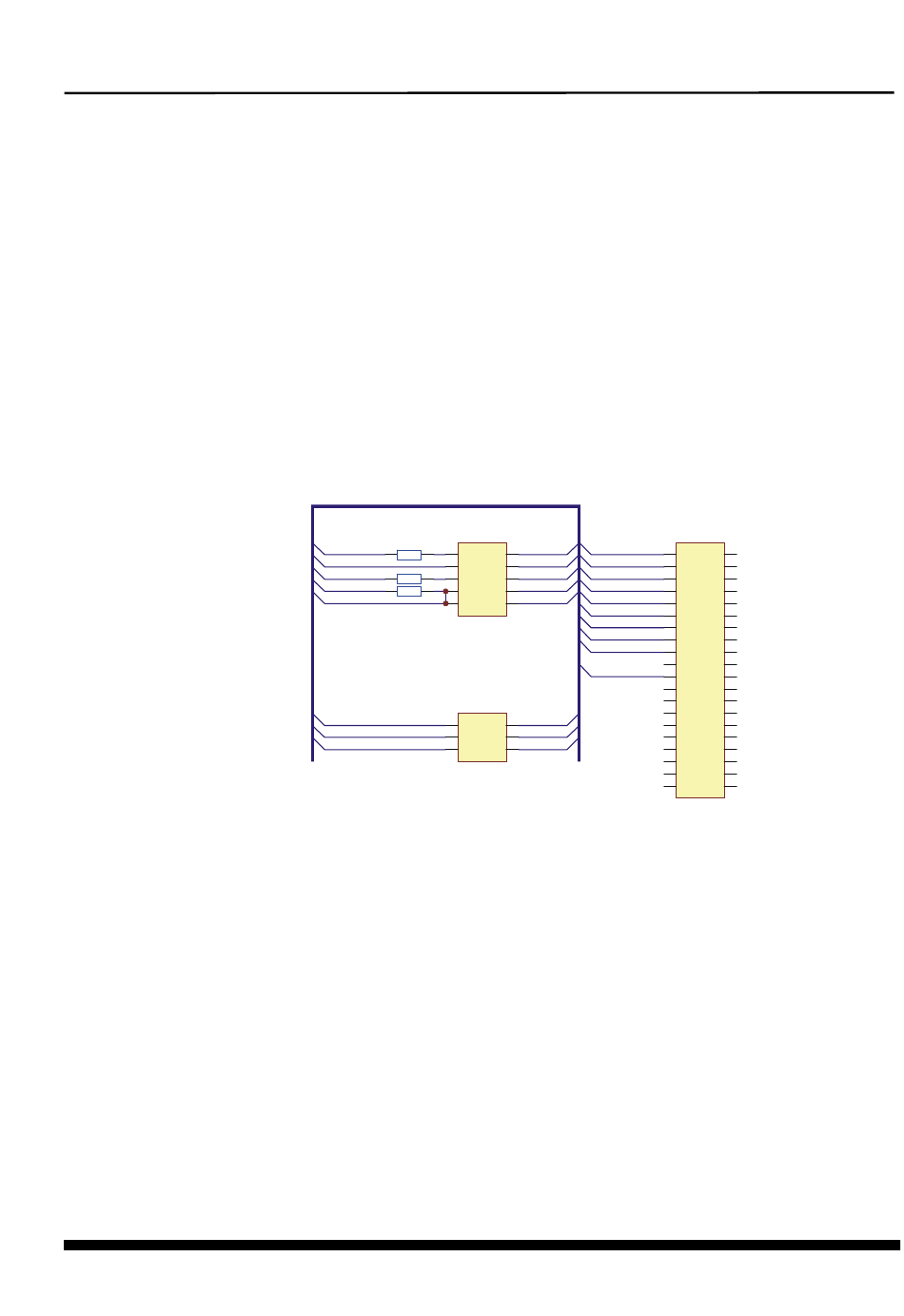

Schematic of Diagnostic POD for ISP connector (if you are in hurry):
HR1A 47R
HR1B 47R
HR1C 47R
Sequence for testing 6 pins ISP connector:
1. Insert Diagnostic POD for ISP connectors into ZIF socket of the programmer. Diagnostic
POD for ISP connectors must be inserted as 40 pins device.
2. Interconnect 6 pins connector of Diagnostic POD for ISP connectors with an ISP
connector of the programmer with an ISP cable, included in programmer delivery
package. Be sure that pins are interconnected properly (i.e. 1-1, 2-2, ..., 6-6).
3. Run selftest of ISP connector in PG4UW (Programmer / Selftest ISP connector...).
Sequence for testing 10 pins ISP connector:
1. Insert Diagnostic POD for ISP connectors into ZIF socket of the programmer. Diagnostic
POD for ISP connectors must be inserted as 40 pins device.
2. Interconnect 10 pins connector of Diagnostic POD for ISP connectors with an ISP
connector of the programmer with an ISP cable, included in delivery programmer
package. Be sure that pins are interconnected properly (i.e. 1-1, 2-2, ..., 10-10).
3. Run selftest of ISP connector in PG4UW (Programmer / Selftest ISP connector...).
1 2
ZIF7
1 2
ZIF4
3 4
3 4
ZIF9
5 6
6 5
ZIF1
7 8
ZIF2
9 10
J2
HARTING 09185106324
ZIF3
1 2
ZIF5
3 4
ZIF4
5 6
J3
HARTING 09185066324
125
J1
DIP40 to ZIF socket
ZIF3 ZIF1
1 40
ZIF5
ZIF2
2 39
ZIF6
ZIF3
3 38
ZIF8
ZIF4
4 37
ZIF11
ZIF5
5 36
ZIF6
6 35
ZIF7
7 34
ZIF8
8 33
ZIF9
9 32
10 31
ZIF11
11 30
12 29
13 28
14 27
ZIF6
15 26
ZIF8
16 25
ZIF2
17 24
18 23
19 22
20 21
PG4UW
