Over Armour Offroad
NOTICE: Please check contents of package for any damage and make sure all parts fit correctly
and you are happy with the product before removing protective film. Once the film is removed
Be sure to read these instructions thoroughly before opening and installing the Polycarbonate
Windshield.
1. Start by pulling it out of the box and find a clean area to lay it down and install the hardware.
Check over the parts included in the cartons with the parts list shown below:
1 ¾" Loom Clamps
1" Stainless Steels Bolts
Stainless Steel Washers
Slide fasteners
Lock Nuts
Plastic Thumb Nuts
Sliding Vent Panels
52" Rubber Gasket
55" Rubber Gasket
Bent Polycarbonate Braces
Polycarbonate Windshield
2. Next take the rubber gasket and starting at one end firmly place along entire bottom and top
edges of the lower Windshield Section. You will need to peel back the protective film from the
edge to install the gasket. If you leave the bulk of the protective film on while installing you can
keep from scratching the windshield. Please see photo below:
2515 Bypass Rd. Flemingsburg, KY 41041
606-845-7439
Instructions for Installation and Care of
Bobcat 3400

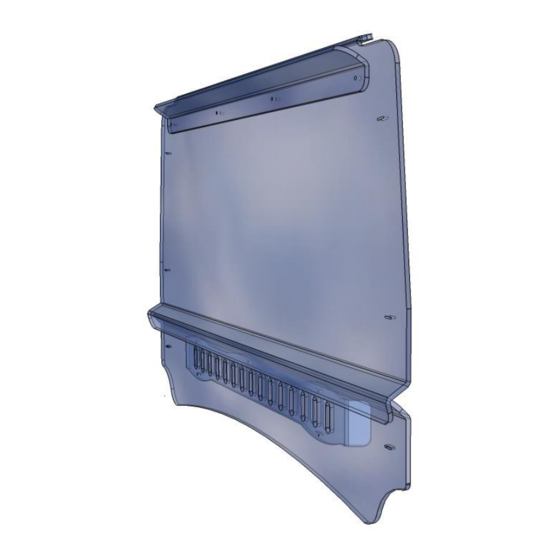

Aero-Vent Polycarbonate Windshield
BC-3400-WD05
you cannot return the product for a full refund.
8 each
14 each
20 each
8 each
4 each
10 each
2 each
1 each
1 each
1 each
2 Pieces
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Over Armour Offroad BC-3400-WD05
Summary of Contents for Over Armour Offroad BC-3400-WD05
- Page 1 Over Armour Offroad 2515 Bypass Rd. Flemingsburg, KY 41041 606-845-7439 Instructions for Installation and Care of Bobcat 3400 Aero-Vent Polycarbonate Windshield BC-3400-WD05 NOTICE: Please check contents of package for any damage and make sure all parts fit correctly and you are happy with the product before removing protective film. Once the film is removed you cannot return the product for a full refund.
- Page 2 3. Next Install the Aero-Vent sliders as shown in the diagram below.
- Page 3 4. Next take the bent Polycarbonate brace and install it on the windshield. Please see diagram Below.
- Page 4 5. Now you are ready to place the windshield on the Bobcat and attach to the roll cage. NOTE: THE BEND AT THE TOP OF THE WINDSHIELD SHOULD GO BELOW THE TOP TUBE. The diagram on the next page shows the proper placement for the hardware. Install the clamps as shown for the top two slots in the windshield only.
- Page 5 7. Now you are ready to take it out and enjoy. To clean the windshield, always clean using a liquid of some sort to decrease the chance of scratches. We recommend using micro fiber cloths that are readily available at any dollar store. Any window cleaner will work fine; just remember to use a soft clean rag or micro-fiber cloth to clean it.
- Page 6 - a 20% restocking fee will apply. If ordered from Over Armour Offroad please call at 606-845-7439 to gain a return authorization number, use our preferred shipping carrier (UPS) to return the item (unless the item is defective, you are responsible for paying the shipping to return the item.) Any...
- Page 7 Phone: 606-845-7439 To The Owner of this Product: Thank you for purchasing one of Over Armour Offroad Cab Enclosures &/or Windshields! Below are the terms under which your product is covered under our manufacturer’s warranty. 30 Day Warranty which includes and is not limited to replacing the enclosure and/or windshield due to defect of the product.
