Instructions for Installation and Care of Kawasaki Teryx Full Cab Enclosure
CAUTION: Do not smoke inside the cab or expose the enclosure to direct flames. Product is FLAMMABLE.
Be sure to read these instructions thoroughly before opening and installing the enclosure. The
installation is best done when the temperature is 70
cold weather, warming the adhesive Velcro strips inside just before installation is recommended.
1. Carefully open the carton and unroll the enclosure onto a large flat surface that is clean
and free of dirt or other material that may soil or scratch the vinyl windows.
2. It will help to raise the bed and remove the seats prior to installing the cab enclosure.
3. Check over the parts included in the carton with the parts list shown below:
Velcro hook strips
Velcro hook strips
Velcro hook strips
Velcro hook strips
Snap studs
Cab enclosure
4. Before installing cab, take the 45" adhesive Velcro strip and attach it across the hood
approximately 5" from the top edge of the hood as shown in fig. A. Next install the two
10" strips on the chassis behind the seats as shown in fig. B. Clean the areas with
rubbing alcohol; let dry and then apply the adhesive Velcro strip.

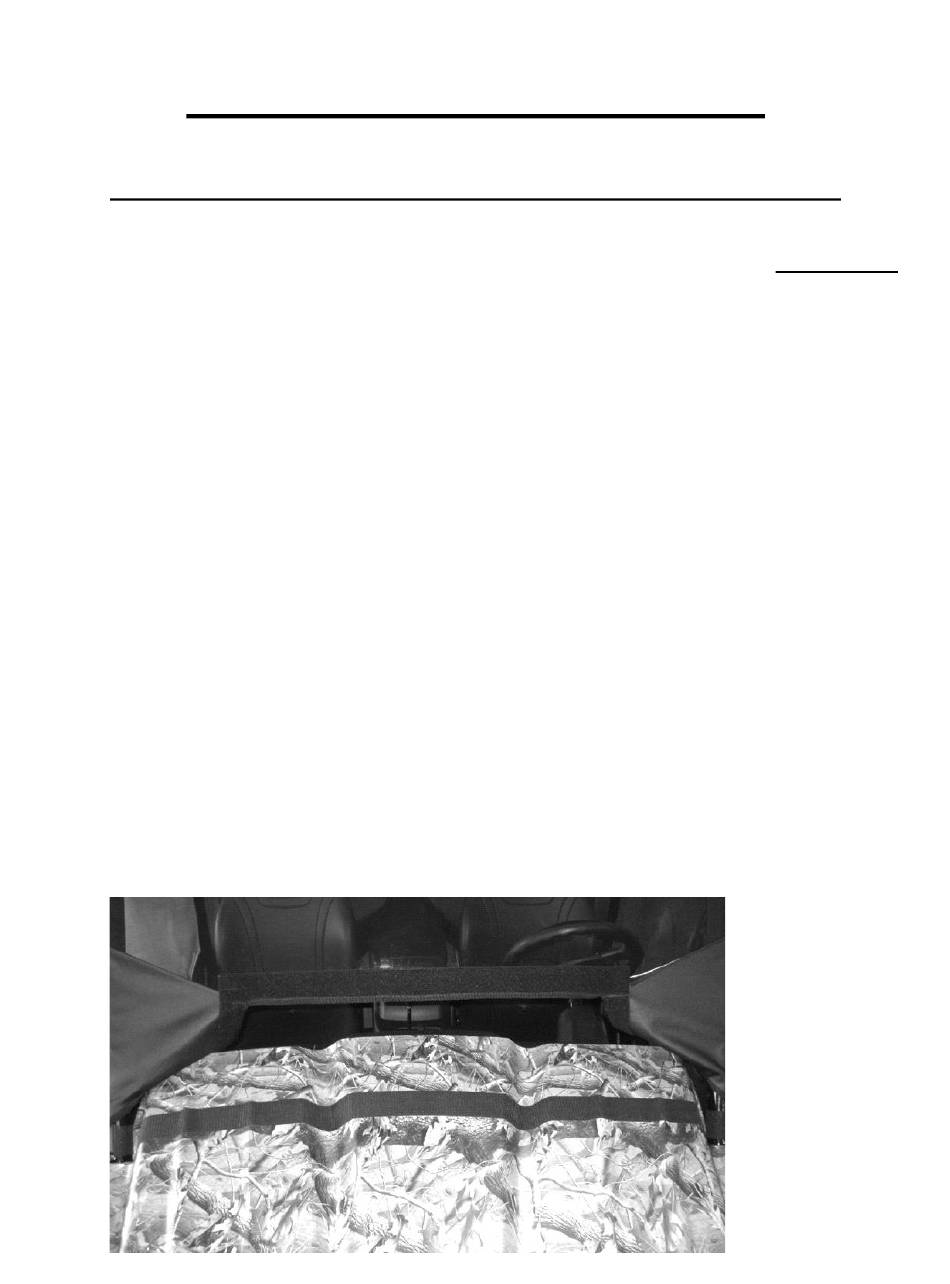

Fig. A
2515 Bypass Rd. Flemingsburg, KY 41041
606-845-7439
KAW-TERYX-FC01
4 each
2 each
2 each
1 each
13 each (1 extra)
1 each
°
F or warmer. If installed outside and in the
10" long
12" long
15" long
45" long
