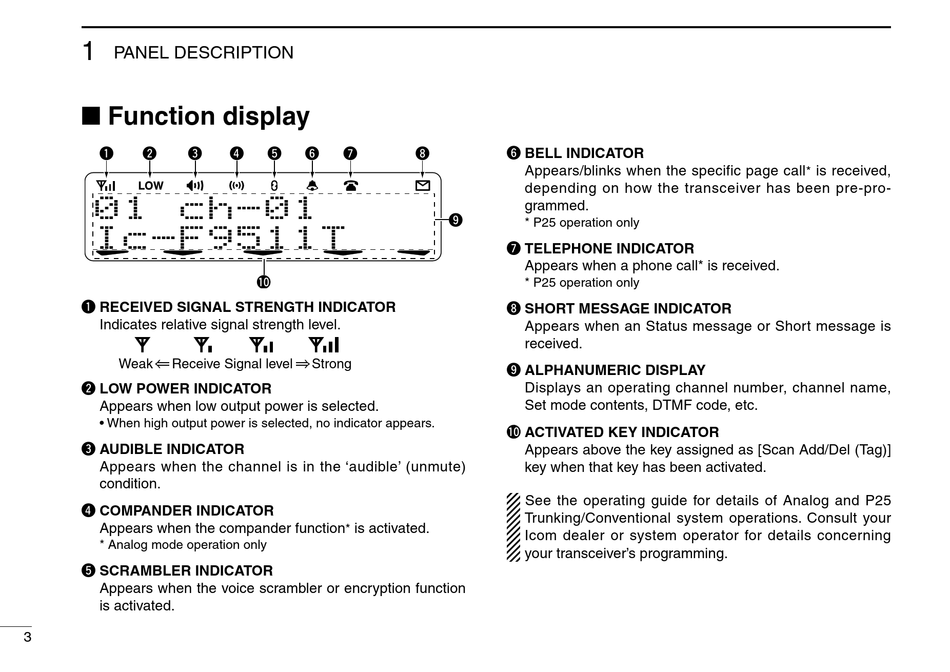

PANEL DESCRIPTION
n Function display
q
w
e
0 1
c h - 0 1
I c - F 9 5 1 1 T
q RECEIVED SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
Weak
Receive Signal level
w LOW POWER INDICATOR
Appears when low output power is selected.
• When high output power is selected, no indicator appears.
e AUDIBLE INDICATOR
Appears when the channel is in the 'audible' (unmute)
condition.
r COMPANDER INDICATOR
Appears when the compander function
* Analog mode operation only
t SCRAMBLER INDICATOR
A ppears when the voice scrambler or encryption function
is activated.
3
r
t
y
u
!0
Strong
is activated.
*
y BELL INDICATOR
i
A ppears/blinks when the specific page call
depending on how the transceiver has been pre-pro-
grammed.
o
* P25 operation only
u TELEPHONE INDICATOR
Appears when a phone call* is received.
* P25 operation only
i SHORT MESSAGE INDICATOR
A ppears when an Status message or Short message is
received.
o ALPHANUMERIC DISPLAY
D isplays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
!0 ACTIVATED KEY INDICATOR
A ppears above the key assigned as [Scan Add/Del (Tag)]
key when that key has been activated.
See the operating guide for details of Analog and P25
Trunking/Conventional system operations. Consult your
Icom dealer or system operator for details concerning
your transceiver's programming.
