1

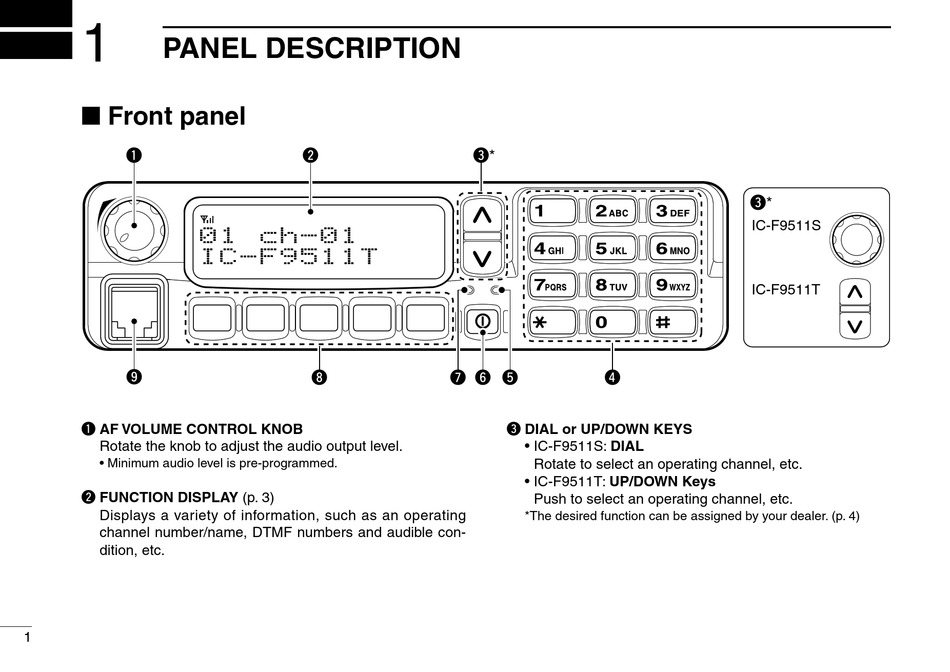

PANEL DESCRIPTION

n Front panel
q
0 1
I C - F 9 5 1 1 T
o
q AF VOLUME CONTROL KNOB
Rotate the knob to adjust the audio output level.
• Minimum audio level is pre-programmed.
w FUNCTION DISPLAY (p. 3)
D isplays a variety of information, such as an operating
channel number/name, DTMF numbers and audible con-
dition, etc.
1
w
c h - 0 1
i
e*
u y t r
e DIAL or UP/DOWN KEYS
• IC-F9511S: DIAL
Rotate to select an operating channel, etc.
• IC-F9511T: UP/DOWN Keys
Push to select an operating channel, etc.
*The desired function can be assigned by your dealer. (p. 4)
e*
IC-F9511S
IC-F9511T
