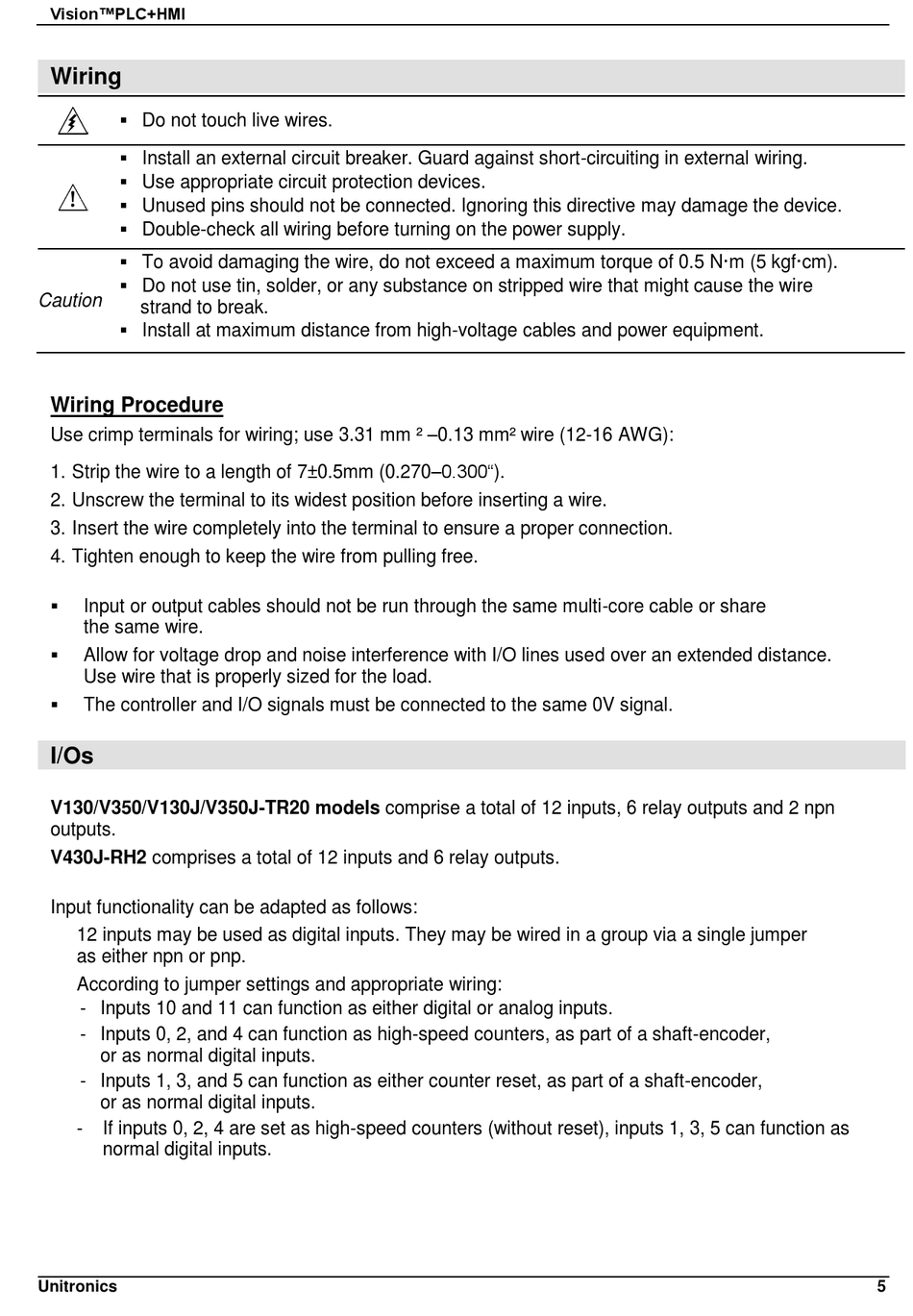

Wiring
 Do not touch live wires.
 Install an external circuit breaker. Guard against short-circuiting in external wiring.
 Use appropriate circuit protection devices.
 Unused pins should not be connected. Ignoring this directive may damage the device.
 Double-check all wiring before turning on the power supply.
 To avoid damaging the wire, do not exceed a maximum torque of 0.5 N·m (5 kgf·cm).
 Do not use tin, solder, or any substance on stripped wire that might cause the wire
Caution
strand to break.
 Install at maximum distance from high-voltage cables and power equipment.
Wiring Procedure
Use crimp terminals for wiring; use 3.31 mm ² –0.13 mm² wire (12-16 AWG):
1. Strip the wire to a length of 7±0.5mm (0.270–0.300").
2. Unscrew the terminal to its widest position before inserting a wire.
3. Insert the wire completely into the terminal to ensure a proper connection.
4. Tighten enough to keep the wire from pulling free.

Input or output cables should not be run through the same multi-core cable or share
the same wire.

Allow for voltage drop and noise interference with I/O lines used over an extended distance.
Use wire that is properly sized for the load.

The controller and I/O signals must be connected to the same 0V signal.
I/Os
V130/V350/V130J/V350J-TR20 models comprise a total of 12 inputs, 6 relay outputs and 2 npn
outputs.
V430J-RH2 comprises a total of 12 inputs and 6 relay outputs.
Input functionality can be adapted as follows:
12 inputs may be used as digital inputs. They may be wired in a group via a single jumper
as either npn or pnp.
According to jumper settings and appropriate wiring:
- Inputs 10 and 11 can function as either digital or analog inputs.
- Inputs 0, 2, and 4 can function as high-speed counters, as part of a shaft-encoder,
or as normal digital inputs.
- Inputs 1, 3, and 5 can function as either counter reset, as part of a shaft-encoder,
or as normal digital inputs.
- If inputs 0, 2, 4 are set as high-speed counters (without reset), inputs 1, 3, 5 can function as
normal digital inputs.
