Connecting the RS-232 Extender

i
Figure 1
• Connect the local and remote RS-232 extender units to each other using a
CAT 5 cable.
• Up to 330m (1000ft), connect a power adapter to either the local or remote
RS-232 extender unit.
• For distances of more than 330m (1000ft) connect a power adapter to both
the local and remote RS- 232 extender units. Additional power adapters can
be ordered from Kramer.
Once connected, the RS-232 Extender system is ready to transmit RS-232
signals.

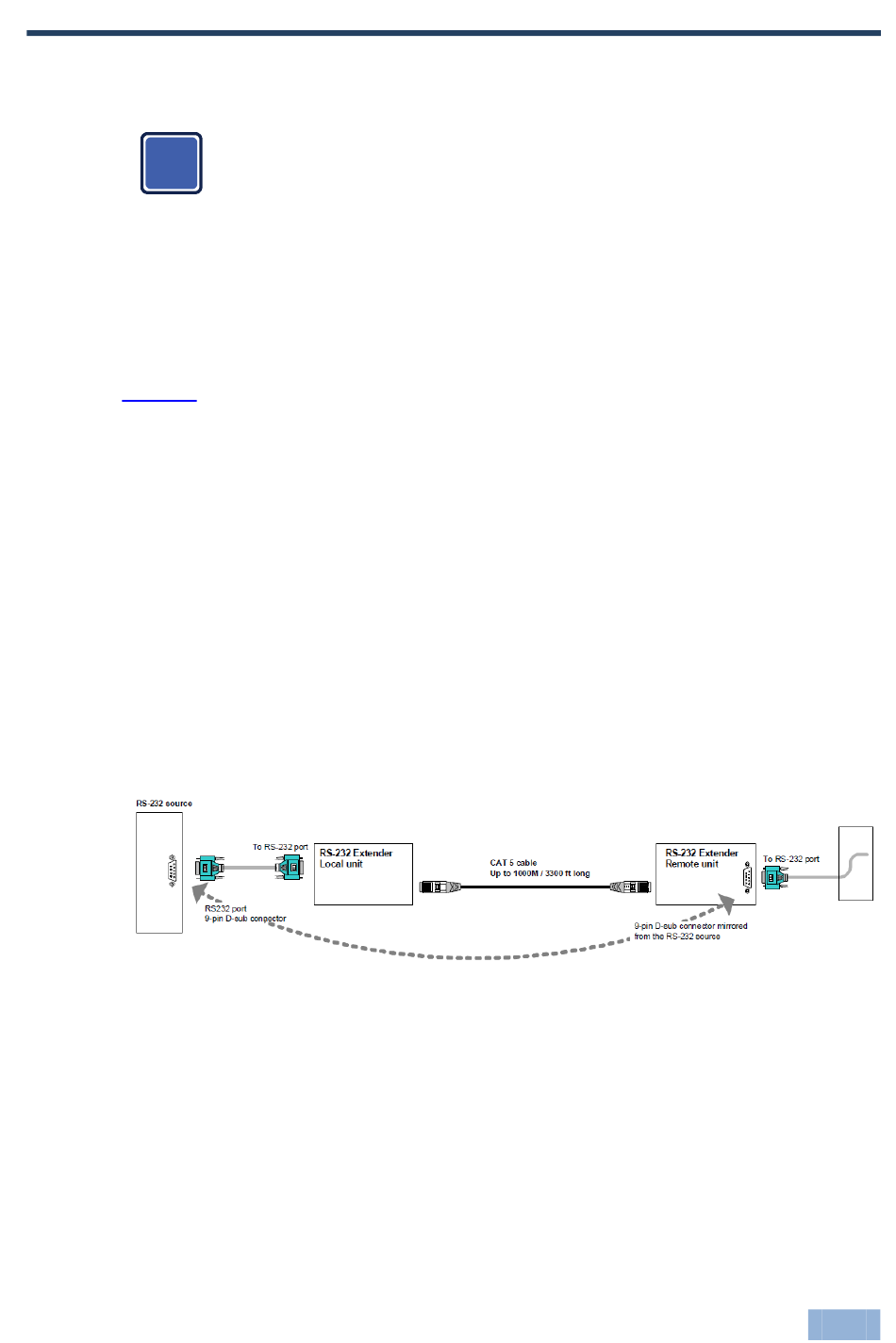

Figure 1: RS-232 Extender Connection Diagram
RS-232 Extender - Connecting the RS-232 Extender
Always switch off the power to each device before connecting it to your
RS-232 Extender. After connecting your RS-232 Extender, connect
its power and then switch on the power to each device.
Note! In the RS-232 Extender system, the CAT 5 cables carry
electrical power. Do NOT connect them to any other device. To avoid
this, we recommend that you attach the stickers provided to the ends
of the CAT 5 cable.
illustrates the RS-232 Extender connections.
