StarTech.com ARMSLIM Manual page 8

Slim desk mount articulating monitor arm with cable management

Table of Contents

Grommet Mount

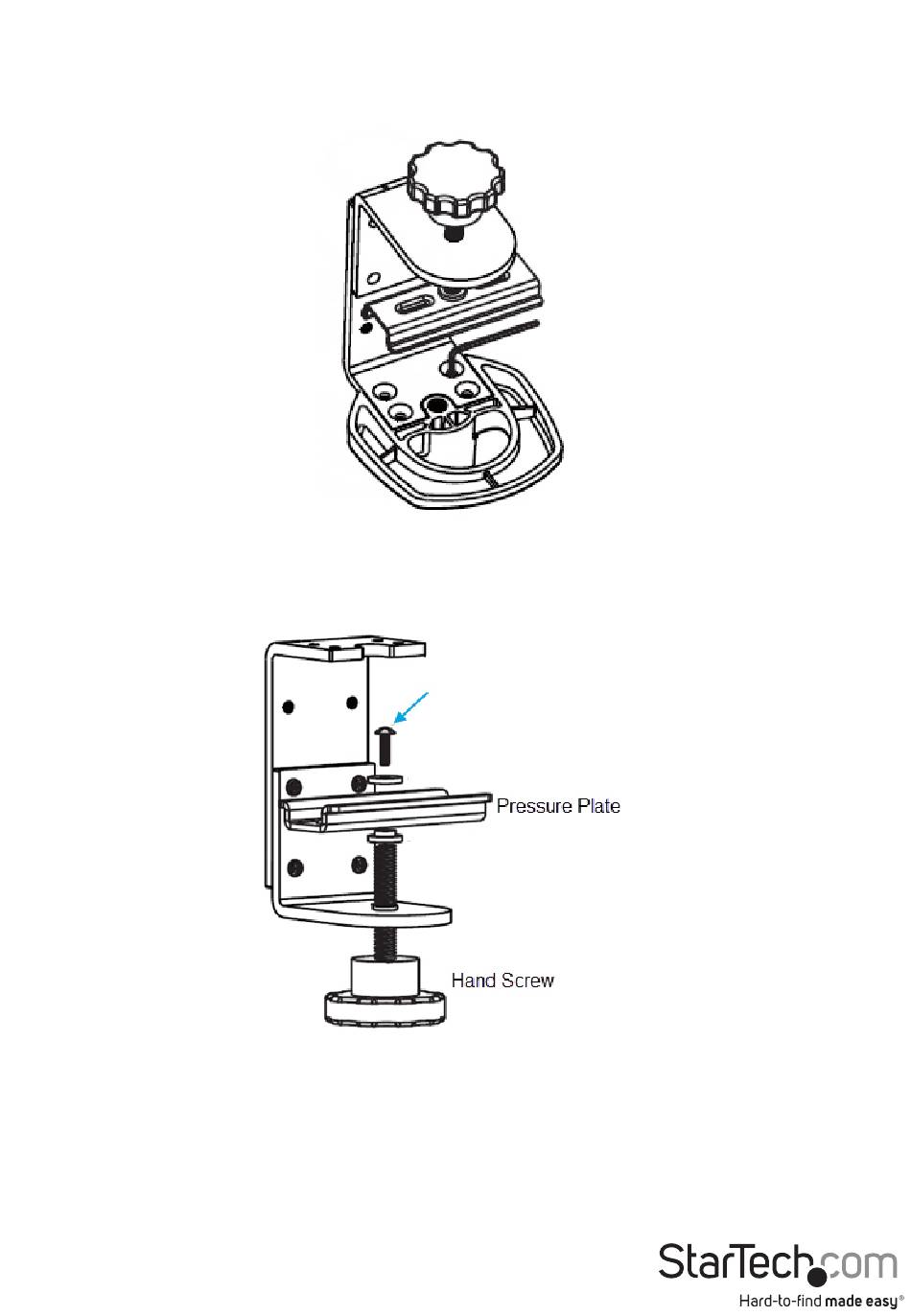

1. To convert the 2-in-1 Clamp to a Grommet Mount, turn the Clamp upside-down and

remove the 4 screws that join the clamp to the base of the monitor arm, using the

3mm Allen Wrench (5).

2. Remove the Phillips Screw and the 2 Washers from the top of the Pressure Plate and

then slide the Hand Screw out of the clamp.

3. Slide the Pressure Plate back onto the Hand Screw (without the Washers or Phillips

Screw from above).
