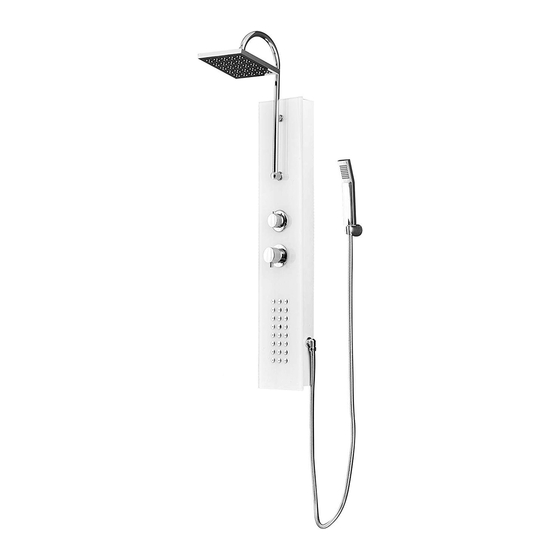

Luxier SP02-GS
Features
- Stunning stylish European inspired design
- Elegant off white safety tempered glass panel
- Durable light weight aluminum frame construction
- Chrome brass shower arm (10" reach)
- 8" chrome round ABS rainfall shower head
- 24 horizontal spray nozzle jets- Tempered glass shelf
- Contemporary ABS hand shower
Luxier
1
SP02-GS Rev. A2 092016
Advertisement
Related Manuals for Luxier SP02-GS
Summary of Contents for Luxier SP02-GS
- Page 1 - Durable light weight aluminum frame construction - Chrome brass shower arm (10” reach) - 8” chrome round ABS rainfall shower head - 24 horizontal spray nozzle jets- Tempered glass shelf - Contemporary ABS hand shower Luxier SP02-GS Rev. A2 092016...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP02-GS Rev. A2 092016...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Luxier SP02-GS Rev. A2 092016...
- Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI Average Flow Rate: 2.99 gpm at 80 PSI 254mm 10” 200mm 7.87” 1,240mm 48.82” 1,000mm 39.37” 680mm 26.77” 460mm 18.11” 105mm 4.13” 75mm *All Measurements are Approximate 2.95” Luxier SP02-GS Rev. A2 092016...
- Page 6 03. Shower Head 04. Hand Shower 05. Hand Shower Cradle 06. Hose 07. Water Supply Connector 08. Gasket 09. Hand Shower Connector 10. Screws X 6 11. Mounting Brackets X 2 12. Wall Anchors X 6 Luxier SP02-GS Rev. A2 092016...
-
Page 7: Installation
PVC tubing to complete the connection. 3. Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 680 mm or 26.77”) 680mm 26.77” Luxier SP02-GS Rev. A2 092016... - Page 8 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP02-GS Rev. A2 092016...
- Page 9 (NOTE: Install the rubber washer to prevent leak.) 9. Place the hand shower cradle at desired location (preferably on the right side of the panel) and follow step 4 when drilling and mounting the cradle. Luxier SP02-GS Rev. A2 092016...
- Page 10 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP02-GS Rev. A2 092016...
