2.2.8

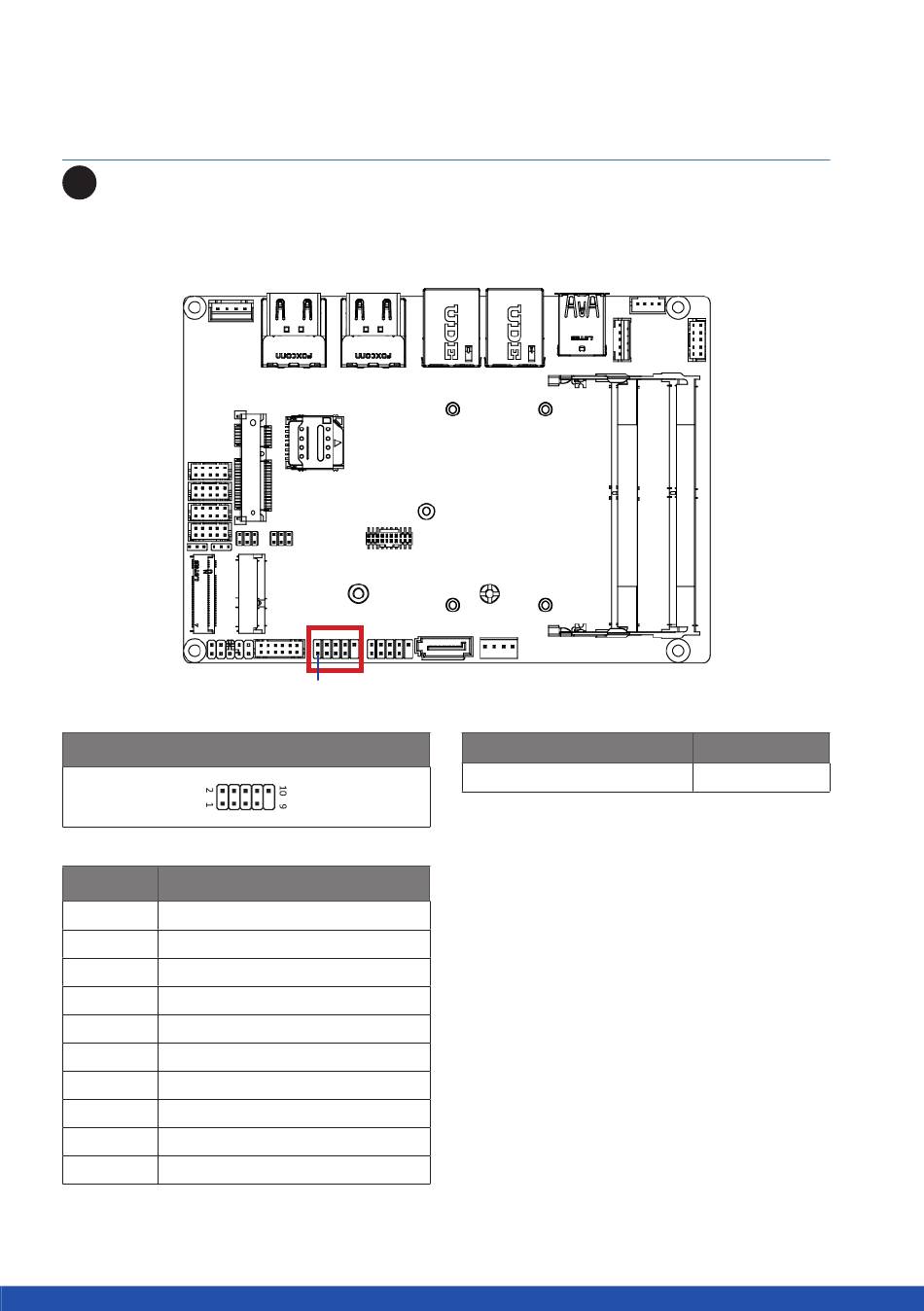

FUSB2_1 (USB 2.0 header)
8
USB 2.0 Header
Pin No.
1
2
3
4
5
6
7
8
9
10
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Pin 1
Definition
5V
5V
DX-
DY-
DX+
DY+
GND
GND
No Pin
No Connect
Connector PN
210-92-05G117
www.gigaipc.com
Vendor
PINREX
28
