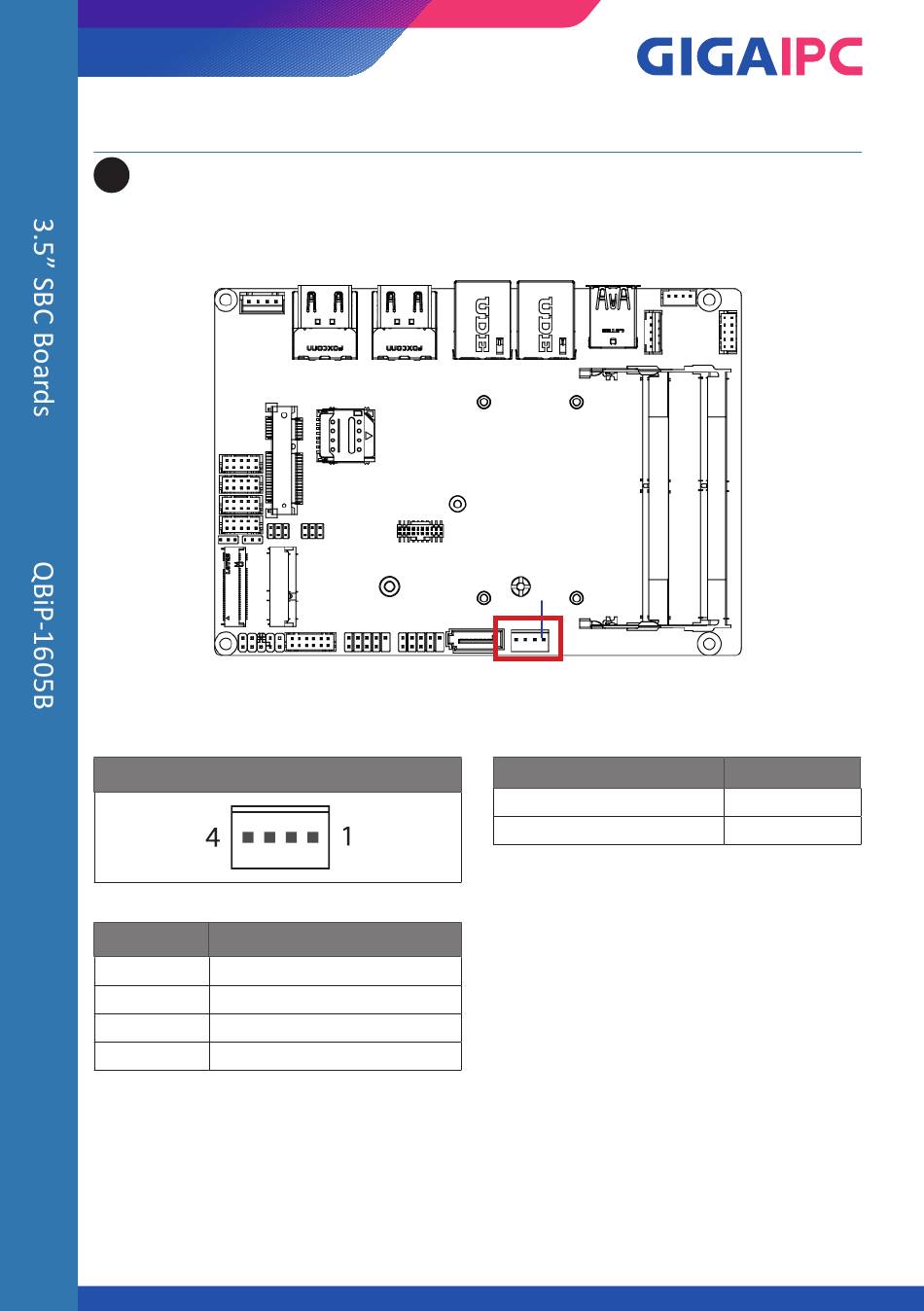

2.2.5
SATAPW (SATA 6 Gb/s power connector)
5
Hard Disk Power Connector
Pin No.
1
2
3
4
25
www.gigaipc.com
Definition
12V
GND
GND
5V
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Pin 1
Connector PN
743-81-04TW00
WF04Q2-3BJQ000
Vendor
PINREX
HORNGTONG
