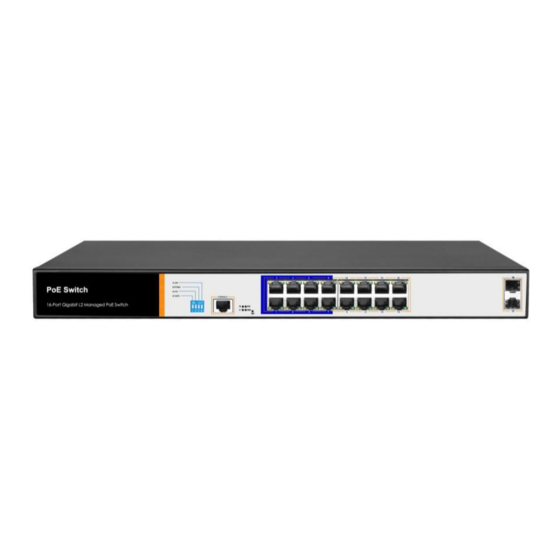

- Page 1 User manual PS3016GS 16 Port Gigabit Layer 2PoE Switch...
- Page 2 Installation manual introduction The Product installation manual mainly describes PS3016GSPoE switch hardware features, installation methods, and precautions during the installation This manual includes the following chapters: Chapter 1: Product Introduction. Briefly describes the basic features, Detailed hardware & software specifications of the switch and the appearance details.
-
Page 3: Chapter 1： Product Introduction
Chapter 1： Product Introduction 1.1 Products description PS3016GS is managed PoE switch for security transmission and WIFI coverage, meet the need of PoE power supply for WIFI AP, IP-camera, WIFI bridge, IP phones and other types of equipment. New generation of high-performance hardware and software... - Page 4 1.2 Product Features Full Gigabit Port 16 1000Mbps RJ45 ports (support PoE power supply) with 2 Gigabit SFP ports, Data transmission is not jammed. Realtek chip, the performance is more stable and powerful Realtek high-performance chip can greatly improve network data processing rate Convenient operation ·...
-
Page 5: Product Specification
maintenance management easy 1.3 product specification Hardware Specifications Chipset RealtekHigh Performance Chipset Flash 16MB 128M DDR Port 16 10/100/1000Mbps RJ45 ports 2 Gigabit SFP ports 1 Console port 16 10/100/1000Mbps RJ45 port support PoE Max 150W Single port max 46W LEDs 18 Link/Act LEDs 16 POE LEDs... - Page 6 Input 100-240V/50-60Hz Dimension 440mm×180mm×44mm （L×W×H） Software Specifications IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet IEEE 802.3z:1000BASE-X gigabit Ethernet （fiber） IEEE 802.3ad: comply link aggregation standard Network standard IEEE 802.3x: flow control IEEE 802.1p: About the traffic priority of the second layer of Qos / Cos protocol (multicast filtering)
- Page 7 One key QoS (Video priority) One key AI power supply DHCP DHCP Snooping Support 4K VLAN VLAN Support 802.1Q VLAN、Port VLAN、Voice VLAN Comply the IEEE 802.1d standard Support MAC address learning and aging MAC address table automatically Support static, dynamic, filter address table Password protection Support based on the port number, IP address, MAC address restrictions on user...
- Page 8 Support 802.1X AAA Support port security, port isolation Support CPU protection Support setting the PoE port priority Support viewing POE Chip Status Support setting PoE power supply period Support setting port power Support L2(Layer 2)～L4(Layer 4) packet filtering function Access control (ACL) Support port mirroring, port redirection, flow rate limit, QoS re-marking Support 8 port queue...
- Page 9 Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Spanning Tree Support loop protection, BPDU protection Support for multicast suppression Support broadcast suppression Storm suppression Support for unknown unicast suppression Support static aggregation Support dynamic aggregation Link aggregation Support IP, MAC, hybrid load balancing mode Supports up to 32 aggregation groups IPv6...
- Page 10 Front Panel Including indicators, RJ45 port, DIP switch, RST button, SFP port, CONSOLE port, as shown below indicator PS3016GS The indicator working status is shown as the following table The indicator working status is shown as the PS3016GS following table...
- Page 11 Work Indicators Title Color Description status Solid Power is normal No power, the power Power POWER switch is not turned indicator on, power supply is abnormal The corresponding RJ45 port is connected Solid to the powered device and the power supply is normal power Yellow...
- Page 12 AI power supply: Detect PD, power failure and restart dead equipment RJ45 Port PS3016GS with 16 10/100/1000Mbps PoE port, all ports support IEEE802.3af and IEEE802.3at standard SFP Port PS3016GS provides 2 Gigabit SFP optical ports (17,18), can be inserted into the Gigabit SFP module RST Button ...
- Page 13 restarting state. When the SYS lamp restarts, the device restarts. When the switch is powered on, press and hold the button for more than 5s to release the button and enter the reset state. When SYS is re-lit, the device is reset successfully Console port ...
-
Page 14: Chapter2 Hardware Connection
Chapter2 Hardware connection 2.1 RJ45 port connection Connect the RJ45 port of the switch and the corresponding network device via cables, the POE power supply function of the switch is default enabled on the downlink port of the switch, which can be used for IEEE802.3af or IEEE802.3at standards powered devices such as APs, bridges, and network cameras Note：... - Page 15 Do not connect the RJ45 port to the phone line 2.2 SFP Port connection PS3016GS SFP port only support Gigabit fiber module. Recommended use of standard SFP module products The process of installing a fiber module on a switch is as follows: 1、...
-
Page 16: Device Initialization
2.3 Check before power on Check whether the outlet power supply meets the switch specifications; Check the power, switches, racks and other equipment have been properly grounded; Check whether the switch and other network devices are connected properly 2.4 Device initialization The switch automatically initializes when the power switch is turned on. - Page 17 Chapter3 Installation 3.1 Installation Precautions Note：To avoid improper use of equipment damage and personal injury, please observe the following precautions Installation safety precautions The power should be kept off during the installation, while wearing anti-static wrist, and to ensure well touch between anti-static wrist and skin to avoid potential safety hazard;...
- Page 18 High or low humidity easily lead to leakage of insulation materials, deformation and even the corrosion of metal parts, the temperature is too high will accelerate the aging process of insulating materials, seriously affecting the service life of equipment. The normal operation of this series of switches and storage temperature / humidity are as follows Environmental temperature...
- Page 19 1. Regular dust, keep the indoor air clean; 2 .Make sure the equipment is well grounded to ensure smooth transfer of static electricity Electromagnetic interference Electromagnetic interference have an impact on the device capacitance, inductance and other electronic components by capacitance, inductive coupling, impedance coupling and other conductive, in order to reduce the adverse effects caused by electromagnetic interference, please note the...
-
Page 20: Installation Method
3.2 Installation method standard 19-inch frame PS3016GS is designed according to the size of 19-inch standard rack. It can be easily installed on the rack. The specific installation steps are as follows. - Page 21 3、place the switch in an appropriate place in the rack and be supported by the bracket. Screw the L-shaped bracket to the guide groove fixed on both ends of the rack to ensure that the switch is stable and horizontally installed on the rack Note：...
- Page 22 3.3 Web Login Step1、In the normal operation of the device, connect the computer to the switch's RJ45 port by network cables Step 2、 Manually changed the computer IP address to 192.168.254.X (X is 2 ~ 254), subnet mask is 255.255.255.0 Step3、Open computer's browser, type 192.168.254.1 in the address box, hit the Enter key...
- Page 23 Step4、 Enter the default username and password “admin” and then click Login Step5、Entered the switch web management interface successfully when you see picture as below, you can begin to configure the switch...
- Page 24 Chapter 4: Packaging and product usage suggestions 4.1 Open the package carefully check the following list Commodity Quantity Description PoE switch 1pcs Power cord 1pcs Optional Bracket 2pcs Fixed on rack mount After-sale Used for after-ale service card service User manual 1pcs Guide users to install switch...
- Page 25 7. Do not use the switch in places with excessive dust and electromagnetic radiation. Do not use the switch in a place with high temperature and no ventilation; 8. Please do not place heavy objects on the switch to avoid accidents;...
