Summary of Contents for Hored IS108S-4F
- Page 1 User Manual IS108S-4F 12-port Gigabit Managed Industry Switch...
- Page 2 Installation Manual Introduction <User Manual> mainly introduces the hardware features, installation methods, and precautions during the installation of IS108GS-4F. This manual includes the following sections: Chapter 1: Product introduction. Briefly describe the basic functions and features of the switch, detailed hardware and software specifications and appearance information.
-
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1 Product introduction The IS108GS-4F is a 12-port Gigabit-managed industrial Ethernet switch that provides 8 Gigabit ports and 4 Gigabit SFP ports. It is especially suitable for applications where AC power is not easily available or high wiring costs. It support EMC industrial grade 4 protection;... - Page 4 8 full Gigabit RJ45 network port, and 4 Gigabit SFP ports, breaking the traditional 100M limitation, data transmission will not stuck Broadcom high performance industrial grade chip for more stable performance Broadcom high-performance industrial-grade chips that dramatically increase network data processing rates Powerful working environment EMC industrial grade 4 protection;...
- Page 5 1.3 Software and hardware specifications Hardware specification Chip Broadcom high performance chip Flash 16MB 64MBDDR 8 x10/100/1000M RJ45 Port Port 4 x 1000M SFP Port 12 Link/Act Indicator Indicator ALM Alarm indicator P1、P2 Power Indicator 1 SYS Indicator Forward mode: store and forward Backplane bandwidth: 24Gbps Performance Packet forwarding rate: 17.8Mpps...
- Page 6 IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad: Standard method for performing link aggregation IEEE 802.3x: Flow Control IEEE 802.1p: LAN Layer 2 Qos/Cos protocol for traffic prioritization (multicast filtering) IEEE 802.1q: VLAN Bridge Operation IEEE 802.1d: STP spanning tree IEEE 802.1s: MSTP Spanning Tree...
- Page 7 IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±6kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) Working temperature: -40 ~ 75 ° C Operation Storage temperature: -40 to 75 °...
- Page 8 Warranty 3 years Lightning Network port: ±6KV power port: ±4KV protection Contact: ±8KV Air: ±15KV Input:12-56VDC Housing: IP40 grade protection, corrugated high Physical strength metal housing specification Installation: DIN rail mounting Size:163mm×46.5mm×110mm，weight：1kg Software specification...
- Page 9 Global control AI Loop Protect button AI Extend Hardware watchdog Support Traffic Statistics Support Port energy saving Support DHCP Support DHCP Snooping Support 4KVLANs VLAN Support 802.1QVLAN、 MAC VLAN ,IP VLAN Voice VLAN Follow the IEEE 802.1d standard Support MAC address automatic learning MAC address and aging Support static, dynamic, filtering address...
- Page 10 Support HTTPS、 SSLV3、 TLS V1、 SSHV1/V2 Support IP-MAC-PORT ternary binding Support protection, source protection, DoS protection Support DHCP Snooping and DHCP attack protection Support 802.1X authentication, AAA Support port security, port isolation Support CPU protection Support 8 port queues Support port priority, 802.1P priority, DSCP priority Supports WRR,...
- Page 11 Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Spanning tree Support loop protection, root bridge protection, protection, BPDU protection, BPDU filtering SupporIGMPv1/v2 Snooping Support fast leave mechanism Multicast Support multicast VLAN Supports multicast filtering, packet statistics, and unknown multicast discards. Support multicast suppression Storm suppression Support broadcast suppression...
- Page 12 Support up to 32 aggregation groups Support IPv6 Ping、 IPv6 Tracert、 IPv6 Telnet IPv6 Support IPv6 SSH 、IPv6 SSL Support WEB network management (HTTP, HTTPS, SSLV3) Support CLI (Telnet, SSHV1/V2, local serial port) Support SNMP V1/V2/V3, Support LLDP、RMON Management Support protection, source maintenance...

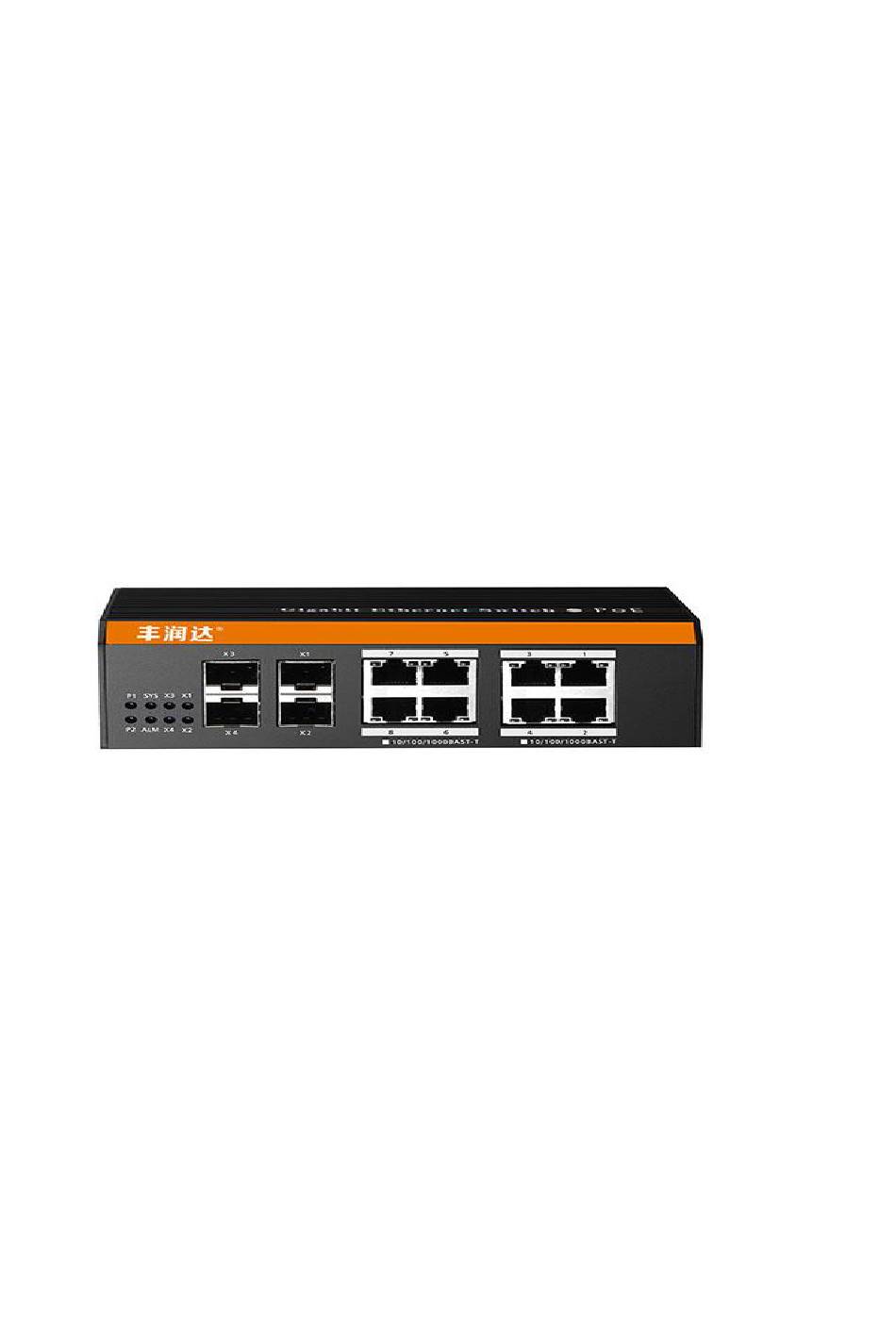

- Page 13 Support Ping, Tracert detection, cable detection 1.4 Appearance...
- Page 14 Indicator Status Description P1、P2 The corresponding power supply working normally. The corresponding power supply is not connected or working abnormal. Blinking System is running normally Off / System operation is abnormal / start always unsuccessful bright Alarm start up Alarm not triggered Link/ACT Blinking SFP port is working normal...
-
Page 15: Chapter 2. Hardware Connection
Chapter 2. Hardware Connection 2.1 Connect to RJ45 port Connect the switch and the RJ45 port of the network device with a network cable. 2.2 Connect to the SFP port The SFP port of the IS108GS-4F supports only Gigabit fiber modules. - Page 16 along the SFP port slot of the switch until the fiber module is in close contact with the switch; 2. Confirm the Rx and Tx ports of the fiber module when connecting. Insert one end of the fiber into the Rx and Tx ports to ensure that the Tx and Rx ends of the interface are correctly connected, and the other end of the fiber is connected to another device.
- Page 17 2.3 Check before power-on Check that the power supply of the power outlet meets the switch specifications. Check that the power supply, switch, and rack are properly grounded. Check whether the switch is connected to other network devices. 2.4 Device initialization The switch will automatically initialize after the power is turned on and the power switch is turned on.
-
Page 18: Chapter 3, Product Installation
Chapter 3, Product Installation Before installation, confirm the operating environment of the equipment: power supply voltage, installation space, installation method, etc. Please carefully confirm the following installation requirements: - Check for cables and connectors required for installation - Check whether the cable is in place (not more than 100m) according to reasonable configuration requirements. - Page 19 Relative humidity: 5% to 95% (no condensation) Power input 5pin 5.08mm terminal Input range: 12-56V DC P1&P2 dual redundant power supply, Support reverse connection protection Ground protection Connect to ground Rail mounting...
-
Page 20: Chapter 4, Packing List And Use Recommendations
Chapter 4, Packing list and use recommendations 4. 1 Product packaging Item Quantity Description Switch 1 set 1*5,1*2 Connect to power and alarm Phoenix terminal each per switch one unit Warranty card 1 piece For after-sales maintenance User Manual 1 copy Used to guide users to install switches 4.2 Recommendations... - Page 21 3. Do not use the switch in a humid environment to prevent water from entering the fuselage through the casing, resulting in damage to the machine; 4. In the state of power-on of the product, please do not plug and unplug the cable if non special case; 5.
