- Page 1 User manual PS2024G 24 Port Gigabit Layer 3 PoE Switch...
- Page 2 Installation manual introduction The Product installation manual mainly describes PS2024GPoE switch hardware features, installation methods, and precautions during the installation This manual includes the following chapters: Chapter 1: Product Introduction. Briefly describes the basic features, Detailed hardware & software specifications of the switch and the appearance details.
-
Page 3: Chapter 1: Product Introduction

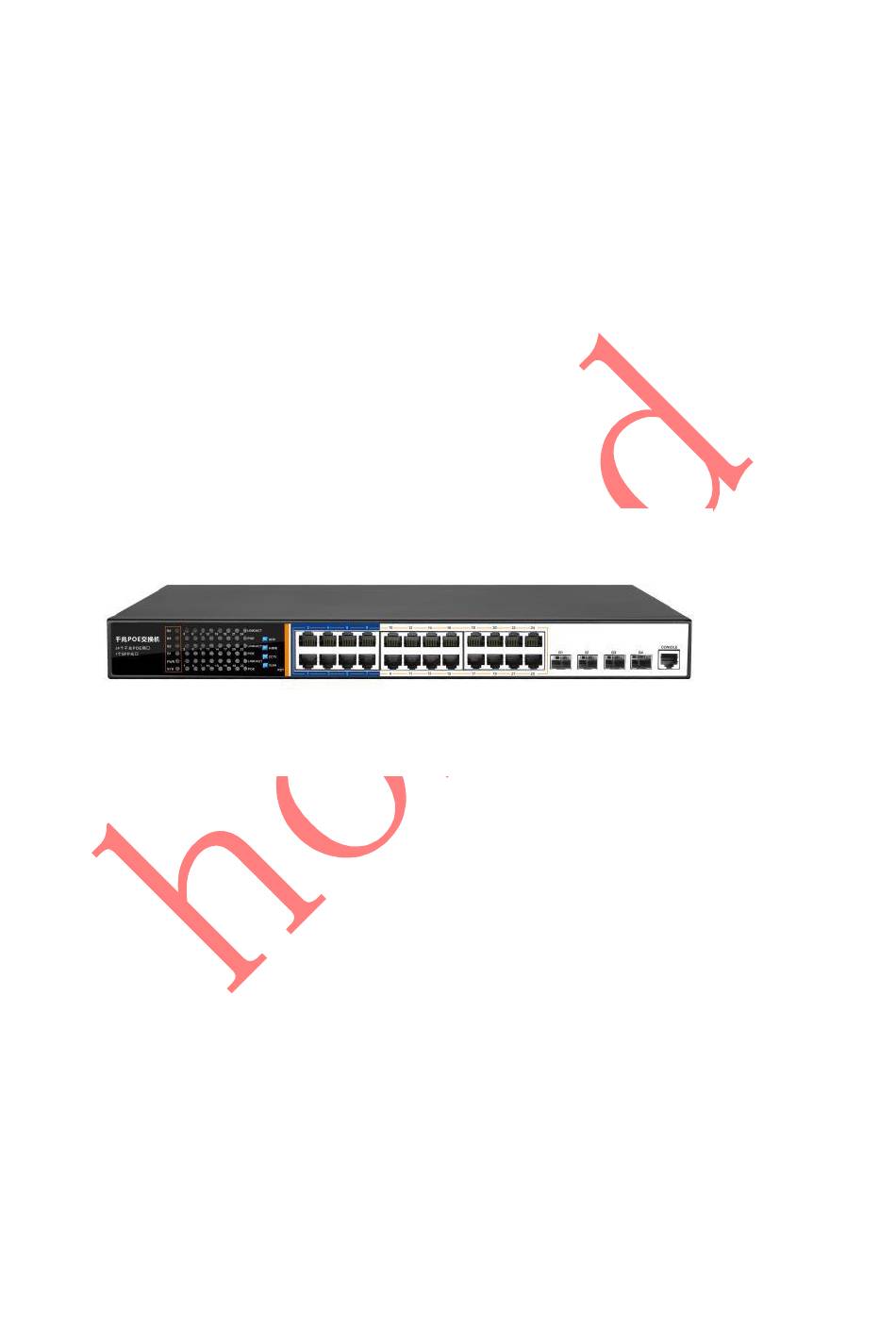

Chapter 1: Product Introduction 1.1 Products description PS2024G is managed PoE switch for security transmission and WIFI coverage, meet the need of PoE power supply for WIFI AP, IP-camera, WIFI bridge, IP phones and other types of equipment. New generation of high-performance hardware... - Page 4 Realtek high-performance chip can greatly improve network data processing rate Convenient operation · AI VLAN mode: Separating 1-8 ports from each other, can effectively restrain network storm and improve network performance. · AI Extend mode: Designed for monitoring application scenarios, 1-8 ports support 250 meters long distance power supply.
- Page 5 1.3 product specification Hardware Specifications Chipset BroadcomHigh Performance Chipset Flash 16MB 256M DDR 24 10/100/1000Mbps RJ45 ports Port 4 Gigabit SFP ports 1 Console port 24 10/100/1000Mbps RJ45 port support PoE+ Max 400W Single port max 46W 28 Link/Act LEDs 24 POE LEDs LEDs 1 Power LED...
- Page 6 Input 100-240V/50-60Hz Dimension 440mm×320mm×44mm （L×W×H） Software Specifications IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet IEEE 802.3z:1000BASE-X gigabit Ethernet （fiber） IEEE 802.3ad: comply link aggregation standard Network standard IEEE 802.3x: flow control IEEE 802.1p: About the traffic priority of the second layer of Qos / Cos protocol (multicast filtering)
- Page 7 One key Exnted(1-8 port 250meters PoE distance) One key QoS (Video priority) One key AI power supply Watchdog support Flow statistics support Port Energy Saving Support DHCP Support DHCP server Support DHCP Relay Support DHCP Snooping Route Support RIP V1/V2 Dynamic routing Support static routing OSPFv2、OSPFv3 Support 4K VLAN...
- Page 8 Support based on the port number, IP address, MAC address restrictions on user access Support HTTPS、SSL V3、TLS V1、SSH V1/V2 Based on user rating management and password protection Support IP-MAC-PORT Support ARP protection, IP sources protection, DoS protection Support DHCP Snooping、DHCP attack protection Support 802.1X AAA Support port security, port isolation...
- Page 9 Support 8 port queue Support port priority, 802.1p priority, DSCP priority Support SP、RR、WRR、WFQ Priority scheduling algorithm Support automatically identify, manage and acquire of connected equipment information Support IGMP v1/v2 Snooping Support static multicast Multicast Support multicast VLAN Support multicast filtering, message statistics, unknown multicast discarding Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol...
- Page 10 Support dynamic aggregation Support IP, MAC, hybrid load balancing mode Supports up to 32 aggregation groups Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet IPv6 Support IPv6 SSH 、IPv6 SSL Support WEB management（HTTP、 HTTPS、SSL V3） Support CLI（Telnet、local serial port） Support SNMP V1/V2/V3 Support LLDP、RMON Management and Support ARP Protection, IP Source maintenance...
- Page 11 Front Panel Including indicators, RJ45 port, DIP switch, RST button, SFP port, CONSOLE port, as shown below indicator PS2024G The indicator working status is shown as the following table PS2024G The indicator working status is shown as the following table...
- Page 12 Work Indicators Title Color Description status Solid Power is normal Power No power, the power POWER indicato switch is not turned on, power supply is abnormal The corresponding RJ45 port is connected to the Solid powered device and the power supply is normal power Yellow...
-
Page 13: Shortcut Button
250 meters VLAN: Isolating ports 1-8 from each other, suppress network storms effectively and improve network performance AI power supply: Detect PD, power failure and restart dead equipment RJ45 Port PS2024G with 24 10/100/1000Mbps PoE port, all... -
Page 14: Console Port
When the switch mode of operation is CCTV mode, 1-8 port can support 250 meters power supply SFP Port PS2024G provides 4 Gigabit SFP optical ports (SFP1, SFP2), can be inserted into the Gigabit SFP module RST Button... - Page 15 Back Panel Including: power socket, power switch, ground terminal Power socket A 100-240VAC 50/60 Hz power receptacle for accommodating the supplied power cord Ground terminal Please use the grounding wire to prevent lightning. To avoid product lightning strikes and extend product life...
- Page 16 Chapter2 Hardware connection 2.1 RJ45 port connection Connect the RJ45 port of the switch and the corresponding network device via cables, the POE power supply function of the switch is default enabled on the downlink port of the switch, which can be used for IEEE802.3af or IEEE802.3at standards powered devices such as APs, bridges, and network cameras Note：...
- Page 17 Do not connect the RJ45 port to the phone line 2.2 SFP Port connection PS2024G SFP port only support Gigabit fiber module. Recommended use of standard SFP module products The process of installing a fiber module on a switch is as follows: 1、grasp the optic fiber module from the side, insert it...
-
Page 18: Device Initialization
Note： DO NOT excessive bending fiber, the radius of curvature should not be lessthan 10cm; Ensure the cleanliness of the fiber surface; Please DO NOT look directly into the optical fiber connector with your eyes as this may cause eye injury 2.3 Check before power on Check whether the outlet power supply meets the switch specifications;... -
Page 19: Installation Precautions
Port LEDs indicates the connection status of each port, indicating that the switch has started to work normally Chapter3 Installation 3.1 Installation Precautions Note：To avoid improper use of equipment damage and personal injury, please observe the following precautions Installation safety precautions ... - Page 20 damage To avoid the risk of electric shock, do not open the case while the switch is working. Do not open the case even when it is not powered Before cleaning the switch, unplug the switch from the power cord and do not wipe it with wet cloth.
- Page 21 Products with this logo are only for safe use in areas below 2000m altitude Dust-proof Dust on the switch surface will cause electrostatic adsorption, poor contact of the metal contacts. Although the device itself has done some measures in anti-static, but when the static electricity exceeds a certain intensity, it will still cause fatal damage to the electronic components on the internal circuit board.
- Page 22 1. Power supply system to take the necessary anti-grid interference measures; 2. Switches should be far away from high-frequency high-power, high-current devices, such as wireless transmitters; 3. If necessary, take electromagnetic shielding measures Lightning protection When a lightning strike occurs, a strong current will be generated in an instant cause fatal damage to electronic equipment.
- Page 23 3.2 Installation method PS2024G supports desktop mounting and rack mount.: 1、 Check rack grounding and stability； 2、Install the two L-brackets in the accessory on each side of...
- Page 24 Note： Good grounding rack is anti-static equipment, anti-leakage, lightning protection, anti-jamming important guarantee, so to ensure that the rack ground wire properly installed; Installation equipment within the rack from the bottom up, to avoid overload installation; Avoid placing other heavy objects on switch to avoid accidents;...
- Page 25 Step3、Open computer's browser, type 192.168.254.1 in the address box, hit the Enter key Step4、Enter the default username and password “admin” and then click Login...
- Page 26 Step5、Entered the switch web management interface successfully when you see picture as below, you can begin to configure the switch...
- Page 27 Chapter 4: Packaging and product usage suggestions 4.1 Open the package carefully check the following list Commodity Quantity Description PoE switch 1pcs Power cord 1pcs Optional Bracket 2pcs Fixed on rack mount After-sale Used for after-ale service card service User manual 1pcs Guide users to install switch...
- Page 28 7. Do not use the switch in places with excessive dust and electromagnetic radiation. Do not use the switch in a place with high temperature and no ventilation; 8. Please do not place heavy objects on the switch to avoid accidents;...
