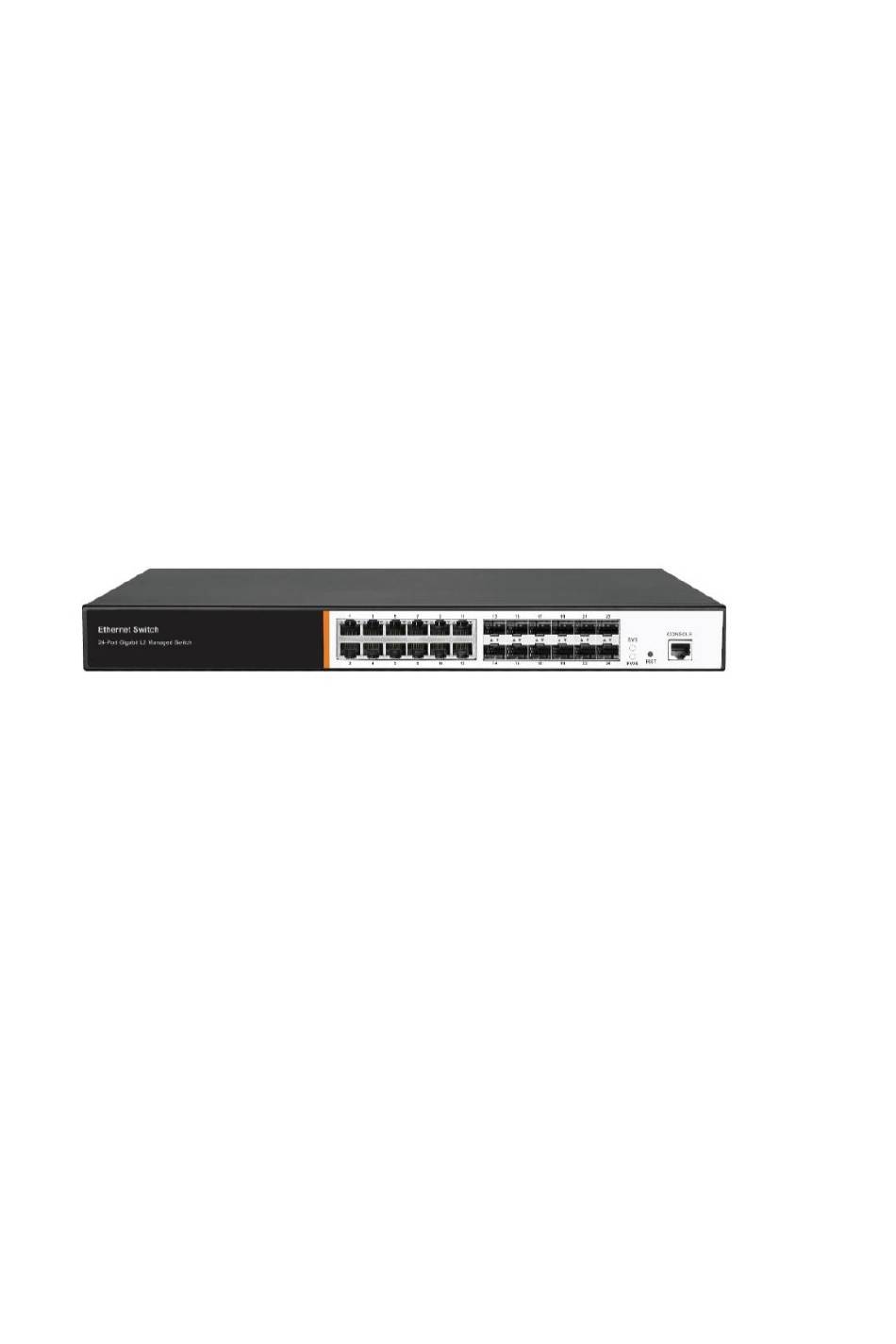

- Page 1 User Manual S5700-12G-12F 24ports Gigabit Layer3 management switch...
- Page 2 Installation manual The product installation manual mainly introduces the hardware characteristics, installation methods and points to be noted in the installation process of s5700-12G-12F switch. This manual includes the following chapters: Chapter 1: product introduction.Describe the basic functional characteristics of the switch, detailed hardware and software specifications and appearance information.
-
Page 3: Chapter 1 Product Introduction
Chapter 1 product introduction 1.1 product introduction S5700-12G - 12F is specially designed for building high- performance full gigabit network requirements of gigabit managed switches on the second floor, all products using a new generation of high-performance hardware and software platform, provides a flexible and cost-effective full gigabit RJ45 port and port access convergence SFP, support layer management functions, has complete security protection mechanism, perfect the ACL/QoS policies and... - Page 4 limit, data transmission without delay Broadcom chips, more stable and robust performance Broadcom high performance chip, can greatly improve the network data processing speed Support Apollo cloud platform one-stop management Support the cloud platform to visually manage the resources of switches and PD devices, making operation and maintenance management simpler 1.3 Product hardware/software spec Hareware...
- Page 5 Touch：±6KVAir：±8KV 100-240V/50-60Hz Input Size（L× 440mm×180mm×44mm W×H） Software IEEE 802.3:（MAC）network standard IEEE 802.3i:10BASE-Tnetwork IEEE 802.3u:100BASE-TX speed network IEEE 802.3ab:1000BASE-TGigabit Network IEEE 802.3z:1000BASE-XGigabit Product Network（SFP） standard IEEE 802.3ad:Standard method link aggregation IEEE 802.3x:Traffic Control IEEE 802.1p:LAN layer 2 Qos/Cos protocol for traffic priority (multicast filtering function) IEEE 802.1q:VLAN Bridge operation IEEE 802.1d:STP Tree...
- Page 6 Follow IEEE 802.1d standard Support MACAddress automatic learning and aging Address Support static, dynamic, filter address table Password protection Support user access restrictions based on port number, IP address, MAC address Safe Support HTTPS、SSL V3、TLS V1、SSH Special V1/V2 spec Support IP-MAC-PORT all Support ARP protect、IP protect、DoS protect Support DHCP Snooping、DHCP attack...
- Page 7 DSCP priority Support SP, WRR, WFQ priority scheduling algorithm Support automatic identification, management and acquisition of information Support STP(IEEE 802.1d)，RSTP(IEEE Tree 802.1w)and MSTP(IEEE 802.1s)standard Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering Support IGMP v1/v2 Snooping Multicast Support for quick exit mechanism Support Multicast VLAN...
- Page 8 Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet IPv6 Support IPv6 SSH 、IPv6 SSL Support WEB control（HTTP、HTTPS、 SSL V3） Support CLI（Telnet、SSH V1/V2、 Local port） Support SNMP V1/V2/V3 Manage Support LLDP、RMON Support SNMP standard Maintain Support ARP protect、IP protect、DoS protect Support Apollo Support CPU monitoring 、Storage monitoring Support system log, grading warning Support Ping、Tracert test、line test...
- Page 9 1.4 product appearance Front Contains indicator light, RJ45 port, shortcut function button, RST button, SFP port, CONSOLE port, as shown below Indicator light S5700-12G-12F Indicator light: Workin Indicato name color declaration r light statues lightin Power normal Power Power out , power switch...
- Page 10 RJ45port S5700-12G-12 support 12 units 10/100/1000Mbps ports， SFP port S5700-12G-12F support 12 gigabit SFP Optical module expansion slot, can insert gigabit SFP module RST button When switch is powered on, press the button with a needle and release the device to enter the restart state.
-
Page 11: Chapter 2: Hardware Connection
Chapter 2: hardware connection 2.1 port RJ45 connection The RJ45 port of the switch and the opposite network equipment with the network cable, and the s5700-12g-12f in the networkcan be used as the core and convergence... - Page 12 Do not connect RJ45 to the phone line. 2.2 Connect to the SFP port The s5700-12G-12F SFP port only supports gigabit fiber modules.It is recommended to use standard SFP module products.The installation process of fiber optic...
- Page 13 1.、Grab the fiber module from the side and insert it smoothly along the SFP port slot of the switch until the fiber module is in close contact with the switch; 2.、Confirm the Rx and Tx ports of the optical fiber module during connection, insert one end of the optical fiber into the Rx and Tx ports corresponding to ensure the correct connection between the Tx and Rx ends of the...
-
Page 14: Chapter 3 Product Installation
2.4 device initialization The switch will automatically initialize after the power is turned on and the power switch is turned on. The indicator light will appear as follows: 1、After the power is turned on, the power indicator remains steady. When SYS enters the flashing state, the system runs normally. - Page 15 Before powering on the switch, please make sure that the power circuit is not overloaded, so as not to affect the normal operation of the switch and cause unnecessary damage. To avoid the risk of electric shock, do not open the case while the switch is working, even if it is not charged, do not open it yourself;...
- Page 16 Products with this mark are only suitable for safe use in areas below 2000m above sea level . dustproof Dust falling on the surface of the switch can cause electrostatic adsorption and poor contact of the metal contacts. Although the device itself has made certain measures in anti-static, when the static electricity exceeds a certain intensity, it will still cause fatal damage to the electronic components on the internal circuit board.
- Page 17 enough to cause fatal damage to the electronic device. For better lightning protection, please note the following: 1、Confirm that the rack is in good contact with the ground; 2、Make sure the power outlet is in good contact with the ground; 3、Reasonable wiring to avoid internal induction lightning;...
- Page 18 3、 the switch is placed in position within the frame, is supported by the carriage; screw the L -shaped bracket fixed to the fixed rack guide slot ends, the switch to ensure a stable, horizontally mounted on the machine frame, Note: Good grounding of the rack is an important guarantee for anti- static, anti-leakage, lightning protection and anti-interference of...
- Page 19 3.3 Web Login Step1、,In the normal operation of the device, connect the computer to the switch's RJ45 port by network cables Step2、 Manually changed the computer IP address to 192.168.254.X (X is 2 ~ 254), subnet mask is 255.255.255.0...
- Page 20 Step3、Open computer's browser, type 192.168.254.1 in the address box, hit the Enter key Step4、 Enter the default username and password “admin” and then click Login Step5、Entered the switch web management interface successfully when you see picture as below, you can begin to configure the switch...
-
Page 21: Chapter 4、 Packing List And Usage Suggestion
Chapter 4、 packing list and usage suggestion 4.1 Open the package and check the following list carefully items quantity instruction switch adapter power hanger Use to install Warranty card After sale User manual Use to install 4.2 Use advice 1. For safety, non-professionals should not open the shell;... - Page 22 circumstances; 7. Do not use the switch in places with dust and electromagnetic radiation, and do not use the switch in places with high temperature and no ventilation; 8. Please do not place heavy objects on the switch to avoid accidents; 9.
