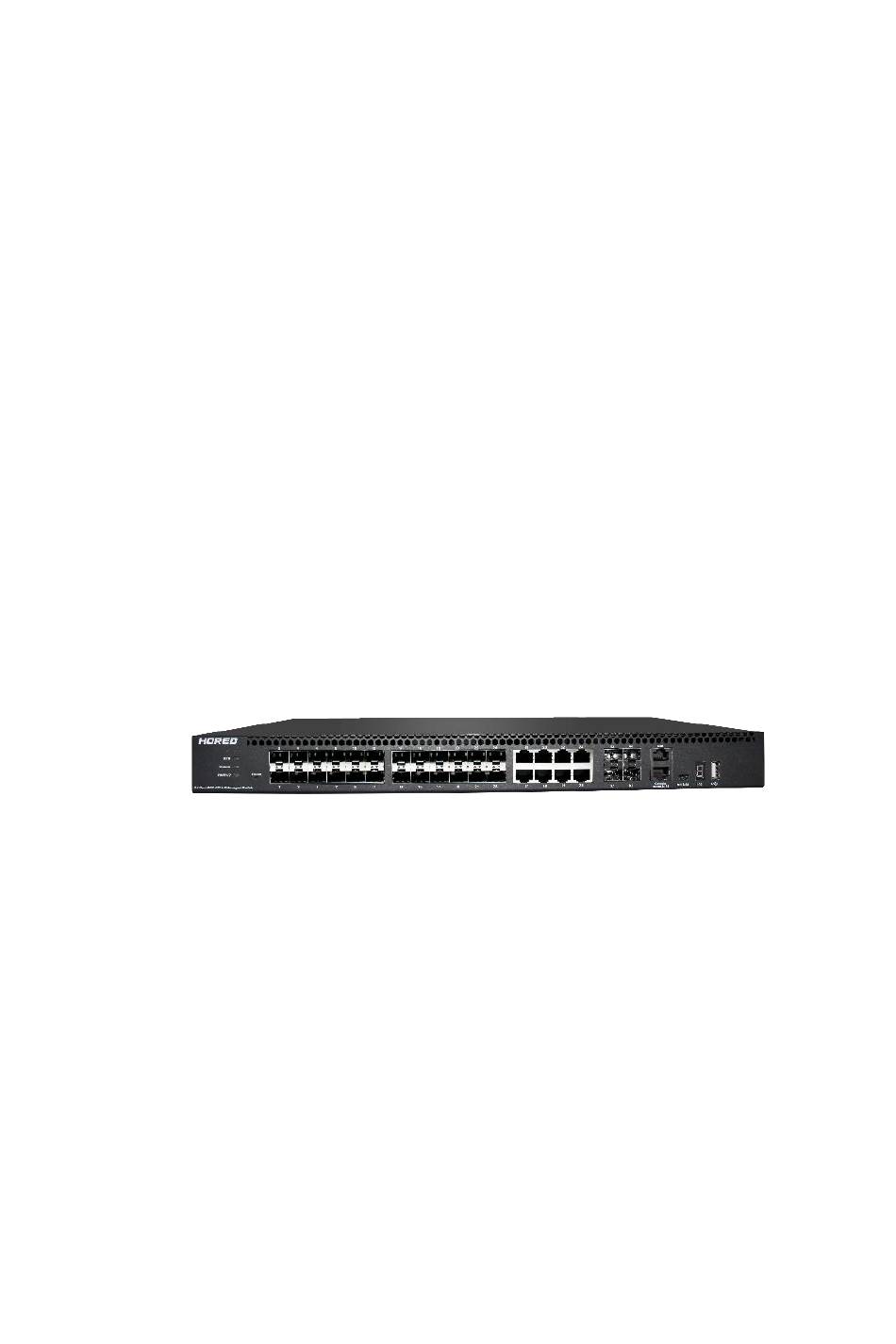

  • Page 1 User Manual S57 00- 24F-8G-4TF 24 Port 10G Core Network Switch...
  • Page 2 Installation manual The product user's manual mainly introduces the software and hardware parameters, installation method and matters needing attention in the installation process of S5700-24F-8G-4TF switch. This manual includes the following chapters: Chapter 1: product introduction. Describe the basic functional characteristics of the switch, detailed hardware and software specifications and appearance information.

  • Page 3: Chapter 1 Product Introduction

    Chapter 1 product introduction 1.1 product introduction The S5700-24F-8G-4TF three-tier, stackable administrative switch is designed for small and medium enterprises (SMEs), large enterprises and Internet service providers (ISPs).They offer high performance, flexibility, fault tolerance, and advanced software capabilities to achieve maximum return on investment.S5700-24f-...
  • Page 4 100 MB limit, data transmission does not slow down Broadcom high-end chip, performance is more stable and strong Broadcom's high-end chips can greatly improve the speed of network data processing Support stacked function Support physical stack of 9 switches, virtual stack of 32 switches, support ring/Daisy chain stack link Support Apollo cloud platform one-stop management Support the cloud platform to visually manage the...

  • Page 5: Specifications

    1.3 Product software and hardware technical specifications Hardware Chip Broadcom high performance chip Flash 16MB storag 256MB DDR 8 10/100/1000Mbps RJ45 ports（Combo） 4 10G SFP ports 24 Gigabit SFP ports port 1 RJ45 Console port， 1 10/100/1000Mbps management RJ45 port 1 USB 2.0,1 Mini-usb Console port Forward mode: store and forward Back width：128Gbps...
  • Page 6 proof touch：±6KV air：±8KV Input 100-240V/50-60Hz Size（L ×W× 440mm×320mm×44mm H） software feature Support RIP V1/V2,OSPFv1\OSPFv2dynamic Route routing Support static route Support DHCP Service Support DHCP Relay Support DHCP Snooping Support 4K VLAN Support 802.1Q VLAN、MAC VLAN ,IP VLAN VLAN Voice VLAN...
  • Page 7 Follow IEEE 802.1d standard Support MAC Address automatic learning and aging list Support static, dynamic, filter address table password protection Support user access restrictions based on port number, IP address, MAC address Support HTTPS、SSL V3、TLS V1、SSH V1/V2 Safety Support IP-MAC-PORT 3 in one perfor Support ARP protect、IP protect、DoS mance...
  • Page 8 filtering function Support port mirroring, port redirection, flow speed limit, QoS remarking Supports 8 port queues Support port priority, 802.1p priority, DSCP priority Support SP, WRR, WFQ priority scheduling algorithm Support automatic identification, management and acquisition of information Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s)standard Tree Support loop protection, root bridge...
  • Page 9 Supports multicast filtering, message statistics and unknown multicast discarding Support multicast control Storm Support broadcast control control Support Unknown unicast control Support static aggregation Support dynamic convergence Link Support IP, MAC, mixed load balancing togeth mode Maximum support is 32 aggregation groups Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet Support IPv6 SSH 、IPv6 SSL IPv6...
  • Page 10 Manag Support LLDP、RMON e and Support ARP protect 、IP protect、DoS Mainta protect Support Apollo Support CPU monitoring 、Storage monitoring Support system log, grading warning Support Ping、Tracert test、line test 1.4 Product appearance The front panel Contains indicator light, RJ45 port, SFP port, CONSOLE port, USB port, as shown below...
  • Page 11 Indicator light S5700-24F-8G-4TF Indicator light Power normal Power Power out , power switch light not open, power abnormal The corresponding RJ45 flicker Device LINK/AC port is connected connect green The corresponding RJ45 light port is unconnected flicker System working normal...
  • Page 12 S5700-24F-8G-4TF support 8 10/100/1000mbps adaptive RJ45 Combo port, 1 RJ45 Console port, 1 gigabit RJ45 management port  SFP port The S5700-24F-8G-4TF provides 4 10G SFP uplink port and 24 gigabit SFP ports, which can be inserted into gigabit SFP modules  RST button When the switch is powered on, press the button with a needle and release the device to enter the restart state.
  • Page 13  The Console port Console port is used to connect to serial ports on computers or other terminals to manage or configure switches. Rear panel Includes: power socket, power switch, grounding terminal  Power socket Connect the power cord to the switch S5700-24F-8G-4TF...

  • Page 14: Chapter 2: Hardware Connection

    and the access power should be 100-240v ~ 50/60hz ac power  Ground terminal Please ground the wire in case of lighting strike. To avoid lightning strike and extend the service life of products Chapter 2: hardware connection 2.1 Connect the RJ45 port Connect the network cable to the RJ45 port of the switch and the opposite network device...
  • Page 15 Connect to the SFP port The s5700-24F-8G-4TF SFP port only supports gigabit fiber modules.It is recommended to use standard SFP module products.The installation process of fiber optic module of switch is as follows: 1、Grasp the fiber module from the side and insert it smoothly along the SFP port slot of the switch until the fiber module is in close contact with the switch;...
  • Page 16 the link is down. Check the line and confirm that the peer device is enabled. Note: It is not allowed to excessively bend the fiber, and its radius of curvature should be no less than 10cm ; Ensure the cleanliness of the fiber end face; Please do not look directly into the fiber optic connector with your eyes, as this may cause eye damage.

  • Page 17: Chapter 3 Product Installation

    The switch will automatically initialize after the power is turned on and the power switch is turned on. The indicator light will appear as follows: 1、After the power is turned on, the power indicator remains steady. When SYS enters the flashing state, the system runs normally.
  • Page 18 preventive wrist strap is in good contact with the skin to avoid potential safety hazards. Switch only can work normally under the correct power supply. Please confirm that the power supply voltage matches the voltage indicated by the switch. Before powering on the switch, please make sure that the power circuit is not overloaded, so as not to affect the normal operation of the switch and cause unnecessary damage.
  • Page 19 corrosion of metal parts. If the temperature is too high, the aging process of the insulation material will be accelerated, which will seriously affect the service life of the equipment. The normal operation and storage temperature / humidity of this series of switches are as follows Environmenta temperat...
  • Page 20 dustproof Dust falling on the surface of the switch can cause electrostatic adsorption and poor contact of the metal contacts. Although the device itself has made certain measures in anti-static, when the static electricity exceeds a certain intensity, it will still cause fatal damage to the electronic components on the internal circuit board.
  • Page 21 2、The switch should be away from high-frequency, high- power, high-current equipment, such as wireless transmitters; 3、Take electromagnetic shielding measures when necessary. lightning protection needs When a lightning strike occurs, a strong current is generated in an instant, and the air in the discharge path is instantaneously heated to 20,000 degrees Celsius, and an instantaneous large current is enough to cause fatal damage to the electronic device.
  • Page 22 1、Verify that the rack or table is stable, strong, and capable of withstanding a weight of at least 5.5 kg; 2、Confirm that the rack itself has a good cooling system, or keep the room well ventilated; 3、Make sure the rack is well grounded, and the distance between the power socket and the switch is less than 1.5 meters.
  • Page 23 3、 the switch is placed in position within the frame, is supported by the carriage; screw the L -shaped bracket fixed to the fixed rack guide slot ends, the switch to ensure a stable, horizontally mounted on the machine frame, Note: Good grounding of the rack is an important guarantee for anti- static, anti-leakage, lightning protection and anti-interference of...
  • Page 24 3.3 Login management interface Step1、 Connect the network cable connected to the computer to the RJ45 port of the switch when the equipment is working normally Step2、 manually change the computer IP address to 192.168.254.X (X is 2~254), and the subnet mask: 255.255.255.0...
  • Page 25 Step3、Open the computer's browser, enter 192.168.254.1 in the address box, and hit enter Step4、 Enter the Web administrator login interface of the switch, enter the default username and password admin in the input fields of username and password, and then click login...

  • Page 26: Chapter 4 Packing List And Usage Suggestion

    Step5、 You have entered the web administration interface of the switch and are ready to start configuring the switch Chapter 4 packing list and usage suggestion 4.1 Open the package and check the following list carefully items quantity instruction switch...
  • Page 27 adapter power hanger Use to install Warranty card After sale User manual Use to install 4.2 Use advice 1. For safety, non-professionals should not open the shell; 2. When the product is powered on, pay attention to the danger of strong power and safety protection; 3.
  • Page 28 6. When the product is powered on, please do not plug or unplug the cable at will unless in special circumstances; 7. Do not use the switch in places with dust and electromagnetic radiation, and do not use the switch in places with high temperature and no ventilation;...
