- Page 1 User Manual IS108GPS-4F 12-port Gigabit managed PoE switch...
- Page 2 Installation ManualIntroduction <User Manual> mainly introduces the hardware features, installation methods, and precautions during the installation of IS108GPS-4F. This manual includes the following sections: Chapter 1: Product introduction. Briefly describe the basic functions and features of the switch, detailed hardware and software specificationsand appearance information.
-
Page 3: Chapter 1 Product Introduction

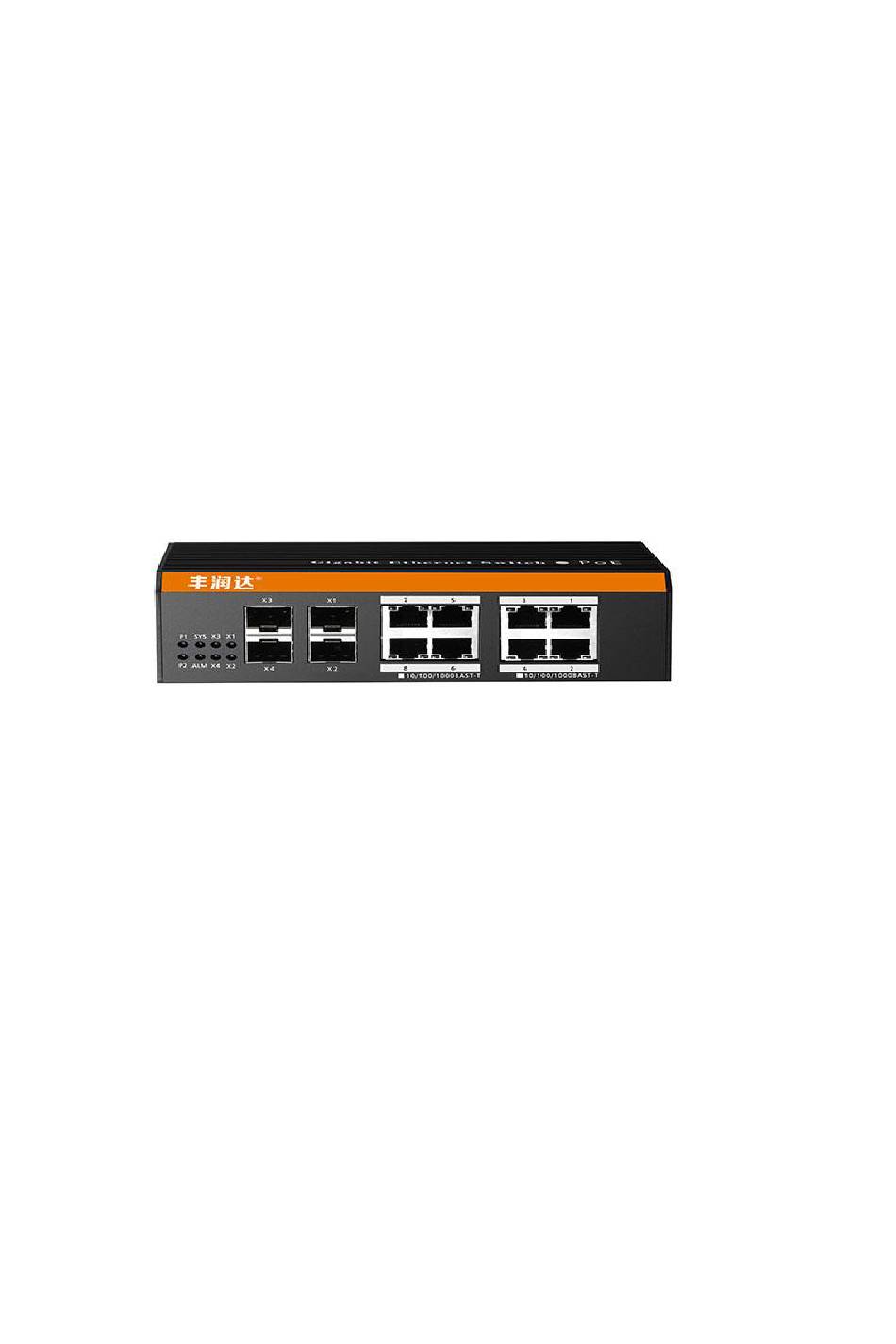

Chapter 1 Product Introduction 1.1 Product introduction The IS108GPS-4F is a Gigabit-managed industrial PoE switch that provides 8 Gigabit PoE ports and 4 Gigabit SFP ports. Each PoE port can provide up to 46W for IEEE802.3af /at compatible powered devices (PDs). It is especially suitable for applications where AC power is not easily available or high wiring costs. - Page 4 1.2 Features Full Gigabit Ethernet port 8 full Gigabit RJ45 PoE network port, and 4 Gigabit SFP ports, breaking the traditional 100M limitation, data transmission will not stuck Broadcom high performance industrial grade chip for more stable performance Broadcom high-performance industrial-grade chips that...
- Page 5 attached power devices, making operation and maintenance management easier 1.3 Software and hardware specifications Hardware specification Broadcom high performance chip Chip 16MB Flash 64MB DDR 8 10/100/1000M RJ45 port Port 4 1000M SFP port 810/100/1000Mbps RJ45 port support 802.3af/atPoE power supply Power The maximum power supply of the whole supply...
- Page 6 IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad: Standard method for performing Standard link aggregation protocol IEEE 802.3x: Flow Control IEEE 802.1p: LAN Layer 2 Qos/Cos protocol for traffic prioritization (multicast filtering) IEEE 802.1q: VLAN Bridge Operation...
- Page 7 ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±6kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) Working temperature: -40 ~ 75 ° C Operation Storage temperature: -40 to 75 ° C environment Relative humidity: 5% to 95% (no condensation) Certification CE, FCC, RoHS Mean...
- Page 8 Software specification AI PoE Global AI Loop Protect control AI VLAN button AI Extend Hardware Support watchdog Traffic Support Statistics Port energy Support saving DHCP Support DHCP Snooping Support 4KVLANs VLAN Support 802.1Q VLAN、MAC VLAN ,IP VLAN Voice VLAN Follow the IEEE 802.1d standard Support MAC address automatic learning and MACaddress aging...
- Page 9 SupportIP-MAC-PORT ternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping and DHCP attack protection Support 802.1X authentication, AAA Support port security, port isolation Support CPU protection Support PoE power limit Support viewing of PoE chip status management Support to set PoE port priority Support to set PoE power supply time period...
- Page 10 BPDU filtering Suppor IGMP v1/v2 Snooping Support fast leave mechanism Multicast Support multicast VLAN Supports multicast filtering, packet statistics, and unknown multicast discards. Support multicast suppression Storm Support broadcast suppression suppression Support unknown unicast suppression Support static aggregation Support dynamic aggregation Link aggregation Support IP, MAC, hybrid load balancing mode...
- Page 11 Support Apollo cloud platform one-stop management and maintenance Support CPU monitoring, memory monitoring Support system log, grading warning Support Ping, Tracert detection, cable detection 1.4 Appearance...
-
Page 12: Chapter 2. Hardware Connection
Indicator Status Description Thecorrespondingpower supply working normally. P1、P2 The correspondingpower supply is connected working abnormal. Blinking System is running normally Off / always System operation is abnormal / bright start unsuccessful Alarm start up Alarm not triggered Link/ACT Blinking SFP port is working normal F1-F4 SFP port is working abnormally / port is not connected... - Page 13 IEEE802.3af and IEEE802.3at standards. 2.2 Connect to the SFP port The SFP port of the IS108GPS-4F supports only Gigabit fiber modules. It is recommended to use standard SFP module products. The process of installing a fiber module on a switch is as follows: 1.
- Page 14 connecting. Insert one end of the fiber into the Rx and Tx ports to ensure that the Tx and Rx ends of the interface are correctly connected, and the other end of the fiber is connected to another device. 3. After power-on, check the status of the corresponding indicator.
- Page 15 2.3 Check before power-on Check that the power supply of the power outlet meets the switch specifications. Check that the power supply, switch, and rack are properly grounded. Check whether the switch is connected to other network devices. 2.4 Device initialization The switch will automatically initialize after the power is turned on and the power switch is turned on.
-
Page 16: Chapter 3 Product Installation
Chapter 3 Product Installation Before installation, confirm the operating environment of the equipment: power supply voltage, installation space, installation method, etc. Please carefully confirm the following installation requirements: - Check for cables and connectors required for installation - Check whether the cable is in place (not more than 100m) according to reasonable configuration requirements. - Page 17 Storage temperature: -40 to 75 ° C Relative humidity: 5% to 95% (no condensation) Power input 5pin 5.08mm terminal Input range：12-56VDC P1&P2 dual redundant power supply, Support reverse connection protection Ground protection Connect to ground Rail mounting...
-
Page 18: Chapter 4, Packing List And Userecommendations
Chapter 4, Packing list and userecommendations 4. 1 Product packaging Item Quantity Description Switch 1 set 1*5,1*2 Connect to power and alarm switch Phoenix terminal each per one unit Warranty card 1 piece For after-sales maintenance User Manual 1 copy Used to guide users to install switches 4.2 Recommendations... - Page 19 3. Do not use the switch in a humid environment to prevent water from entering the fuselage through the casing, resulting in damage to the machine; 4. In the state of power-on of the product, please do not plug and unplug the cable if non special case; 5.
