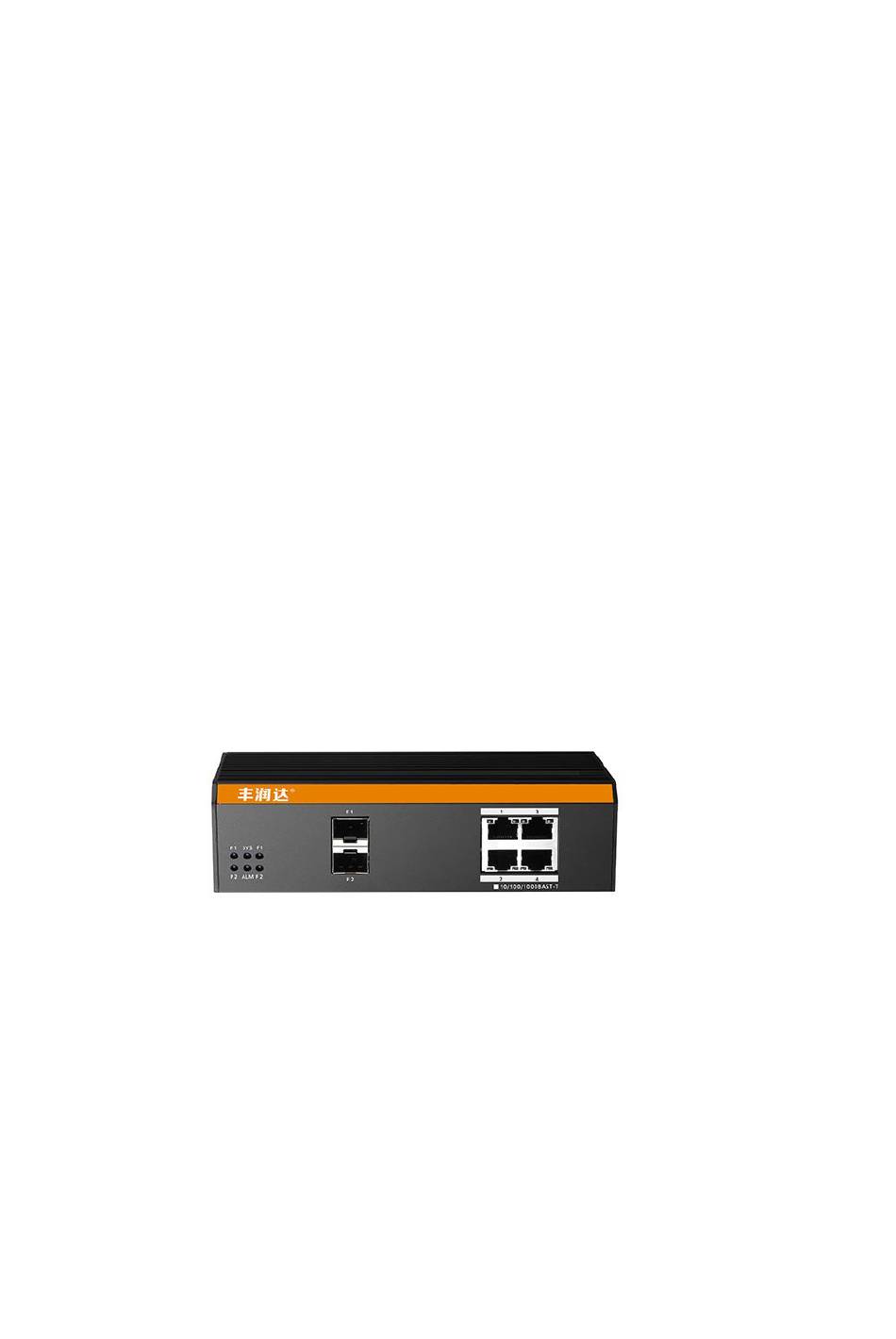

- Page 1 UserManual IS104GS-2F 6-port Gigabit managed switch...
- Page 2 Installation ManualIntroduction <User Manual> mainly introduces the hardware features, installation methods, and precautions during the installation of IS104GS-2F. This manual includes the following sections: Chapter 1: Product introduction. Briefly describe the basic functions and features of the switch, detailed hardware and software specificationsand appearance information.
-
Page 3: Chapter 1 Product Introduction
EMC industrial grade 4 protection; corrugated high-strength aluminum profile housing, IP40 grade, low power design, seismic rail mounting, -40°C-75° C operating temperature, can work in harsh environments; IS104GS-2F also supports Apollo cloud one-stop management platform for status checking and management monitoring. - Page 4 EMC industrial grade 4 protection; corrugated high-strength aluminum profile housing, IP40 grade, low power design, seismic rail mounting, -40 ° C-75°C operating temperature, can work in harsh environments Support Apollo cloud platform one-stop management Support cloud platform to visualize management of switches and attached power devices, making operation and maintenance management easier 1.3 Software and hardware specifications Hardware specification...
- Page 5 IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad: Standard method for performing link Standard aggregation protocol IEEE 802.3x: Flow Control IEEE 802.1p: LAN Layer 2 Qos/Cos protocol traffic...
- Page 6 IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±6kV IEC61000-4-6 (CS): (10kHz-150kHz); (150kHz-80MHz) IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) Working temperature: -40 ~ 75 ° C Operation Storage temperature: -40 to 75 ° C environment Relative humidity: 5% to 95% (no condensation) Certification CE, FCC, RoHS Mean...
- Page 7 Installation: DIN rail mounting Size: 163mm × 46.5mm × 110mm, weight: 1kg Software specification AI Loop Protect Global control button AI VLAN Hardware Support watchdog Traffic Statistics Support Port energy Support saving DHCP Support DHCP Snooping Support 4KVLANs VLAN Support 802.1Q VLAN、MAC VLAN ,IP VLAN Voice VLAN Follow the IEEE 802.1d standard MAC address...
- Page 8 Support restrict user access based on port number, IP address, and MAC address SupportHTTPS、SSL V3、TLS V1、SSH V1/V2 SupportIP-MAC-PORT ternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping and DHCP attack protection Support 802.1X authentication, AAA Support port security, port isolation Support CPU protection Support 8 port queues Support port priority, 802.1P priority, DSCP priority...
- Page 9 protection, BPDU protection, BPDU filtering Suppor IGMP v1/v2 Snooping Support fast leave mechanism Multicast Support multicast VLAN Supports multicast filtering, packet statistics, and unknown multicast discards. Support multicast suppression Storm Support broadcast suppression suppression Support unknown unicast suppression Support static aggregation Support dynamic aggregation Link aggregation Support IP, MAC, hybrid load balancing mode...

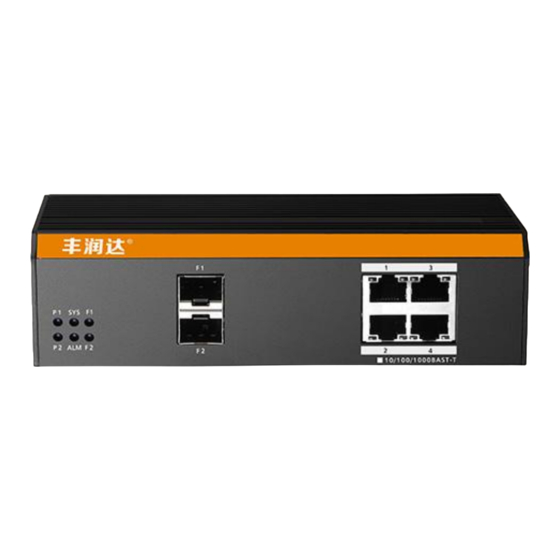

- Page 10 protection Support SNMP protocol Support Apollo cloud platform one-stop management and maintenance Support CPU monitoring, memory monitoring Support system log, grading warning Support Ping, Tracert detection, cable detection 1.4 Appearance Indicator Status Description Thecorrespondingpower supply working P1、P2 normally. The correspondingpower supply is not...
-
Page 11: Chapter 2. Hardware Connection
connected or working abnormal. Blinking System is running normally Off / always System operation is abnormal / start bright unsuccessful Alarm start up Alarm not triggered Link/ACT Blinking SFP port is working normal F1、F2 SFP port is working abnormally / port is not connected Chapter 2. - Page 12 2.2 Connect to the SFP port The SFP port of the IS104GS-2F supports only Gigabit fiber modules. It is recommended to use standard SFP module products. The process of installing a fiber module on a switch is as follows: 1. Grasp the fiber module from the side and insert it smoothly along the SFP port slot of the switch until the fiber module is in close contact with the switch;...
- Page 13 It is not allowed to excessively bend the fiber, and its radius of curvature should be no less than 10cm; Ensure the cleanliness of the fiber end face; Please do not look directly into the fiber optic connector with your eyes, as this may cause eye damage.
-
Page 14: Chapter 3 Product Installation
Chapter 3 Product Installation Before installation, confirm the operating environment of the equipment: power supply voltage, installation space, installation method, etc. Please carefully confirm the following installation requirements: - Check for cables and connectors required for installation - Check whether the cable is in place (not more than 100m) according to reasonable configuration requirements. - Page 15 Relative humidity: 5% to 95% (no condensation) Power input 5pin 5.08mm terminal Input range: 12-56VDC P1&P2 dual redundant power supply, Support reverse connection protection Ground protection Connect to ground Rail mounting...
-
Page 16: Chapter 4, Packing List And Userecommendations
Chapter 4, Packing list and userecommendations 4. 1 Product packaging Item Quantity Description Switch 1 set 1*5,1*2 each per Connect to power and alarm Phoenix terminal one unit switch Warranty card 1 piece For after-sales maintenance User Manual 1 copy Used to guide users to install switches 4.2 Recommendations... - Page 17 the actual product.
