16
OPTION

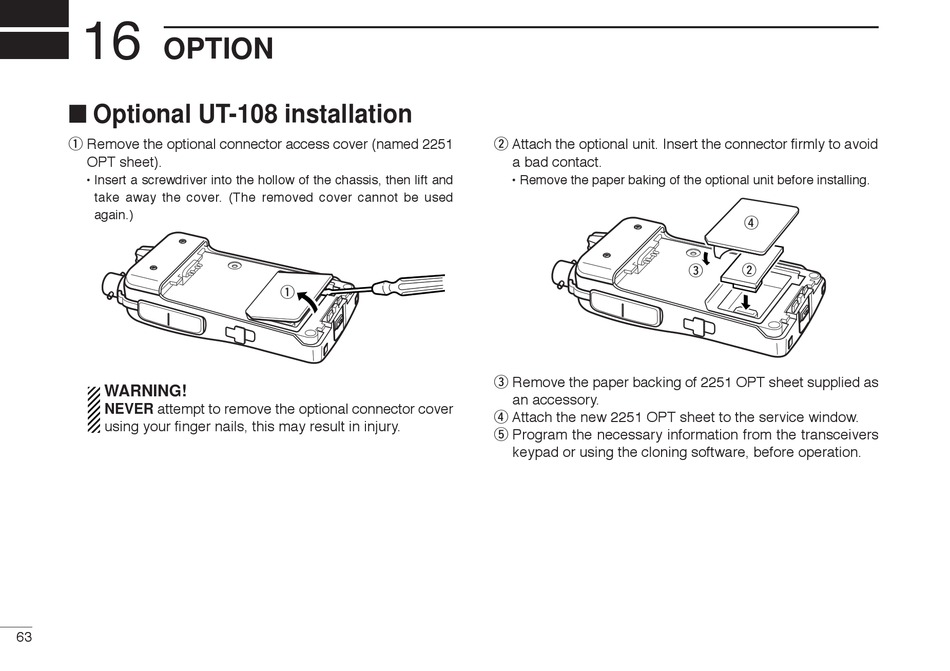

■ Optional UT-108 installation
q Remove the optional connector access cover (named 2251
OPT sheet).
• Insert a screwdriver into the hollow of the chassis, then lift and
take away the cover. (The removed cover cannot be used
again.)
WARNING!
NEVER attempt to remove the optional connector cover
using your finger nails, this may result in injury.
63
q
w Attach the optional unit. Insert the connector firmly to avoid
a bad contact.
• Remove the paper baking of the optional unit before installing.
e Remove the paper backing of 2251 OPT sheet supplied as
an accessory.
r Attach the new 2251 OPT sheet to the service window.
t Program the necessary information from the transceivers
keypad or using the cloning software, before operation.
r
e
w
