QUICK SETUP GUIDE

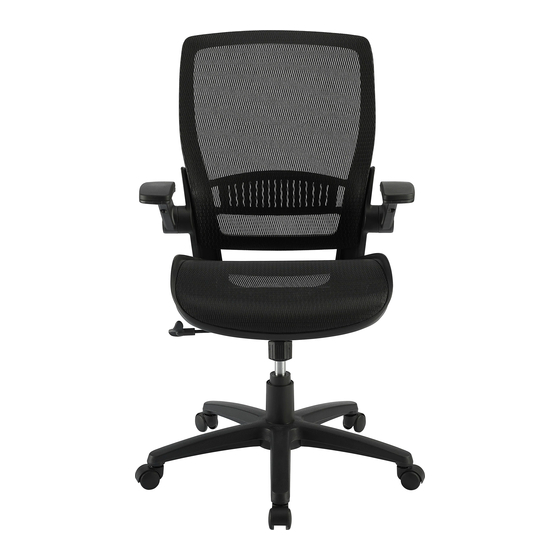

Mesh Office Chair
NS-FPAMC23
PACKAGE CONTENTS
Wheels (5)
Star base (1)
Center support
post (1)
Seat bottom (1)
M8 × 25 mm
screw (7)
Back and arms (1)
FEATURES
• Adjustable seat and arm rests fit your body's specific needs
• Swivel and tilt mechanism lets you customize the chair to your ideal position
• Sturdy, five-pointed star base with wheels makes it easy to move around your workspace
• Reinforced lumbar support provides maximum comfort
• Breathable mesh design grants a modern, stylish look
Before using your new product, please read these instructions to prevent any damage.
ASSEMBLING YOUR CHAIR
1 Turn the base (B) upside down on carpet or a soft towel.
2 Insert the wheel (A) posts into the holes at the ends of the star base arms until they click into place.
3 Turn the base right side up, then insert the bottom of the center support post (C) into the hole in the center of
the base.
Riser mechanism (1)
4 Turn the seat bottom (E) upside down and place it on a padded box or small stool to support it.
Allen wrench (1)
Quick Setup Guide
5 Align the riser mechanism (D) on the bottom of the seat and attach it to the seat with four M8 × 25 mm
screws (G). Tighten the bolts with the Allen wrench (H).
6 With the seat still supported, align the holes in the bottom of the chair back with the bracket on the riser
mechanism. Make sure that the arms are toward the front of the chair seat.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NS-FPAMC23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Insignia NS-FPAMC23

  • Page 1 (G). Tighten the bolts with the Allen wrench (H). QUICK SETUP GUIDE Mesh Office Chair NS-FPAMC23 3 Turn the base right side up, then insert the bottom of the center support post (C) into the hole in the center of the base.
  • Page 2 CAUTION: Make sure that the chair back/seat assembly and chair base are securely connected and that all bolts • If any parts are missing, damaged, or worn, stop using immediately. INSIGNIA is a trademark of Best Buy and its affiliated companies. are tightened before sitting in the chair. Distributed by Best Buy Purchasing, LLC •...
