Pulsar SG64-B Manual

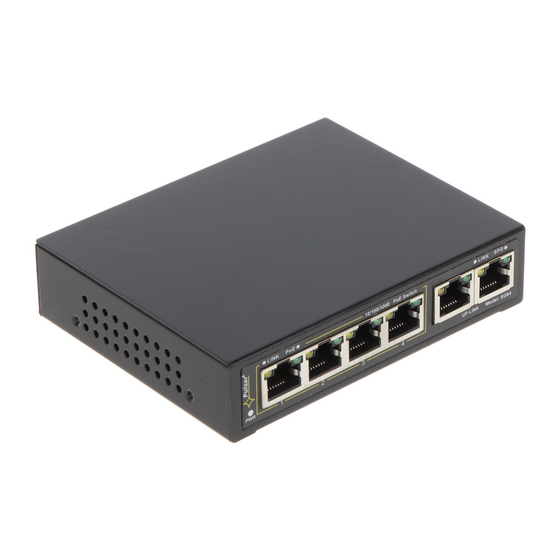

6-port switch with buffer power supply for 4 ip cameras
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Uninterruptible power supply of 4 IP cameras (52VDC)
Switch 6 ports
4 PoE ports 10/100/1000Mb/s (data transfer and power
supply)
2 ports 10/100/1000Mb/s (UP LINK)
30W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard
Approximate backup time: 2h
CONTENTS:
2.1 Requirements
SG64-B 6-port switch with buffer power supply
Edition: 2 from 01.03.2018
Supercedes the edition: 1 from 04.01.2018
Features

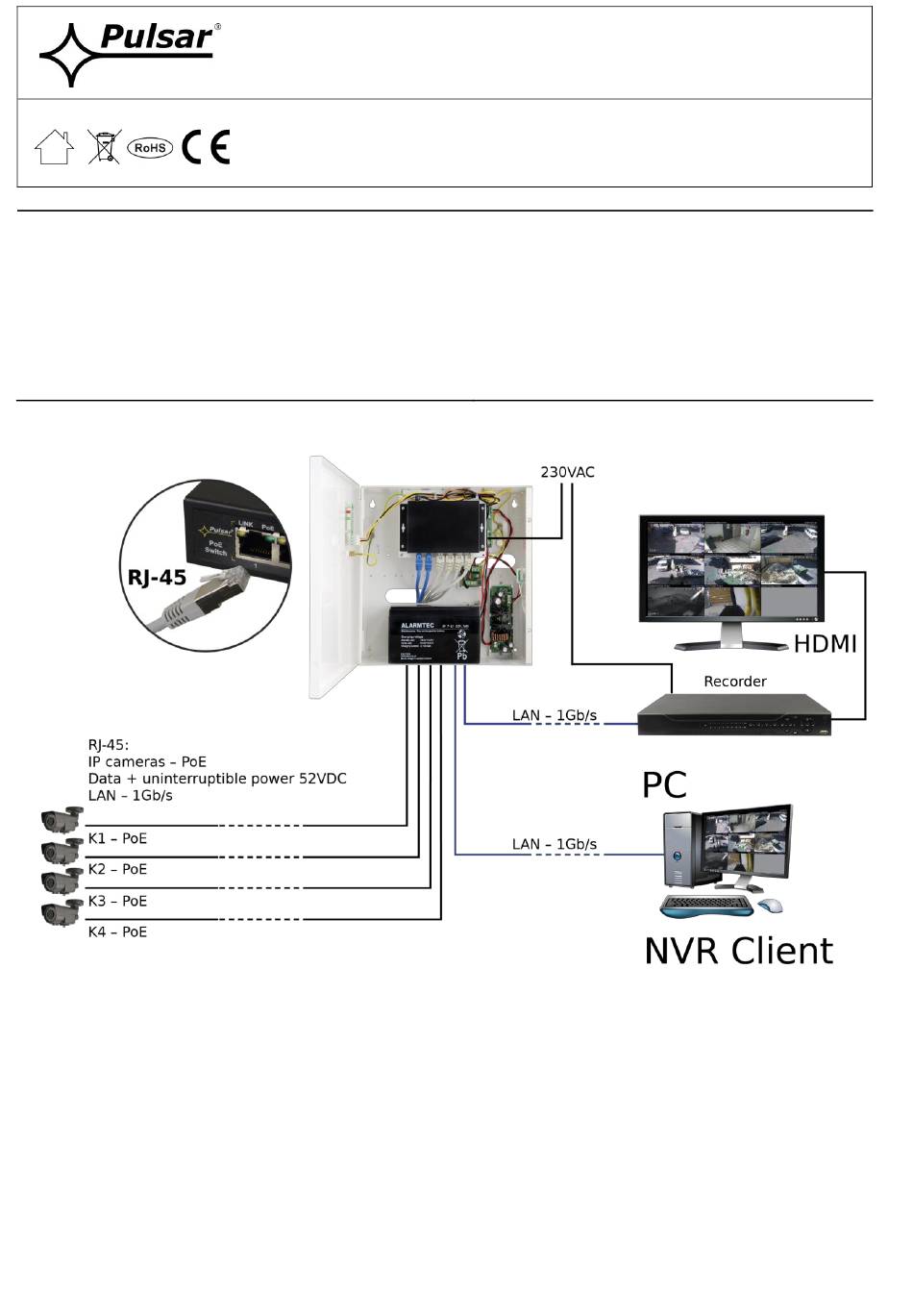

Example of use.
1
SG64-B
v1.1
for 4 IP cameras
:
Metal enclosure - color white RAL 9003
with battery space for a 7Ah/12V battery
Supports auto-learning and auto-aging of MAC
addresses (1K size)
warranty - 2 year from the production date
PL
EN**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG64-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar SG64-B

Summary of Contents for Pulsar SG64-B

  • Page 1 SG64-B v1.1 SG64-B 6-port switch with buffer power supply for 4 IP cameras Edition: 2 from 01.03.2018 Supercedes the edition: 1 from 04.01.2018 EN** Features   Metal enclosure – color white RAL 9003 Uninterruptible power supply of 4 IP cameras (52VDC) ...
  • Page 2 (front panel). The SG64-B is fitted with two LEDs on the front panel (red LED – indicates 230VAC power supply of the PSU, green LED indicates the presence of DC voltage).
  • Page 3 1.3 Description of components and connectors. Fig. 2. The enclosure view. Table 1. ( See Fig . 2) Component No. Description (Fig. 2) Switch PoE Switch mode buffer power supply unit DC/DC52115 converter Output filter Tamper – micro switch (terminals) of tamper protection (NC) Battery space for a 7Ah/12V Power supply connector of the PSU –...
  • Page 4 Table 2. (See Fig.3) Component No Description (Fig. 3) 2 x UP LINK port 4 x PoE ports (1÷4) 52VDC power supply socket 1.4 Technical parameters - parameters of the switch (tab.3) - electrical parameters (tab.4) - mechanical parameters (tab.5) - operation safety (tab.6) - operating parameters (tab.7) Table 3.
  • Page 5 Table 5. Mechanical parameters W=280, H=291, D+D =82+8 [+/- 2mm] Dimensions =285, H =295 [+/- 2mm] The dimensions of the battery 170 x 110 x 65mm (WxHxD) max compartment Gross/Net weight 2,7 / 2,9 kg Enclosure Steel plate, DC01 1,0mm color white RAL 9003 Closing Cheese head screw x 2 (at the front), (lock assembly possible) Power supply of the cameras: RJ45 socket...
  • Page 6 5. Connect the power (~230V). 6. Connect the battery (mind the colours): - battery output (+V): BAT+ cable / red, - battery output (0V): BAT – cable / GND / black. 7. Connect the camera cables to the RJ45 connectors (PoE connectors) and connect the recorder to the network (the UP LINK connector).
  • Page 7 ON – the device is connected;1000Mb/s YELLOW LED LIGHT (LINK) The connection status of OFF- no data transmission LAN devices, ON - the device is connected: 10/100/1000Mb/s Blinking – data transmission 10/100/1000Mb/s and data transmission Installation example of the SG64-B battery (Battery not included)
  • Page 8 The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
