Output Connections Example; Powering Up - AES Cellcom Prime 5AB Manual

(not supplied)12v dc

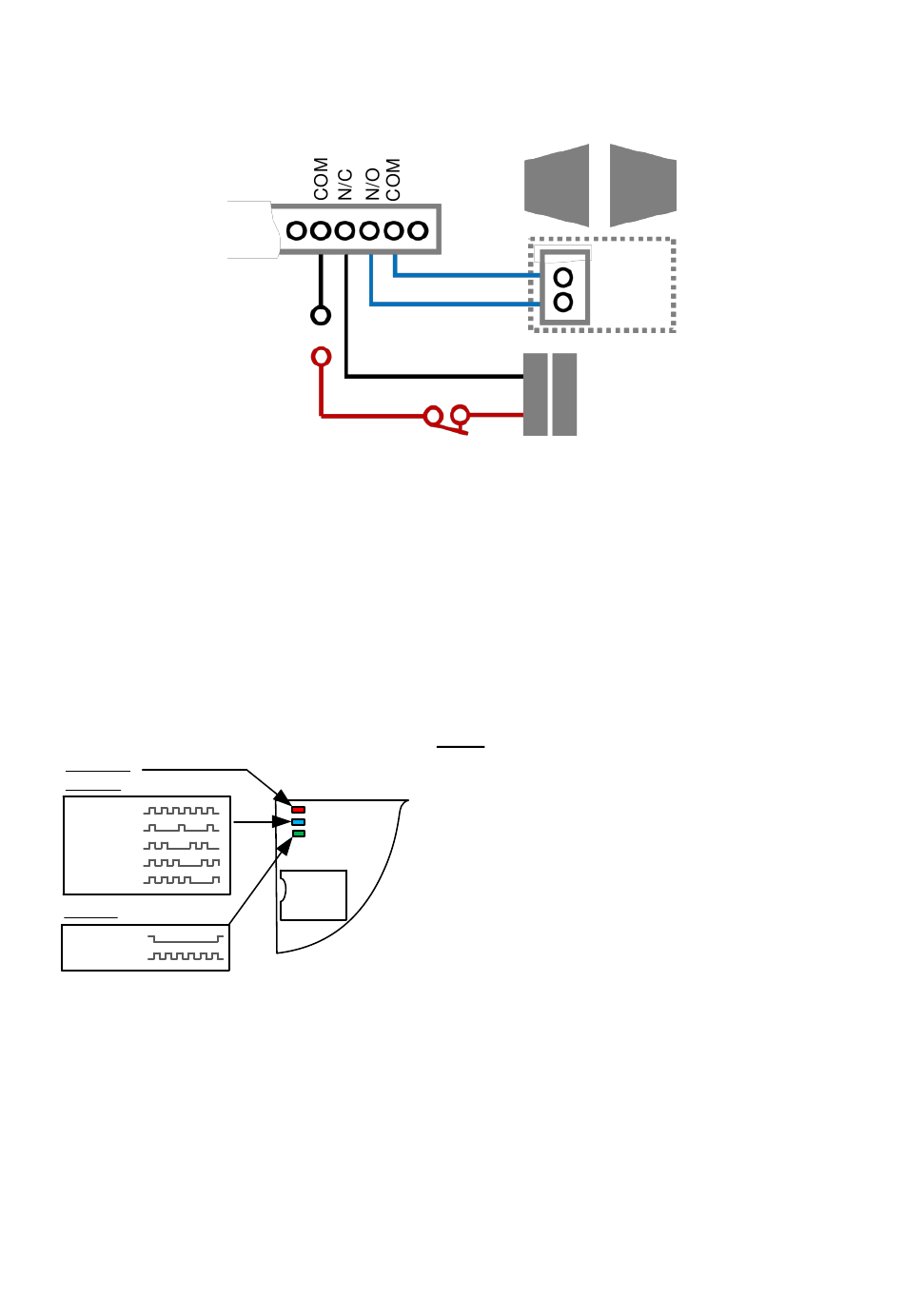

This example shows relay 1 connected to a gate motor controller for vehicle gates, and output 2
connected to a magnetic lock for a door or pedestrian gate.
Perform a final check of wiring and ensure the antenna is connected before switching on the
power. Once the power is switched on, the power LED should illuminate.
Power LED
GSM LED
Searching
1 bar signal
2 bars signal
3 bars signal
4 bars signal
CPU LED
Booting
System booted
P a g e | 6

Output Connections Example

Relay 1
Relay 2
-
+
Other device
e.g. exit switch

Powering Up

TIPS:
My GSM LED is still searching...
-Check the SIM card is registered and can make a
call in a phone.
-Check the SIM card is seated correctly. Power off,
clean the contacts on the SIM and the GSM unit,
and reinsert the SIM.
-Check power cable distance and thickness.
-Increase antenna height.
-Change network.
-Move antenna away from metal objects or
overhanging shrubs.
-Fit a high gain antenna.
Electric Gates
Start
Gate controller
COM
Magnetic lock
