..PROFESSIONAL INSTALL
ONLY..
Do NOT give this manual to the end user / home owner

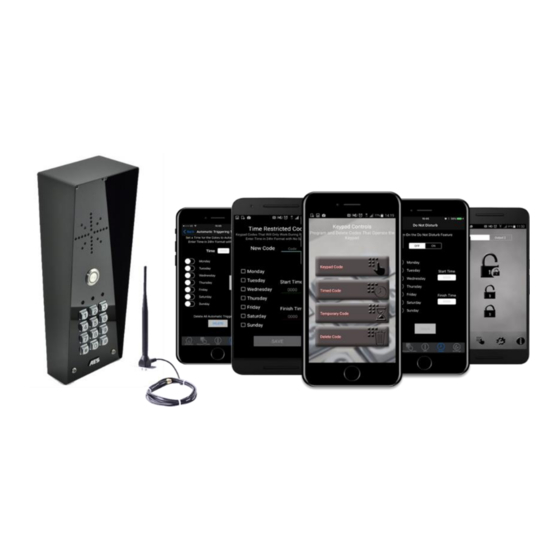

GSM Intercom System
Models 5AB, 5ABK, 5AS, 5ASK, 5HS, 5HSK, 5HB, 5HBK, 5FB, 5FBK, 5IMP, 5IMPK
Manual Version 3
Scan QR code below to download the installer APP
P a g e
| 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cellcom Prime 5AB and is the answer not in the manual?

Questions and answers

Related Manuals for AES Cellcom Prime 5AB

Summary of Contents for AES Cellcom Prime 5AB

  • Page 1 ..PROFESSIONAL INSTALL ONLY.. Do NOT give this manual to the end user / home owner GSM Intercom System Models 5AB, 5ABK, 5AS, 5ASK, 5HS, 5HSK, 5HB, 5HBK, 5FB, 5FBK, 5IMP, 5IMPK Manual Version 3 Scan QR code below to download the installer APP P a g e...

  • Page 2: Table Of Contents

    Contents …………….Pg 3 Overview of system …………….Pg 3 Site Survey …………….Pg 3 SIM card …………….Pg 3 Power …………….Pg 4 Installation …………….Pg 4 Architectural panels …………….Pg 4 Hooded Panels …………….Pg 4 Flush Panels …………….Pg 5 Inserting the SIM card …………….Pg 5 Connections on GSM controller …………….Pg 6 Output Connections Example...

  • Page 3: Overview Of System

    Overview of System Please read this entire manual before attempting to install this system. This system should only be installed by a professional automatic gate installer or access control specialist dealer. It is recommended that the system be set up, configured, commissioned and tested on a workshop bench before taken to site for installation.

  • Page 4: Installation

    Installation Do not remove the protective film until the system is Speech fully installed and working. Protective coverings are Unit there to protect the intercom from scratches and 200mm marks during installation. Antenna height is best higher than intercom for cleaner audio and also better reception.

  • Page 5: Inserting The Sim Card

    Inserting the SIM card Note: This unit is a 2G quad band system, operating on standard 2G network frequencies of 850/900/1800/1900MHz. Ensure the SIM has calling credit, and can make and receive calls on a mobile cell phone. Please ensure the SIM card is a 2G compatible Micro SIM card. The SIM may also be 3G and 4G capable as well, as long as both the SIM and the network also support 2G.

  • Page 6: Output Connections Example

    Output Connections Example Electric Gates Relay 1 Relay 2 Start Gate controller (not supplied)12v dc Magnetic lock Other device e.g. exit switch This example shows relay 1 connected to a gate motor controller for vehicle gates, and output 2 connected to a magnetic lock for a door or pedestrian gate. Powering Up Perform a final check of wiring and ensure the antenna is connected before switching on the power.
  • Page 7 Installing the Programmer APP for the first time 1. For android or apple devices you can download the AES programming app called “Cellcom Prime Programmer” (or scan QR code below). 2. Open the app and allow all permissions (Android users).
  • Page 8 Programming a Brand-New Install Press SETTINGS to reveal the screen shown. This screen will store details for the client. Enter name or site name for customer. Enter INTERCOM SIM phone number. Default Engineer’s and user`s pass codes. These can be changed later. Now you are ready to begin programming! Programming an EXISTING Install 1.Go to MORE>CLIENT LIST to reveal the screen shown.

  • Page 9: Programming

    Programming Now that you have either entered a new client, or selected an existing client from the client list, you are now ready to begin programming. Step 1: Check Reception Go to MORE>INFO & press the reception check button. On Android the app will automatically send a SMS string (*20#) to the intercom.

  • Page 10: Programming Dial Out Numbers

    Step2: Programming Numbers for the intercom to call on button press. 1.Press the SINGLE home icon for a 1 button system, or MULTI for a 10 button system. 2. Simply enter cell phone numbers and/or landline phones which the intercom is to call when the call button is pressed. (10 button model please enter button number).
  • Page 11 Step3: Programming Caller ID access numbers (100 max). 1.Press the CALLER ID button. 2. Simply enter cell phone numbers of visitors whom should have access with caller ID (up to 8 at a time). 3. Press SAVE. Note: iphone users will be taken to their SMS screen to confirm the SMS string (press send).
  • Page 12 Programming Additional Features The intercom should now be able to call users and have some basic Caller ID access. Now you may wish to program additional features for the client, including keypad codes, dialling times (to avoid voicemail on un-answered calls, auto-trigger times etc. Avoid voicemail Mic &...
  • Page 13 1.Volumes Adjust speaker and microphone volumes. Enter required level (1-9) for optimum speech. TIP: Set as low as possible for good acoustics. Default = 5 Press SAVE. TIP: Iphone users will be taken to SMS screen to confirm message. Android devices will automatically send the SMS.
  • Page 14 3.Service Calls This feature is normally only used on intercoms which are seldom used and only for SIM cards which are likely to be de-activated by the network due to inactivity. It can be programmed to make a chargeable outgoing call or SMS to a number of your choice using this screen.
  • Page 15 SIGNAL STRENTH Will reply with signal range 1-31 Should be higher than 10. STORED NUMBERS O=Dial out number. I=Dial IN Caller ID number. STORED CODES NORM=Permanent codes. TEMP=Temporary codes. PLAN=Time restricted codes. RELAY STATUS OPEN – Shows status of the input terminals called STATUS on the intercom, can be used with a limit switch.
  • Page 16 5. Pass Codes CAUTION: Take care when changing pass codes. There are 2 levels of 4-digit code (both must be different): 1. Engineers/Programmers code (default 9999) 2. Access/user code (default 1234) You may wish to change both from their defaults for security. Restore the app to using default codes (does not restore the intercom) Enter new programmers code (default 9999)
  • Page 17 7.Notifications This feature is commonly used to allow one home user to receive SMS alerts each time the INTERCOM is used to trigger the gates and grant access. Quick Enable / disable this feature Enter the phone number to receive the SMS alert and press SAVE Enter text which you want the user to receive when access is granted, then press SAVE...
  • Page 18 Permanent Keypad Code Stores up to 200 codes, all of which can be used to gain access 24/7. Enter 4 digit code Choose Relay 1 or Relay 2 Enter activation time. (0-9999 seconds) Use 1 second for gate trigger. Use approx. 5 secs for magnetic locks. Use 0 for latching or toggle code.
  • Page 19 Temporary Code Stores up to 30 codes at any time which will auto expire after a pre-set countdown time (1-168 hours) (Relay 1 only) Enter 4 digit code Enter countdown time in hours (1-168 hrs) SMS String for temporary code: 9999#82#hours#code# 4 digit code Pass code...
  • Page 20 9. Auto Relay Trigger Times Create up to 40 automatic time clock events to trigger or latch/unlatch gates (depending on gate system setup). For auto closing gates, send latch command at the desired opening time, followed by a separate unlatch event to close at the desired closing time.
  • Page 21 10. Client list on android The client list allows you to save sim phone number, customer name and pass codes for all your installs. Press & HOLD to select Client Press to save changes Press to load details & begin programming On any previous install, you can load the customer and then re- program their intercom.

  • Page 22: 12. Do Not Disturb

    11b. Daylight Saving For regions where there is a 1 hour time shift for daylight saving, it can be useful to have the intercom send itself a SMS every set number of days to re-synchronise the internal clock. The intercom will do this anyway each time a SMS is received.
  • Page 23 12b. After Hours / Out of Hours If you have activated the do not disturb feature, the push button will not call anyone after the pre-set time threshold. However, sometimes it is useful to have the intercom call a different number after hours. For example, in commercial premises it can call the office phones during business hours, and then call a security guard after hours.
  • Page 24 Complete list of parameters The table below show the complete list of features. Changing pass codes 9999#01????# Change programming password 9999 Change access control password (SMS control of relays, or 9999#02????# non-stored numbers can call intercom & enter code to 1234 activate output 1).

  • Page 25: Permanent Codes

    9999#73*# Delete all caller ID numbers Service & diagnostic messages (no passcode required for some of these!) *20# Check reception level 1-31 (no passcode needed) Check stored numbers. O = dial out number. I = dial in *21# number. E = end of message. (no passcode needed) *22# Check input status and relay status.
  • Page 26 Alternate Number to Call During Do Not Disturb Times. X = button number (1-9. Enter 1 for 1 button system. Enter 0 9999# for button 10) 21X????# ???? = Alternative phone number to call out of hours. Restore Defaults 9999#999# Send with passcode string to clear all programming.
  • Page 27 Change History Key: P = Panel version H = Hardware PCB version S = Software version Version Reason for change First version. Power chip upgraded to work on 24v dc (24v adaptor in kits). Software feature added for call log to show last 25 caller ID calls. Main capacitor, regulator &...
  • Page 28 P a g e | 28...
