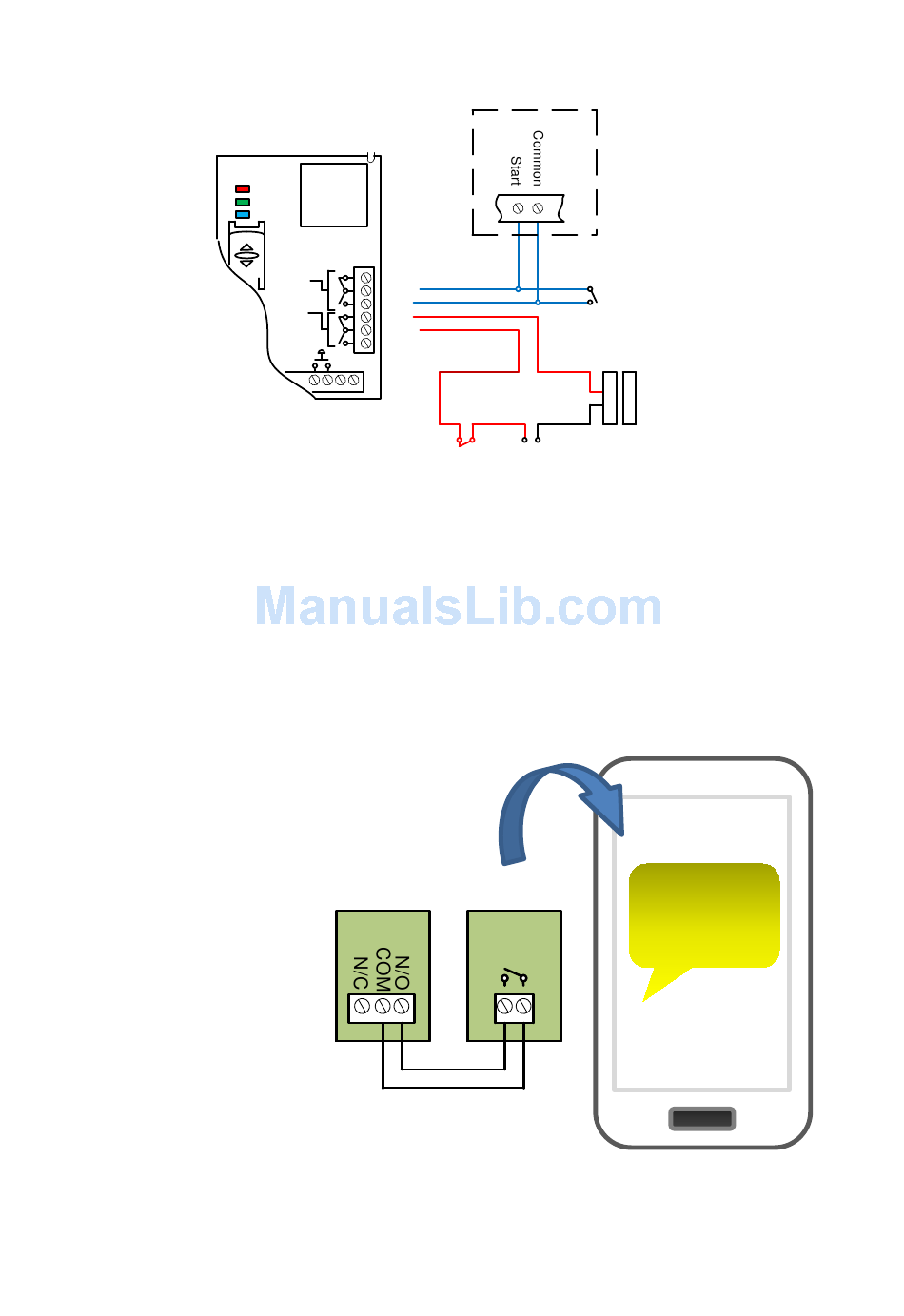

This example shows relay 1 connected to a gate motor controller for vehicle gates, and output 2
connected to a magnetic lock for a door or pedestrian gate.
Alternative Keypad Wiring for Notification Feature
The CellCOM+ model has an additional feature which sends an SMS to a master user when the
GSM unit triggers it's outputs. So if the user wants to know when the keypad is triggered, then
wire a keypad output to egress input of the GSM as shown...
When the egress is triggered, the GSM unit's output 1 will be triggered and if the 78 feature is
programmed, the unit will send an SMS.
P a g e | 7

Output Connections Example

GSM
modem
close
N/C
Out 1
COM
N/O
Out 2
N/C
COM
N/O
eg
12v dc
Keypad
Output1
Gate motor controller
Magnetic
+ -
Other exit
12v dc
device, e.g.
Separate
keypad
PSU
GSM unit
eg
Other exit
device, e.g.
keypad
Lock
+
-
My gates
opened!
