AES GSM-5AS/3GE Installation & User Manual

Wireless door intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Models GSM-5AS/3GE, GSM-5ASK/3GE, GSM-5IMP/3GE, GSM-5IMPK/3GE, GSM-5ED/3GE,
GSM-5EDK/3GE, GSM-5EDF/3GE, GSM-5EDFK/3GE, GSM-5ABP/3GE, GSM-5ABPK/3GE,
GSM-5iB/3GE, GSM-5iBK/3GE, GSM-5HSK2/3GE, GSM-5HSK3/3GE, GSM-5HSK4/3GE,
GSM-5HSK5/3GE, GSM-5HSK6/3GE, GSM-5HSK7/3GE, GSM-5HSK8/3GE, GSM-5HSK9/3GE,
GSM-5HSK10/3GE, GSM-5BEK-3GE, BFT-GSM-5ABK/3GE, GSM-5BEK/3GE
Save time, scan the code below and watch the installation video!

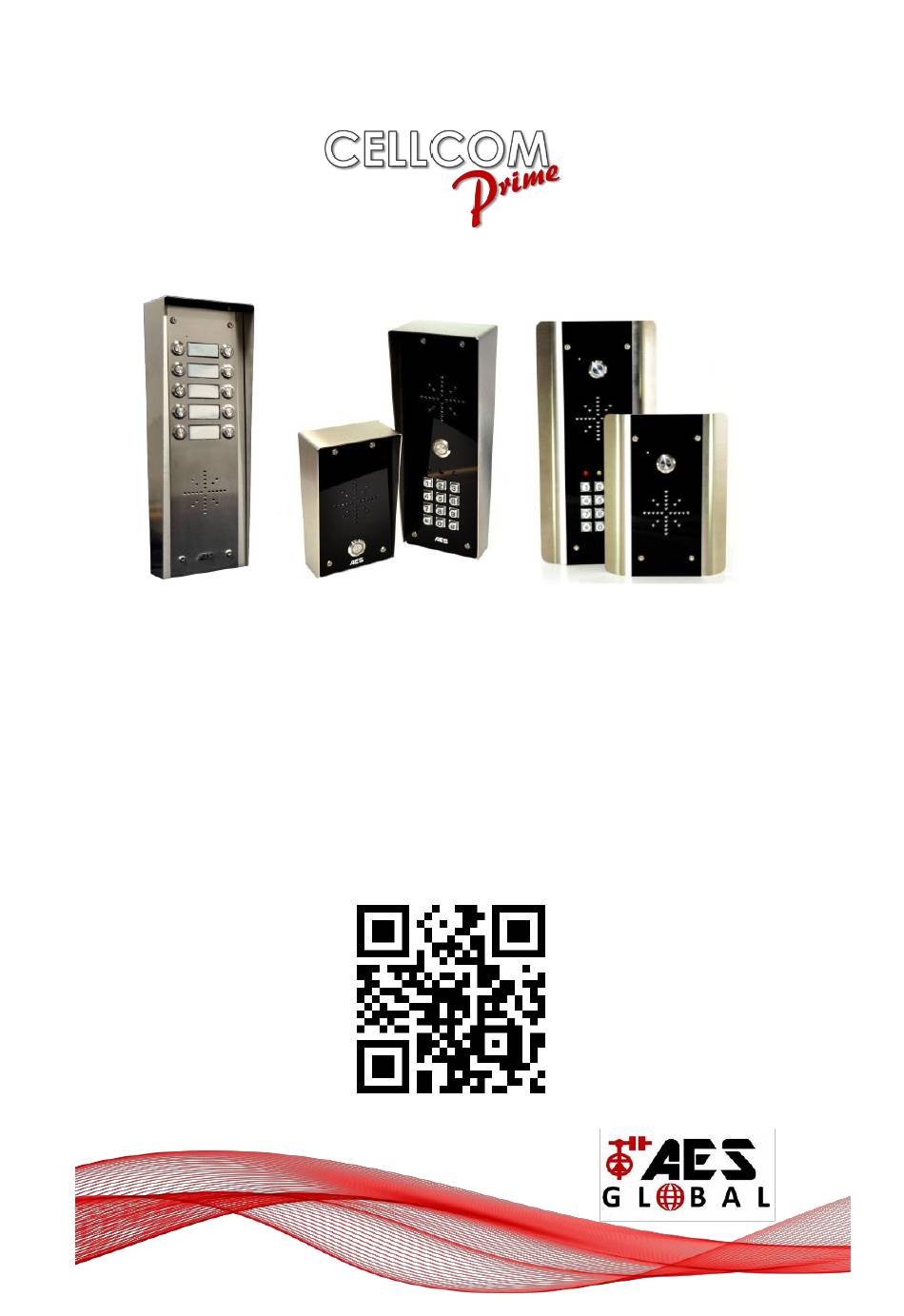

P a g e
| 1
Installation & User Manual
For
24v
Wireless Door Intercom
Manual Version 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM-5AS/3GE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AES GSM-5AS/3GE

Summary of Contents for AES GSM-5AS/3GE

  • Page 1 Installation & User Manual Wireless Door Intercom Models GSM-5AS/3GE, GSM-5ASK/3GE, GSM-5IMP/3GE, GSM-5IMPK/3GE, GSM-5ED/3GE, GSM-5EDK/3GE, GSM-5EDF/3GE, GSM-5EDFK/3GE, GSM-5ABP/3GE, GSM-5ABPK/3GE, GSM-5iB/3GE, GSM-5iBK/3GE, GSM-5HSK2/3GE, GSM-5HSK3/3GE, GSM-5HSK4/3GE, GSM-5HSK5/3GE, GSM-5HSK6/3GE, GSM-5HSK7/3GE, GSM-5HSK8/3GE, GSM-5HSK9/3GE, GSM-5HSK10/3GE, GSM-5BEK-3GE, BFT-GSM-5ABK/3GE, GSM-5BEK/3GE Manual Version 1 Save time, scan the code below and watch the installation video!

  • Page 2: Table Of Contents

    Contents …………….Pg 3 Overview of system …………….Pg 3 Site Survey …………….Pg 3 SIM card …………….Pg 3 Power …………….Pg 4 Installation …………….Pg 4 Architectural panels …………….Pg 4 Hooded Panels …………….Pg 4 Flush Panels …………….Pg 5 Installing the SIM card …………….Pg 5 Connections on GSM controller …………….Pg 6 Output Connections Example...

  • Page 3: Overview Of System

    Overview of System Please read this entire manual before attempting to install this system. This system should only be installed by a professional automatic gate installer or access control specialist dealer. It is recommended that the system be set up, configured, commissioned and tested on a workshop bench before taken to site for installation.

  • Page 4: Installation

    Installation Do not remove the protective film until the system is Speech fully installed and working. Protective coverings are Unit there to protect the intercom from scratches and 200mm marks during installation. Antenna height is best higher than intercom for cleaner audio and also better reception.

  • Page 5: Installing The Sim Card

    Inserting the SIM card Note: This unit is a dual 2G/3G system, operating on either 2G or 3G network frequencies of 850/900/1800/1900MHz Please ensure the SIM card is a 2G compatible Micro SIM card. The Micro SIM SIM may also be 3G and 4G capable as well, as long as both the SIM and the network also support 3G.

  • Page 6: Output Connections Example

    Output Connections Example Gate motor controller modem close Other exit Out 1 device, e.g. keypad Out 2 Magnetic Lock 12v dc Other exit 12v dc device, e.g. Separate keypad This example shows relay 1 connected to a gate motor controller for vehicle gates, and output 2 connected to a magnetic lock for a door or pedestrian gate.

  • Page 7: Programming

    Programming TIP: The GSM unit programming is by sending SMS text messages to the unit from a phone. Check Reception Send the SMS *20# as shown, to the SIM card number of the intercom. The unit should reply with a *20# reception level between 1 and 31.

  • Page 8: Programming Dial Out Numbers For

    Programming dial out numbers for multi button versions Please note the position of the buttons on the above panel options. For example, if you have a 2 button panel, you will be programming dial out numbers for buttons 3 and 8. For a 4 button panel, the corresponding button locations are 2,3,8 and 9.

  • Page 9: Calling Time

    Calling time (Function 45-47) This is the time the unit will spend attempting to call a number before aborting the call and calling the next number on the list. It is very useful to adjust this time so that if there is voicemail or answer machine on a number, that the intercom aborts the call before the machine picks up, otherwise the unit will think the call is answered and never call the next number.

  • Page 10: Winter/Summer Daylight Saving

    Winter/Summer Daylight Saving (Function 87) For countries where there is a 1 hour time shift for daylight saving, It is useful to have the intercom check the time on a schedule. It will send an SMS to itself to check time every set number of days according to the function below..

  • Page 11: Permanent Codes

    Programming Keypad Codes There are 3 types of keypad code which can be stored in the unit. 1. Permanent code. (Capacity 200). 2. Temporary code – will expire after a desired length of time. (Capacity 30 at any time) 3. Time restricted code – will only operate at specified times of the week. (Capacity 20) Programing a Permanent Code (Function 81) 9999#811code#time# =SECONDS...

  • Page 12: Delete A Code

    Delete a keypad code (Function 84) 9999#84#code# Pass code Function Code to be deleted code Delete all keypad codes (Function 84) 9999#84*# Set Automatic Triggering times This feature is useful to automatically trigger electric gates at pre-set times of the day or night. For gates not set on “auto-closing”, this can be used to have opened and closing times with momentary triggers.

  • Page 13: Notification Number

    Notification Number This feature will send a SMS notification to a master user phone number every time the intercom is used to grant access. It will send a SMS any time a relay is activated. To use this feature firstly turn the function on: 9999#802# (change 2 to 1 to disable again).
  • Page 14 Max monitoring time (for listen in mode when calling the 55??# 10 mins intercom) 00-60 mins. 00 = no limit. Scheduled service calls Store a service number to receive a scheduled call or SMS from 77number# the unit. Useful for SIM cards which are not often used to prevent switch off by the network provider.

  • Page 15: Using The Intercom

    Using the intercom This cellular intercom can dial up to 4 numbers in sequence for any call button when pressed.. Dialling….. Phone 1 Phone 2 Phone 3 Any user receiving the call can answer, speak to the visitor, and press the following digits on their mobile or fixed line telephone to control the relays on the device…...

  • Page 16: Setting Up The Free App

    Setting up the Free App on Android & Iphone Android and Iphone users can download an optional app called CellcomPRIME. This makes the procedure of adding and deleting keypad codes easy, as well as other control features. Android Setup Apple Setup 1.

  • Page 17: Using The App On Android

    Using the App on Android Press to change controls from relay 1 to relay 2 (useful for OPEN GATES pedestrian gates) Press to trigger the relay (speed dials intercom for output 1 LATCH / HOLD and sends SMS to OPEN intercom for output 2) Press to hold ON the relay...
  • Page 18 Do Not Disturb Select the days and times which the push button is to be active. Any button press outside of these times will be ignored. Turn ON the feature, select days and times as shown. TIP: Enter times in 24 hour format without any colon. Out of Hours For commercial installations, sometimes it is desirable to call an alternate number after the “do...
  • Page 19 Automatic Triggering Times This feature is for automatic gate systems which are not in automatic closing mode, and are in step-by- step mode. I.e. When triggered they open and stay open until triggered again. You can use this feature to automatically trigger gates to perhaps open every morning at a pre-set time, or close every night at a pre-set time.
  • Page 20 Keypad Codes Timed Code Permanent Code Tip: Select relay 1 or 2. Tip: For time restricted Tip: Enter 1 sec for codes. automatic gates or strike lock, 7 secs for mag lock. 0 for latching Temporary Code Delete Code General Tips Permanent codes can be programmed for relay 1 or relay 2.

  • Page 21: Using The App On Iphone

    Using the app on Iphone Press to change controls from relay 1 OPEN GATES to relay 2 (useful for Press to trigger the pedestrian gates) relay (speed dials intercom for output 1 and sends SMS to intercom for output 2) LATCH / HOLD OPEN Press to hold ON the...
  • Page 22 Do Not Disturb Select the days and times which the push button is to be active. Any button press outside of these times will be ignored. Turn ON the feature, select days and times as shown. TIP: Enter times in 24 hour format without any colon. Out of Hours For commercial installations, sometimes it is desirable to call an alternate number after the “do...
  • Page 23 Automatic Triggering Times This feature is for automatic gate systems which are not in automatic closing mode, and are in step-by- step mode. I.e. When triggered they open and stay open until triggered again. You can use this feature to automatically trigger gates to perhaps open every morning at a pre-set time, or close every night at a pre-set time.
  • Page 24 Keypad Codes Timed Code Permanent Code Tip: Select relay 1 or 2. Tip: For time restricted Tip: Enter 1 sec for codes. automatic gates or strike lock, 7 secs for mag lock. 0 for latching Temporary Code Delete Code General Tips Permanent codes can be programmed for relay 1 or relay 2.

  • Page 25: Control By Sms

    Control by SMS This intercom allows a user to send SMS commands to control the relays and check status as follows (assuming default passcode is still 1234)… 1234#1# - Relay 1 momentary trigger. 1234#4# - Relay 2 momentary trigger. 1234#2# - Relay 1 latch ON or hold ON. 1234#5# - Relay 2 latch ON or hold ON.
  • Page 26 Maintenance of the Intercom The intercom SIM card will need topped up occasionally if it is a pre-pay casual SIM card. It is recommended that you register this SIM card on the provider’s web site. You can register card payment details. Many networks offer an auto top up feature, which means they will automatically top up your intercom when the balance runs low.

  • Page 27: Maintenance And Troubleshooting

    -Change SIM card if necessary to another network which may have better coverage. -Purchase a high gain antenna. -Increase height of antenna. This may also be caused by a defective microphone, water on a microphone from a sprinkler for example, or dirt blocking the microphone hole. If reception is optimum and the problem persists, contact your supplier or installer.
  • Page 28 Change History Key: P = Panel version H = Hardware PCB version S = Software version Version Reason for change First version. Power chip upgraded to work on 24v dc (24v adaptor in kits). Software feature added for call log to show last 25 caller ID calls. Main capacitor, regulator &...
  • Page 29 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
