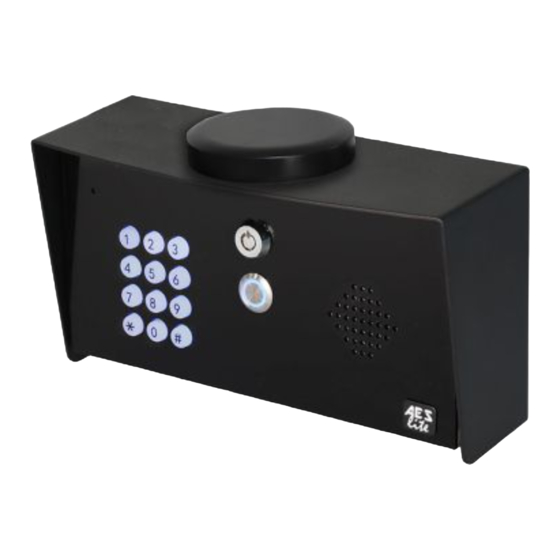

AES CellCOM Lite 4G Manual

CellCOM Lite 4G
* ALWAYS TEST THE UNIT ON SITE BEFORE
SIM Preparation
1
Ensure you read all instructions before continuing.
The SIM cards provided need activated before
use. Follow the instructions provided or visit our
telecoms website for more details:
www.aesglobaltelecom.com
The system will be pre-programmed with the APN for
Tracfone
the network.
If you wish to use a different network then the correct
APN must be set for full operation. See Details overleaf
on setting a new APN.
Relay Connections
Example
4
Gate
Controller
LIGHTNING PRONE AREAS MUST USE SURGE PROTECTION
FOR POWER SUPPLY!
1
- GSM Intercom
INSTALLATION TO AVOID RE-STOCKING FEE *
Site Wiring
!
Use 110V
surge
protection!
14 gauge - 24 ft MAX
Driveway
Gates
FL, LA, MS, AR, OK, MO, AL, IL,
See overleaf for
more PCB details
Turn Over
See full T&C's on our website
SITE SURVEY
2
Earth rod
! close as
possible to
device!
Power
3
To Earth
POWER CABLE
Rod!
TIP:
to power the unit.
Please use the following cable:
Up to 2 metres ( 6 feet )
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
24V DC IN
(PSU included)
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm
Earthing
INGRESS PROTECTION
This product MUST
be EARTHED in
the following states
in order to qualify
for manufacturers
warranty
KY, TN, IN, KS, SC, GA, IA, TX,
OH, NC, NE, MD, WV, VA, DE
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
Please read this entire manual before installing this
product. A full comprehensive manual is available on
our website for additional information.
Ensure there is good
4G signal on site. 4G
units will fall back to
3G service in some
countries.
This product requires a regular voice & SMS SIM card.
Do not use a data only SIM, as this will not work in the unit.
In order to make voice calls on a 4G system
and get optimum service, your SIM and provider will need to offer
VOLTE support (Voice over LTE).
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
Most technical calls received are due to installers using CAT5 or alarm cable
NEITHER are rated to carry enough power! ( 1.2amp peak )
– Use minimum 0.5mm
We recommend sealing all entry holes for prevention of insects that can
cause issues with a risk of shorting out components.
To maintain the IP55 rating please follow the sealing instructions included.
(also available online)
NEED MORE ASSISTANCE?
+1 (321) 900 4599
SCAN THIS QR CODE TO BE BROUGHT TO OUR RESOURCES PAGE.
VIDEOS | HOW-TO GUIDES | MANUALS | QUICK START GUIDES
STILL HAVING TROUBLE?
our website:
WWW.AESGLOBALUS.COM
Set up on a bench in workshop
BEFORE going to site.
Program the unit in the comfort
of your work bench and call
technical support should you
have any questions.
Power
2
( 18 gauge )
Consumption:
2 ( 16 gauge )
Standby = 80mA
2 ( 14 gauge )
Calling Out = 300mA
