Installation; Requirements; Installation Procedure - Pulsar PSDCB09129C Manual

www.pulsar.pl
Operating parameters (tab.6)
Operating temperature
Storage temperature
Relative humidity
Vibrations during operation
Impulse waves during operation
Direct insulation
Vibrations and impulse waves during transport

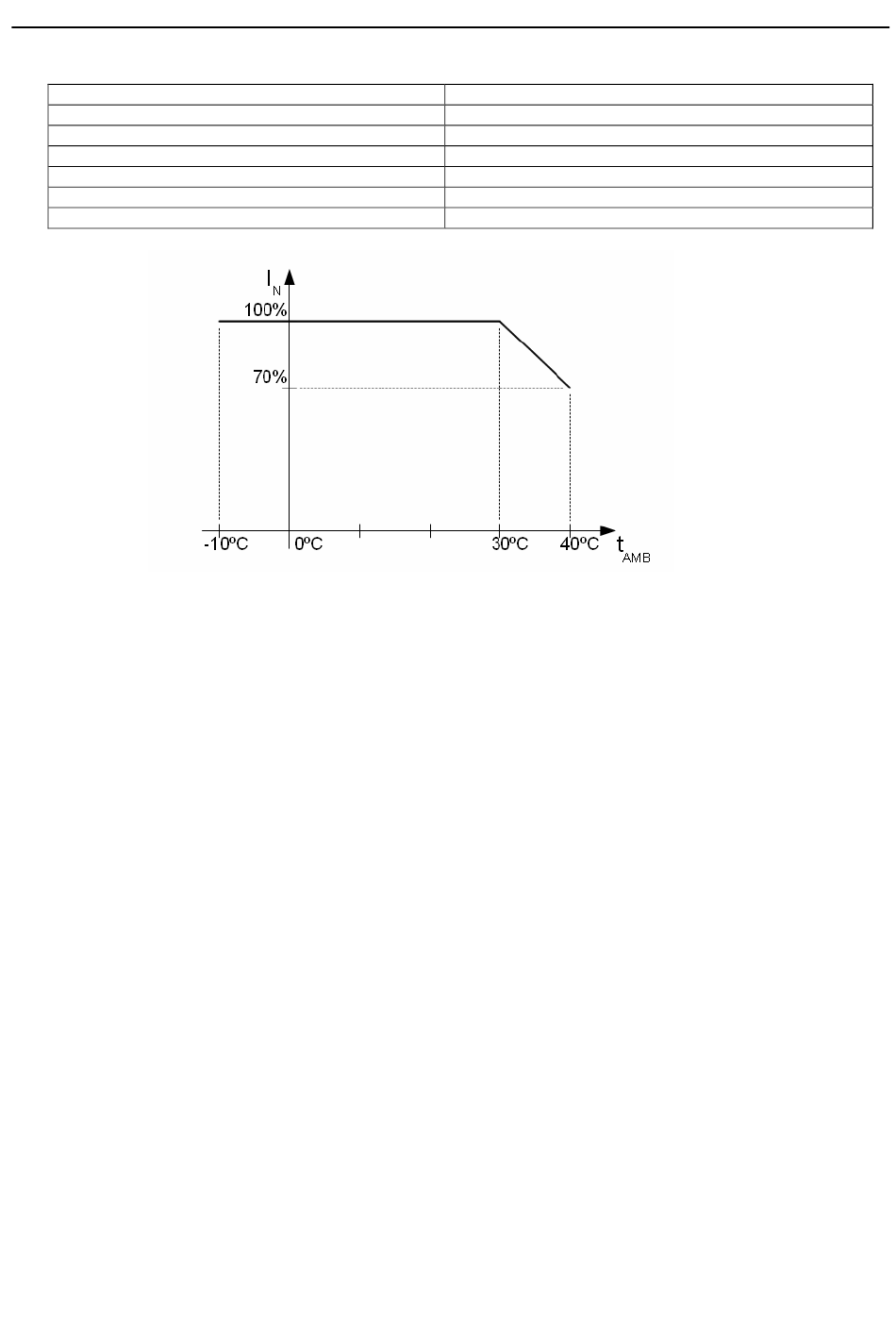

Chart 1. Acceptable output current from the PSU depending on ambient temperature.

2. Installation.

2.1 Requirements.

The buffer PSU shall be mounted by a qualified installer with appropriate permissions and qualifications for
230V/AC installations and low-voltage installations (required and necessary for a given country). The device shall
be mounted in confined spaces, according to the environment class II, with normal air humidity (RH=90% max.
without condensation) and the temperature from -10°C to +40° C. The PSU shall work in a vertical positi on that
guarantees sufficient convectional air-flow through ventilating holes of the enclosure.
Before installation, prepare a PSU load balance:
As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an
appropriate overload protection shall be guaranteed in the power supply circuit. Moreover, the user shall be
informed about the method of unplugging (usually through assigning an appropriate fuse in the fuse-box). The
electrical system shall follow valid standards and regulations.

2.2 Installation procedure.

1. Before installation, cut off the voltage in the 230V power-supply circuit.
2. Mount the PSU in a selected location and connect the wires.
3. Connect the power cables (~230VAC) to L-N clips of the PSU. Connect the ground wire to the clip marked by the
earth symbol PE (PSU module connector). Use a three-core cable (with a yellow and green PE protection wire) to
make the connection. Lead the cables to the appropriate clips through the insulating bushing of the connection
board.
PSDCB09129C
-10ºC...+40ºC (see: chart 1)
-20ºC...+60ºC
20%...90%, without condensation
unacceptable
unacceptable
unacceptable
According to PN-83/T-42106
1. Output current 9x1A + 1A battery charge
2. Output current 9x0,77A + 4A battery charge
Total device current + battery: 11A max.
6
