- Page 1 USER MANUAL Edition: 1 from 06.09.2021 Supersedes edition: Power supplies PSDC series v1.0 Enclosed multi-output power supply units PSDC series...
- Page 2 1.1. General description. PSDC series stabilized power supplies are designed to supply power to HD cameras or other devices requiring stabilized voltage of 12 V DC. Output voltage is adjusted with a potentiometer within the range of 12 - 15 V DC. The PSU features 4, 8 or 16 outputs (depending on the model), protected independently by glass fuses.

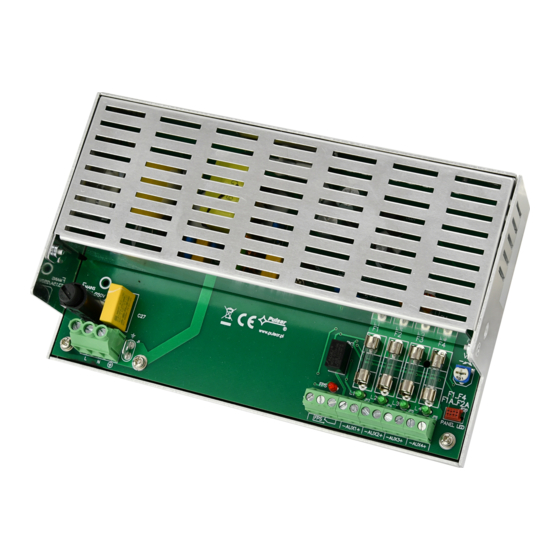

- Page 3 Fig. 1a. View of power supply module PSDC-12V4x1A Fig. 1b. View of power supply module PSDC-12V8x1A...
- Page 4 Fig. 1c. View of power supply module PSDC-12V16x1A 1.3. Specifications. - electrical parameters (tab. 3) - operation safety (tab. 4) - operating parameters (tab. 5) Table 3. Electrical parameters. Model PSDC-12V4x1A PSDC-12V8x1A PSDC-12V16x1A ~ 200 – 240 V Supply voltage Current consumption 0,5 A 0,8 A...
- Page 5 Net/gross weight 0,48 / 0,52 [kg] 0,58 / 0,64 [kg] 1,08 / 1,13 [kg] Optional equipment: optional equipment: set of external LED indicators: PKAZ168, mounting plate DIN 4 Power supply: 0,5 – 2,5 mm (AWG 26 – 12) Connectors AUX outputs and technical outputs: 0,5 – 2,5 mm (AWG 26 –...
- Page 6 Mount the PSU in a selected location and connect the wires. Connect power cables (~230 V AC) to L-N clips of PSU. Connect ground wire to clip marked by earth symbol Use a three-core cable (with a yellow and green protection wire) to make connection Lead the cables to the appropriate clips through the insulating bushing of the PSU.
- Page 7 According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as unsorted municipal waste and to collect such WEEE separately Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
