- Page 1 PSDC161224T v.1.0 PSDC 12V/24A/16x1,5A/TOPIC Switched mode power supply for CCTV. Edition: 1 from 30.09.2014 Supersedes the: --------------...
-
Page 2: Table Of Contents

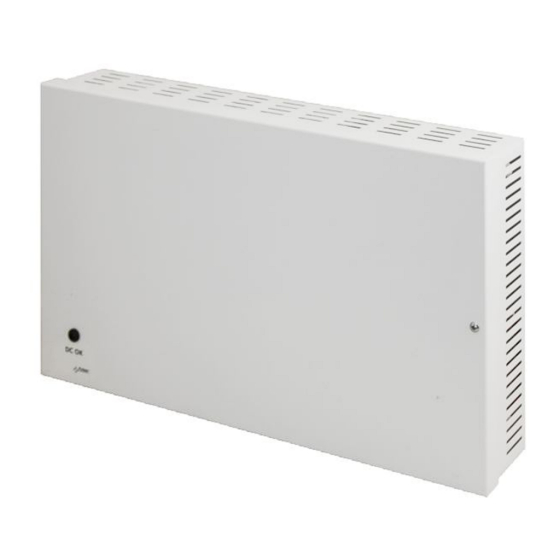

1. Technical description. 1.1 General description. The stabilized PSU PSDC161224T is intended for supplying CCTV devices requiring stabilised voltage of 12V DC. The output voltage adjustment range is adjusted via a potentiometer within the range of 12V÷15V DC. The PSU features 16 outputs protected independently by glass fuses. A failure (a short circuit) in the output circuit makes a fuse blow or an activation of the fuse and disconnection of the circuit from the DC power supply (+U). -
Page 3: Description Of Psu Components And Connectors
PSDC161224T 1.3. Description of PSU components and connectors. Table 1. Elements of the PSU pcb (see fig. 2). Element no. Description L1…..L4 (green) LEDs (indicating fuse activation) F1…F4 glass fuses in AUX (+) circuits IN supply input of the LB4 strip AUX1…. -
Page 4: Specifications
PSDC161224T 1.4. Specifications: - electrical specifications (tab.3) - mechanical specifications (tab.4) - operation safety (tab.5) - operating specifications (tab.6) Electrical specifications (tab. 3). 88 ÷ 264V AC Supply voltage Current consumption 2A @230VAC max. PSU power 320Wmax. Efficiency Output voltage 12V DC 16x 1,5A (Σ... -
Page 5: Installation
PSDC161224T 2. Installation. 2.1 Requirements. The stabilized PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230V/AC interference and low-voltage installations. The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90% maximum, without condensation) and temperature from -10°C to +40°C. -
Page 6: Maintenance
WEEE separately. GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a two-year warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such...
