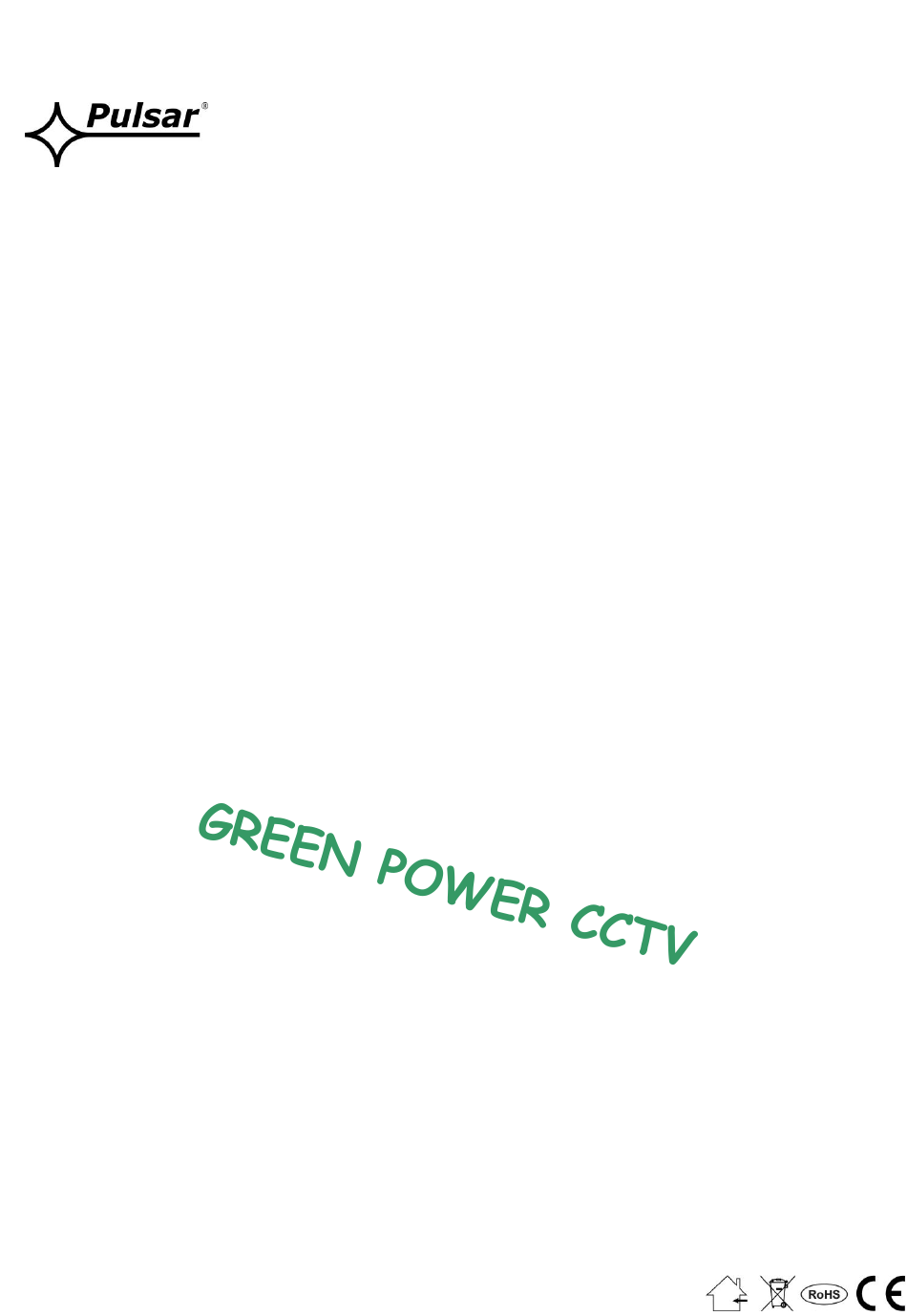

- Page 1 PSDCB09125C v.1.0 PSDCB 13,8V/5A/9x0,5A/17Ah Buffer power supply for up to 9 analog cameras. Edition: 5 from 25.05.2015 Supercedes the edition: 4 from 16.12.2014...
- Page 2 PSDCB09125C Features: DC 13,8V/5A* uninterruptible power supply battery output full protection against short-circuit and reverse polarity connection 9 outputs, protected with 0,5A glass fuses LED indication fitting battery: 17Ah/12V wide range of mains supply: 176÷264V protections: ...
- Page 3 PSDCB09125C 1. Technical description. 1.1 General description. A buffer PSU is intended for an uninterrupted supply to devices requiring stabilised voltage of 12V DC (+/-15%). The PSU provides voltage of U=13,8V DC. Current efficiency: 1. Output current 9x0,5A + 1A battery charge 2.
- Page 4 PSDCB09125C Table 2. Description of PSU components and connectors (tab.2) Element no. Description [Fig. 3] PSU module L-N power-supply connector 230V/AC, PE protection connector green LED indicates AC power P1 potentiometer, output voltage adjustment BAT+/GND: battery outputs + BAT=red, - GND=black...
- Page 5 PSDCB09125C 1.4 Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operation safety (tab.5) - operating parameters (tab.6) Electrical parameters (tab. 3) 176÷264V AC Mains supply Current up to 0.95A@230V AC max. Supply power 100W max. Efficiency 11V÷13,8V DC – buffer operation Output voltage 9,5V÷13,8V DC –...
- Page 6 PSDCB09125C Operating parameters (tab.6) -10ºC...+40ºC (see: chart 1) Operating temperature Storage temperature -20ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insulation unacceptable Vibrations and impulse waves during transport According to PN-83/T-42106 Chart 1.
- Page 7 PSDCB09125C 4. Connect the receivers’ cables to the AUX1…AUX9 connectors on the LB9. 5. Connect the power (~230V) 6. Connect the battery (mind the colours): - battery output (+V): BAT+ cable / red, - battery output (- V): BAT – cable / GND / black.
- Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar (the manufacturer) grants a two-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such...
