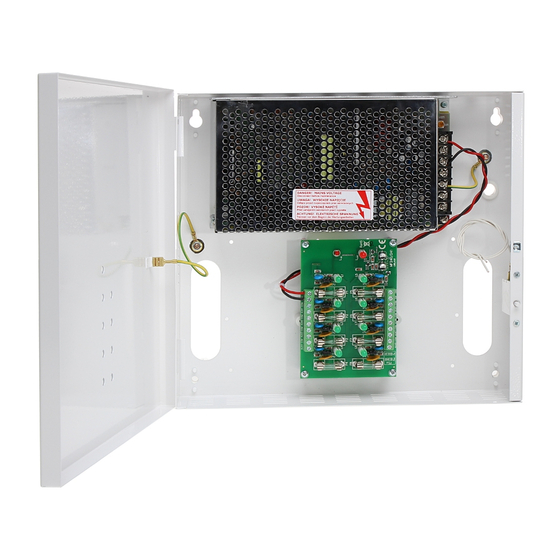

Power supply for up to 8 hd cameras - ptc/topic.

Advertisement

Quick Links

PSDC 08128
v.1.3
PSDC 12V/8A/8x1A
Power supply for up to 8 HD cameras - PTC/TOPIC.
EN**
Edition: 12 from 11.10.2017
Supersedes the edition: 11 from 24.04.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSDC08128 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pulsar PSDC08128

  • Page 1 PSDC 08128 v.1.3 PSDC 12V/8A/8x1A Power supply for up to 8 HD cameras - PTC/TOPIC. EN** Edition: 12 from 11.10.2017 Supersedes the edition: 11 from 24.04.2017...
  • Page 2 PSDC08128 Features: • • 8x1A/12V DC power output for powering FPS technical output of fuse activation 8 HD cameras indication • • output voltage adjustment 12V÷15V DC protections: • • SCP short-circuit protection 8 outputs protected with 1A fuses •...
  • Page 3 1. Technical description. 1.1 General description. The PSDC08128 stabilized power supply is designed to supply HD cameras or other devices requiring stabilized voltage of 12V DC. The output voltage adjustment range is adjusted via a potentiometer within the range of 12V÷15V DC. The PSU features 8 outputs protected independently by either glass fuses or polymer fuse. A failure (a short circuit) in the output circuit makes a fuse blow or an activation of the polymer fuse and disconnection of the circuit from the DC power supply (+U).
  • Page 4 PSDC08128 Fig. 2. The view of the PSU’s PCB. Table 2. Elements of the PSU (see fig. 3). Description Element no. L-N 230V AC power connectors, PE protection connector LED indication of DC power status, main module of the PSU PSU module , potentiometer, output voltage adjustment within the range of 12V÷15V DC...
  • Page 5 PSDC08128 1.4. Specifications: - electrical specifications (tab.3) - mechanical specifications (tab.4) - operation safety (tab.5) - operating specifications (tab.6) Electrical specifications (tab. 3). Supply voltage 176 ÷ 264V AC Current consumption 0,9A@230VAC max. PSU power 120W max. Efficiency Output voltage...
  • Page 6 PSDC08128 Operating specifications (tab.6). Operating temperature -10ºC...+50ºC Storage temperature -25ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insolation unacceptable Vibrations and impulse waves during transport PN-83/T-42106 2. Installation. 2.1 Requirements. The stabilized PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230V/AC interference and low-voltage installations.
  • Page 7 PSDC08128 3.1. LED indication (fig. 4.). • LED1…LED8 green diodes indicate power at the outputs: LB8- AUX1…AUX8. In case of a power loss at the output (fuse activation), an appropriate diode goes out. (L1 for AUX1, L2 for AUX2 etc.) •...
  • Page 8 PSDC08128 WEEE MARKING According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as unsorted municipal waste and to collect such WEEE separately. Pulsar Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
