- Page 1 PSDC05125T v.1.0 PSDC 12V/5A/5x1A/TOPIC Power supply for up to 5 analog cameras. Edition: 4 from 25.05.2015 Supersedes the: 3 from 12.12.2013...
- Page 2 PSDC05125T Features: the 5x1A/12V DC power output for powering protections: 5 analog cameras SCP short-circuit protection output voltage adjustment 12V÷15V DC OVP over voltage protection 5 outputs protected with 1A fuses surge protection ...
- Page 3 1.1 General description. stabilized power supply is designed to supply analog cameras or other devices requiring The PSDC05125T stabilized voltage 12V DC. The output voltage adjustment range is adjusted via a potentiometer within the range of 12V÷15V DC. The PSU features 5 outputs protected independently by glass fuses. A failure (a short circuit) in the output circuit makes a fuse blow or an activation of the fuse and disconnection of the circuit from the DC power supply (+U).

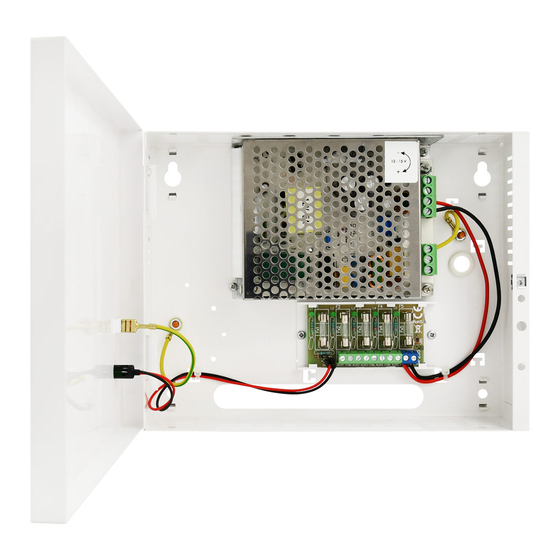

- Page 4 PSDC05125T Fig.3. The view of the PSU. 1.4. Specifications: - electrical specifications (tab.3) - mechanical specifications (tab.4) - operation safety (tab.5) - operating specifications (tab.6) Electrical specifications (tab. 3). 85 ÷ 264V AC Supply voltage Current consumption 0,6A @230VAC max.
- Page 5 PSDC05125T Operation safety (tab.5). Protection class PN-EN 60950-1:2007 I (first) Protection grade PN-EN 60529: 2002 (U) IP20 Electrical strength of insulation: - between input (network) circuit and output circuits of the PSU (I/P-O/P) 3000V/AC min. - between input circuit and PE protection circuit (I/P-FG) 1500V/AC min.
- Page 6 WEEE separately. GENERAL WARRANTY CONDITIONS 1. Pulsar (the manufacturer) grants a two-year warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such...
