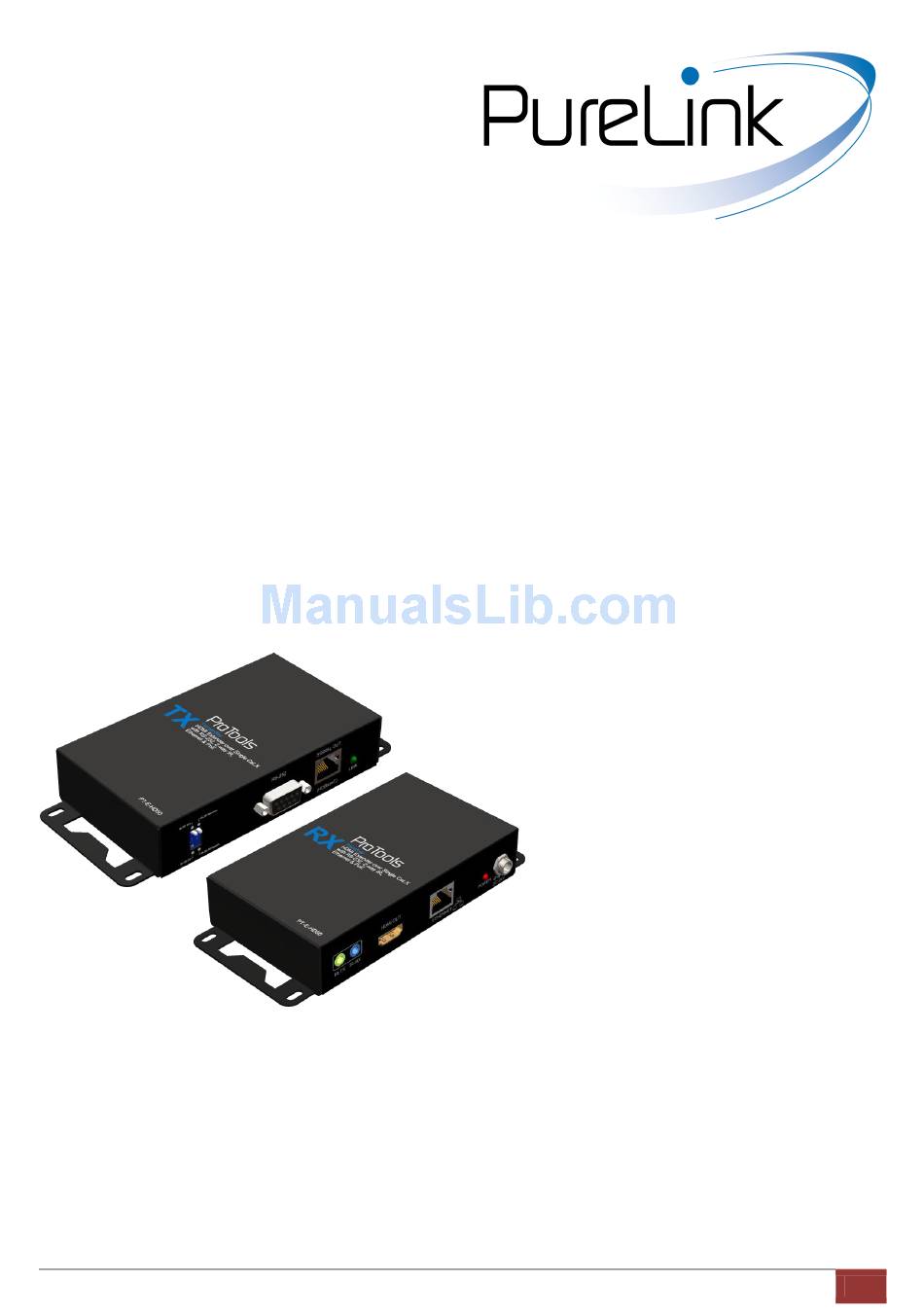

- Page 1 HDMI Extender over Single Cat.X with RS-232, 2-way IR, Ethernet & PoE User’s Guide Model no. PT-E-HD50 Designed in Germany Made in Taiwan © 2010 PureLink GmbH. All rights reserved. www.purelink.de...
-
Page 2: Table Of Contents
Section 1: Getting Started ....................3 Safety and Notice ....................3 Introduction ......................3 Package Contents ....................4 Panel Descriptions ....................4 Installation ......................6 Section 2: Specifications ....................7 Section 3: Notice ........................ 8 Section 4: Performance Guide ................... 8 www.purelink.de... -
Page 3: Section 1: Getting Started
TX or RX with power supply. The PT-E-HD50 includes two units: transmitting unit PT-E-HD50-TX and receiving unit PT-E-HD50-RX. The transmitting unit is used to capture the input HDMI / DVI signals with IR control packets and carry the signals via one cost effective Cat.5/5e/6 cable. -
Page 4: Package Contents
IR RX: Infrared 3.5mm socket for plugging in the extension cable of IR receiver HDMI IN: Connects to a HDMI source with a HDMI male-male cable Ethernet LED: Power indicator +24V DC: Connect to a 5V DC power supply. www.purelink.de... - Page 5 IR RX: Infrared 3.5mm socket for plugging in the extension cable of IR receiver HDMI OUT: Connect to a HDMI display with a HDMI male-male cable Ethernet LED: Power indicator +24V DC: Connect to a 5V DC power supply. www.purelink.de...
-
Page 6: 1.5 Installation
OFF [] 1.5 Installation 1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit PT-E-HD50-TX. 2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit PT-E-HD50-RX. 3. Connect IR Blaster/Receiver to both TX and RX units. -
Page 7: Section 2: Specifications
Section 2: Specifications Item Description Units PT-E-HD50-TX PT-E-HD50-RX Unit Description Transmitter Receiver HDMI compliance HDMI Deep Color, full 3D & 4K2K@30 HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 HDMI over UTP... -
Page 8: Section 3: Notice
Type of CAT5/6 cable Wiring Shielding CAT5 CAT5e CAT6 Unshielded (UTP) Solid Shielded (STP) Unshielded (UTP) Stranded Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time www.purelink.de...
