IEI Technology IKARPC-W10A User Manual
  1. Manuals
  2. Brands
  3. IEI Technology Manuals
  4. Touch Panel
  5. IKARPC-W10A
  6. User manual

IEI Technology IKARPC-W10A User Manual

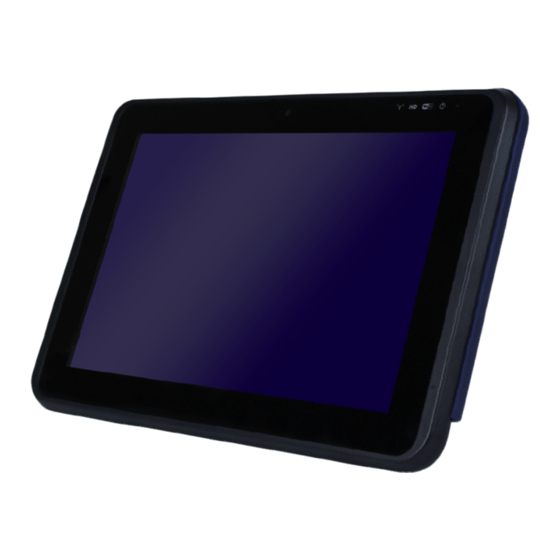

10.1” in-vehicle panel pc with touchscreen, intel atom processor e3826, obd-ii, gps, usb 2.0/3.0, hdmi, rs-232/422/485, rohs compliant, ip 64 front panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

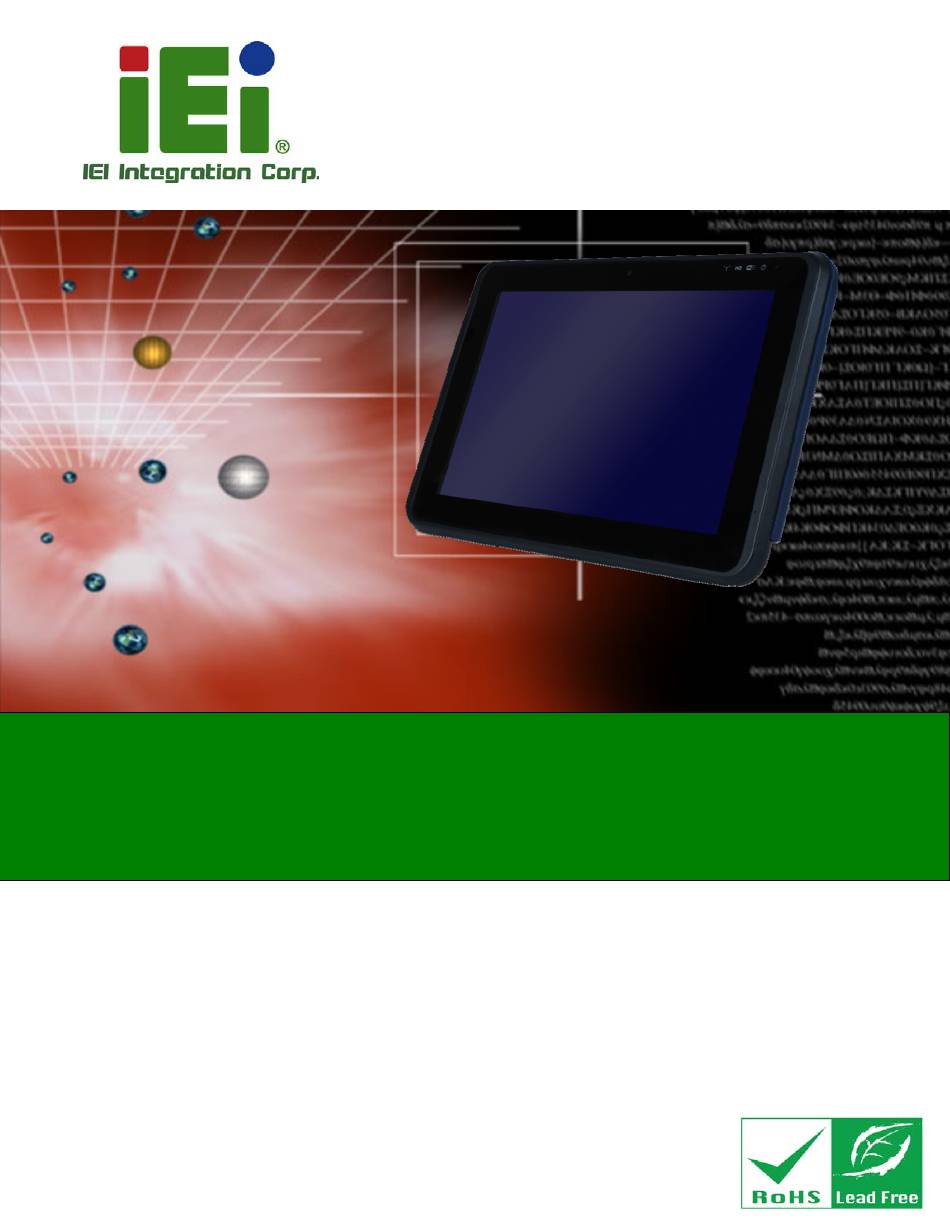

IKARPC-W10A-BT In-vehicle Panel PC
MODEL:
IKARPC-W10A-BT
10.1" In-Vehicle Panel PC with Touchscreen,
Intel® Atom™ Processor E3826, OBD-II, GPS, USB 2.0/3.0,
HDMI, RS-232/422/485, RoHS Compliant, IP 64 Front Panel
User Manual
Page I
Rev. 1.03 – February 7, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IKARPC-W10A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology IKARPC-W10A

Summary of Contents for IEI Technology IKARPC-W10A

  • Page 1 IKARPC-W10A-BT In-vehicle Panel PC MODEL: IKARPC-W10A-BT 10.1” In-Vehicle Panel PC with Touchscreen, Intel® Atom™ Processor E3826, OBD-II, GPS, USB 2.0/3.0, HDMI, RS-232/422/485, RoHS Compliant, IP 64 Front Panel User Manual Page I Rev. 1.03 – February 7, 2017...
  • Page 2 IKARPC-W10A-BT In-vehicle Panel PC Revision Date Version Changes February 7, 2017 1.03 Updated power cable part number and image Added HDD/SSD installation instruction (Section 3.5) July 27, 2016 1.02 Updated Section 4.3: Mobile AP July 23, 2015 1.01 Added a SD card compatibility issue notice.
  • Page 3 IKARPC-W10A-BT In-vehicle Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 IKARPC-W10A-BT In-vehicle Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    IKARPC-W10A-BT In-vehicle Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 F ........................2 EATURES 1.3 F ......................3 RONT ANEL 1.3.1 LED Indicators....................4 1.4 R ....................... 5 ANEL 1.5 B ......................5 OTTOM ANEL 1.6 R...
  • Page 6 IKARPC-W10A-BT In-vehicle Panel PC 4 SOFTWARE DRIVERS ....................32 4.1 U CD A ................... 33 TILITY 4.2 D ........................34 RIVERS 4.3 M AP ......................36 OBILE 4.3.1 Installation ....................... 36 4.3.2 Usage ....................... 37 5 BIOS ..........................39 5.1 I ......................
  • Page 7 IKARPC-W10A-BT In-vehicle Panel PC 6.2 I ..............72 NTERNAL ERIPHERAL ONNECTORS 6.2.1 Battery Connector (BT1).................. 73 6.2.2 BIOS Flash Connector (JSPI1)................ 73 6.2.3 Camera Connector (WEB1)................73 6.2.4 Clear CMOS Connector (C_CMOS1) ............. 74 6.2.5 Debug Port Connector (DBG_PORT1) ............74 6.2.6 LED Connector (JLED1) .................
  • Page 8 IKARPC-W10A-BT In-vehicle Panel PC E HAZARDOUS MATERIALS DISCLOSURE ............104 Page VIII...
  • Page 9 IKARPC-W10A-BT In-vehicle Panel PC List of Figures Figure 1-1: IKARPC-W10A-BT Panel PC ..................2 Figure 1-2: Front View ........................3 Figure 1-3: LED Indicators......................4 Figure 1-4: Rear Panel........................5 Figure 1-5: Bottom View ........................6 Figure 1-6: Right Side Panel......................6 Figure 1-7: Top Panel ........................7 Figure 1-8: Dimensions (unit: mm) .....................10...
  • Page 10 IKARPC-W10A-BT In-vehicle Panel PC Figure 6-2: Main Board Layout Diagram (Solder Side) .............71 Page X...
  • Page 11 IKARPC-W10A-BT In-vehicle Panel PC List of Tables Table 1-1: LED Indicators ......................4 Table 1-2: Technical Specifications....................9 Table 2-1: Packing List.........................13 Table 2-2: Optional Items......................15 Table 3-1: RS-232 Connector Pinouts ..................25 Table 3-2: GPIO and RS-422/485 Connector Pinouts..............26 Table 3-3: OBD-II Connector Pinouts ..................27 Table 3-4: Power Input Connector Pinouts................29...

  • Page 13: Introduction

    IKARPC-W10A-BT In-vehicle Panel PC Chapter Introduction Page 1...

  • Page 14: Overview

    1.1 Overview Figure 1-1: IKARPC-W10A-BT Panel PC The IKARPC-W10A-BT is a 10.1” panel PC designed for in-car use. At the heart of the system is the Intel® Atom™ processor E3826, offering low power in a powerful package. The system also offers a multimedia experience with a built-in 2-megapixel camera, HDMI port, speaker, line-in jack and mic-in jack.

  • Page 15: Front Panel

     IP 64 compliant front panel  RoHS compliance 1.3 Front Panel The front of the IKARPC-W10A-BT is a flat panel screen with a plastic frame. The components on the front panel are listed below:  2-megapixel camera  Ambient light sensor ...

  • Page 16: Led Indicators

    IKARPC-W10A-BT In-vehicle Panel PC 1.3.1 LED Indicators The LED indicators on the front panel show the status of power, HDD, Wi-Fi and GPRS/HSUPA connection. Figure 1-3: LED Indicators The system is off with power connected Blue The system is turned on...

  • Page 17: Rear Panel

    IKARPC-W10A-BT In-vehicle Panel PC 1.4 Rear Panel The rear panel has VESA mounting screw holes and a 2 W speaker. It also contains a SIM card slot access panel. Figure 1-4: Rear Panel 1.5 Bottom Panel The following I/O connectors can be found on the bottom panel: ...

  • Page 18: Right Side Panel

    IKARPC-W10A-BT In-vehicle Panel PC Figure 1-5: Bottom View 1.6 Right Side Panel The right side panel provides access to the following I/O connectors:  1 x Audio line-out jack  1 x Audio mic-in jack  1 x USB 2.0 connector ...

  • Page 19: Top Panel

    The top panel has a power button. Press the power button for 4–6 seconds to power on/off the system. Figure 1-7: Top Panel 1.8 System Specifications The technical specifications for the IKARPC-W10A-BT systems are listed in Table 1-2. System Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W TDP) Memory...
  • Page 20 IKARPC-W10A-BT In-vehicle Panel PC Auto-dimming Ambient light sensor on the front panel Communication 1 x 10/100/100 Mbps RJ-45 (PCIe GbE RTL8111E) Built-in u-blox LEA-6S GPS module with external antenna connector Wireless LAN (Optional) 802.11b/g/n 1T1R PCIe Mini Wi-Fi module Bluetooth (Optional) Bluetooth 2.1 (combo with WWAN)

  • Page 21: Table 1-2: Technical Specifications

    IKARPC-W10A-BT In-vehicle Panel PC 1 x HDMI (up to 1920 x 1080 @ 60 Hz) 1 x OBD-II/CAN-bus 2 x RS-232 serial ports 1 x RS-422/485 serial port and GPIO (4-bit input/4-bit output) 1 x USB 3.0 Side Panel: 1 x Audio line-out...

  • Page 22: Dimensions

    IKARPC-W10A-BT In-vehicle Panel PC 1.9 Dimensions The dimensions are shown below. Figure 1-8: Dimensions (unit: mm) Page 10...

  • Page 23: Unpacking

    IKARPC-W10A-BT In-vehicle Panel PC Chapter Unpacking Page 11...

  • Page 24: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the IKARPC-W10A-BT was purchased from or contact an IEI sales representative directly by sending an email to ales@ieiworld.com.

  • Page 25: Optional Items

    IKARPC-W10A-BT In-vehicle Panel PC Quantity Item Image IKARPC-W10A-BT in-vehicle panel PC ACC power cable kit (P/N: 32002-001900-100-RS + 30600-000056-RS) GPS/GSM antenna (P/N: 32506-000100-100-RS) User manual CD and driver CD Table 2-1: Packing List 2.2 Optional Items The following are optional components which may be separately purchased:...
  • Page 26 IKARPC-W10A-BT In-vehicle Panel PC Item Image WWAN kit (assemble-to-order) (P/N: IKARPC-3G-KIT02-R10) Power adapter with transfer cable (P/N: IVIPOWER-4PIN-R10) Cigarette lighter power cable (P/N: 32002-004000-100-RS) OBD-II cable (P/N: 32025-000300-100-RS) J1939/FMS cable (P/N: 32025-000400-100-RS) VESA mount stand (138 mm) (P/N: IVI-MK01-R10) Page 14...

  • Page 27: Table 2-2: Optional Items

    IKARPC-W10A-BT In-vehicle Panel PC Item Image VESA mount stand (286 mm) (P/N: IVI-MK02-R10) Windows Embedded 7 CD (P/N: IKARPC-W10A-BT-WES7P-R10) Windows Embedded 8 CD (P/N: IKARPC-W10A-WE8S-R10) Table 2-2: Optional Items If any of these items are missing or damaged, contact the distributor or sales representative immediately.

  • Page 28: Installation

    IKARPC-W10A-BT In-vehicle Panel PC Chapter Installation Page 16...

  • Page 29: Anti-Static Precautions

    IKARPC-W10A-BT and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IKARPC-W10A-BT. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IKARPC-W10A-BT is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered ...

  • Page 30: Sd Card Installation

    IKARPC-W10A-BT In-vehicle Panel PC  Anti-static Discharge: If a user open the rear panel of the flat panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear an anti-static wristband. 3.3 SD Card Installation To install the SD card, follow the instructions below.

  • Page 31: Sim Card Installation

    Step 0: 3.4 SIM Card Installation WARNING: The IKARPC-W10A-BT is not compatible with a micro-SIM (3FF) adapter or a nano-SIM (4FF) adapter. Please install a mini-SIM (2FF or Standard SIM) card for proper network connection. To install the SIM card, follow the instructions below.

  • Page 32: Hdd/Ssd Installation

    SIM 1 and SIM2. Please refer to Section 4.3 for more detail. 3.5 HDD/SSD Installation The IKARPC-W10A-BT allows an internal 2.5” HDD or SSD to be installed in the system. To install a HDD or an SSD into the system, please follow the steps below:...

  • Page 33: Figure 3-5: Back Cover Retention Screws

    IKARPC-W10A-BT In-vehicle Panel PC Remove the 11 retention screws from the back cover (Figure 3-5) and gently lift Step 2: the back cover off the system. Two types of screw are used for securing the back cover. Be aware of this for re-installing the back cover.

  • Page 34: Figure 3-6: Hdd Holder Bracket Retention Screw

    IKARPC-W10A-BT In-vehicle Panel PC Remove the HDD holder bracket by removing the retention screw shown in Step 3: Figure 3-6. Figure 3-6: HDD Holder Bracket Retention Screw CAUTION: When installing the HDD/SSD and the holder bracket, carefully route the antenna cables to avoid any damages to the cables and the device.

  • Page 35: Figure 3-7: Hdd Installation

    IKARPC-W10A-BT In-vehicle Panel PC Figure 3-7: HDD Installation Secure the HDD with the holder bracket by fastening the previously removed Step 5: retention screw (Figure 3-8). Figure 3-8: Secure HDD with Holder Bracket Re-install the back cover and secure it with the previously removed retention Step 6: screws.

  • Page 36: Mounting The System

    The IKARPC-W10A-BT is VESA (Video Electronics Standards Association) compliant and can be mounted on a mounting device with a 100 mm interface pad. The IKARPC-W10A-BT VESA mount retention screw holes are shown in Figure 3-9. Refer to the installation documentation that came with the mounting device to mount the IKARPC-W10A-BT.

  • Page 37: External I/O Connectors

    This section provides an overview of the external I/O connectors of the IKARPC-W10A-BT. 3.7.1 COM Port Connection The IKARPC-W10A-BT has two DB-9 connectors for RS-232 serial port connection. The pinouts for the RS-232 connectors are listed in the figure and table below. Figure 3-10: RS-232 Connector (COM1, COM2) PIN NO.

  • Page 38: Gpio And Rs-422/485 Connection

    IKARPC-W10A-BT In-vehicle Panel PC 3.7.2 GPIO and RS-422/485 Connection The IKARPC-W10A-BT has one DB-15 connector for GPIO and RS-422/485 connection. The pinouts for the GPIO and RS-422/485 connector are listed in the figure and table below. Figure 3-11: GPIO and RS-422/485 Connector PIN NO.

  • Page 39: Obd-Ii Connection

    IKARPC-W10A-BT In-vehicle Panel PC 3.7.3 OBD-II Connection The IKARPC-W10A-BT has one DB-9 connector for OBD-II/CAN-bus connection. The pinouts for the OBD-II connector are listed in the figure and table below. Figure 3-12: OBD-II Connector PIN NO. DESCRIPTION OBD-CAN_H ISO-9141-2-K OBD-CAN_L...

  • Page 40: Figure 3-13: Obd-Ii Cable And J1939/Fms Cable

    IKARPC-W10A-BT In-vehicle Panel PC [Optional Choice] The OBD-II cable and J1939/FMS cable (Figure 3-13) can be purchased separately. The user can use these cables to connect the IKARPC-W10A-BT with the vehicle. OBD-II Cable J1939/FMS Cable Figure 3-13: OBD-II Cable and J1939/FMS Cable The pinout locations of OBD-II cable connector and J1939/FMS cable connector are shown below.

  • Page 41: Power Input Connection

    BATTERY ACCON Table 3-4: Power Input Connector Pinouts The IKARPC-W10A-BT can use either ACC power or DC power from the vehicle. To use ACC power, connect the IKARPC-W10A-BT to the vehicle through the ACC power cable. See Figure 3-17. Figure 3-17: ACC Power Cable...

  • Page 42: Power-On Procedure

    To power-on the IKARPC-W10A-BT, connect either the ACC power cable or the optional cigarette lighter power cable from the IKARPC-W10A-BT to the vehicle. The IKARPC-W10A-BT will automatically turn on once the power is connected.

  • Page 43: Power State

    (selectable) Table 3-5: Power State and Ignition System 3.9 System Maintenance If the components of the IKARPC-W10A-BT fail, they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. NOTE: A user cannot replace a motherboard. If the motherboard fails it must be shipped back to IEI to be replaced.

  • Page 44: Software Drivers

    IKARPC-W10A-BT In-vehicle Panel PC Chapter Software Drivers Page 32...

  • Page 45: Utility Cd Auto Run

    Visit the IEI website or contact technical support for the latest updates. All the utilities for the IKARPC-W10A-BT are on the CD that came with the system. To install the drivers or utilities, please follow the steps below.

  • Page 46: Drivers

    IKARPC-W10A-BT In-vehicle Panel PC Figure 4-1: Utility CD Menu Click an option from the menu to install the drivers or utilities. Step 3: 4.2 Drivers The utility CD contains drivers for Windows 7 and Windows 8 operating systems. Please select the corresponding drivers for the system.
  • Page 47 IKARPC-W10A-BT In-vehicle Panel PC  Bluetooth  Others: USB 3.0 I/O driver The following drivers can be installed on the Windows 8 operating system:  Chipset Graphics  Audio    WLAN iKarPC-3G-mPCIe: for installing Bluetooth driver, ublox LISA-200 3.75G module driver and IEI Mobile AP application tool ublox_LISA-U200: 3.75G module driver...

  • Page 48: Mobile Ap

    IKARPC-W10A-BT In-vehicle Panel PC 4.3 Mobile AP IEI provides an application tool, Mobile AP, for the users of the IKARPC-W10A-BT with the WWAN module installed to manage mobile network and make a phone call. 4.3.1 Installation To install this application tool, please locate the WLAN folder in the utility CD. This folder contains two files for different operating systems.

  • Page 49: Usage

    IKARPC-W10A-BT In-vehicle Panel PC 4.3.2 Usage To launch the application, double click the MobileAP icon on the Windows desktop. The user interface appears as shown in Figure 4-2. The functions are described below. Figure 4-2: Mobile AP–Connection  Sim card switch: Select a SIM card to designate a SIM card to use or click the Refresh SIM status button to let the system detect automatically.

  • Page 50: Figure 4-3: Mobile Ap-Dial Up

    IKARPC-W10A-BT In-vehicle Panel PC The Mobile AP also allows the user to make a phone call. To use Mobile AP to make a phone call, click the Dial up tab in the Mobile AP. Then, the user interface appears as shown in Figure 4-3.

  • Page 51: Bios

    IKARPC-W10A-BT In-vehicle Panel PC Chapter BIOS Page 39...

  • Page 52: Introduction

    IKARPC-W10A-BT In-vehicle Panel PC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 53: Getting Help

    IKARPC-W10A-BT In-vehicle Panel PC Function Increase the numeric value or make changes Decrease the numeric value or make changes Page Up key Move to the previous page Page Dn key Move to the next page Esc key Main Menu – Quit and not save changes into CMOS...

  • Page 54: Main

    IKARPC-W10A-BT In-vehicle Panel PC The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered.
  • Page 55 IKARPC-W10A-BT In-vehicle Panel PC  Build Date: Date the current BIOS version was made  CPU Information The CPU Information lists a brief summary of the CPU. The fields in CPU Information cannot be changed. The items shown in the system overview include: ...

  • Page 56: Advanced

    IKARPC-W10A-BT In-vehicle Panel PC 5.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus: WARNING: Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.

  • Page 57: Acpi Settings

    IKARPC-W10A-BT In-vehicle Panel PC 5.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI...

  • Page 58: Super Io Configuration

    IKARPC-W10A-BT In-vehicle Panel PC 5.3.2 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 4) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc. Advanced Super IO Configuration...
  • Page 59 IKARPC-W10A-BT In-vehicle Panel PC 5.3.2.1.1 Serial Port 1 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disable the serial port Disabled  Enable the serial port Enabled EFAULT  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 60 IKARPC-W10A-BT In-vehicle Panel PC 5.3.2.1.2 Serial Port 2 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disable the serial port Disabled  Enable the serial port Enabled EFAULT  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 61 IKARPC-W10A-BT In-vehicle Panel PC 5.3.2.1.3 Serial Port 6 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disable the serial port Disabled  Enable the serial port Enabled EFAULT  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 62: Hardware Monitor

    IKARPC-W10A-BT In-vehicle Panel PC  Serial Port I/O port address is 3E0h and the interrupt IO=3E0h; address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12 IRQ=3, 5, 6, 7, 9, 10, 11, 12  Serial Port I/O port address is 2E0h and the interrupt IO=2E0h;...

  • Page 63: Power Management

    IKARPC-W10A-BT In-vehicle Panel PC  Voltages: +SOC_VCC +V5S +12S +1.5S VCC3V VSB3V VSB5V 5.3.4 Power Management Use the Power Management menu (BIOS Menu 7) to configure the power management function. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc.
  • Page 64 IKARPC-W10A-BT In-vehicle Panel PC  Auto Power On Delay [10 sec] Use the Auto Power On Delay option to set the automatic power-on delay time. Configuration options are listed below.  10 sec EFAULT  30 sec  1 min 5 min ...

  • Page 65: Sms/Rtc Wake Settings

    IKARPC-W10A-BT In-vehicle Panel PC 5.3.5 SMS/RTC Wake Settings The SMS/RTC Wake Settings menu (BIOS Menu 8) enables the system to wake at the specified time. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc. Advanced Wake system with SMS...

  • Page 66: Serial Port Console Redirection

    IKARPC-W10A-BT In-vehicle Panel PC allowing you to enable to disable the system to wake every day at the specified time. Besides, the following options appear with values that can be selected: Wake up every day Wake up date Wake up hour...
  • Page 67 IKARPC-W10A-BT In-vehicle Panel PC  Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function.  Disabled the console redirection function Disabled EFAULT  Enabled the console redirection function Enabled  Terminal Type [ANSI] Use the Terminal Type option to specify the remote terminal type.
  • Page 68 IKARPC-W10A-BT In-vehicle Panel PC  Parity [None] Use the Parity option to specify the parity bit that can be sent with the data bits for detecting the transmission errors.  No parity bit is sent with the data bits. None EFAULT ...

  • Page 69: Cpu Configuration

    IKARPC-W10A-BT In-vehicle Panel PC 5.3.7 CPU Configuration Use the CPU Configuration menu (BIOS Menu 10) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc. Advanced CPU Configuration When enabled, a VMM can utilize the additional Intel(R) Atom(TM) CPU E3826 @ 1.46GHz...
  • Page 70 IKARPC-W10A-BT In-vehicle Panel PC  L2 Cache: Lists the amount of storage space on the L2 cache.  L3 Cache: Lists the amount of storage space on the L3 cache. 64-bit: Indicates if 64-bit OS is supported by the CPU.

  • Page 71: Ide Configuration

    IKARPC-W10A-BT In-vehicle Panel PC 5.3.8 IDE Configuration Use the IDE Configuration menu (BIOS Menu 11) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc. Advanced...

  • Page 72: Usb Configuration

    IKARPC-W10A-BT In-vehicle Panel PC 5.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 12) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 73: Chipset

    IKARPC-W10A-BT In-vehicle Panel PC 5.4 Chipset Use the Chipset menu (BIOS Menu 13) to access the North Bridge and South Bridge configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 74: North Bridge Configuration

    IKARPC-W10A-BT In-vehicle Panel PC 5.4.1 North Bridge Configuration Use the North Bridge menu (BIOS Menu 14) to configure the north bridge chipset. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc. Chipset > Intel IGD Configuration Config Intel IGD Settings.

  • Page 75: Intel Igd Configuration

    IKARPC-W10A-BT In-vehicle Panel PC 5.4.1.1 Intel IGD Configuration Use the Intel IGD Configuration submenu (BIOS Menu 15) to configure the graphics settings. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc. Chipset Intel IGD Configuration Select DVMT 5.0 Pre-Allocated (Fixed)

  • Page 76: South Bridge Configuration

    IKARPC-W10A-BT In-vehicle Panel PC  DVMT Total Gfx Mem [MAX] Use the DVMT Total Gfx Mem option to specify the maximum amount of memory that can be allocated as graphics memory. Configuration options are listed below.  128MB  256MB ...

  • Page 77: Security

    IKARPC-W10A-BT In-vehicle Panel PC  Audio Controller [Enabled] Use the Audio Controller option to enable or disable the High Definition Audio controller.  The onboard High Definition Audio controller is disabled Disabled  onboard High Definition Audio controller Enabled EFAULT automatically detected and enabled ...

  • Page 78: Boot

    IKARPC-W10A-BT In-vehicle Panel PC  Administrator Password Use the Administrator Password to set or change a administrator password.  User Password Use the User Password to set or change a user password. 5.6 Boot Use the Boot menu (BIOS Menu 18) to configure system boot options.
  • Page 79 IKARPC-W10A-BT In-vehicle Panel PC  Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.

  • Page 80: Save & Exit

    IKARPC-W10A-BT In-vehicle Panel PC  Sets display mode to current. Keep Current 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 19) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2015 American Megatrends, Inc.
  • Page 81 IKARPC-W10A-BT In-vehicle Panel PC  Restore Defaults Use the Restore Defaults option to load the optimal default values for each of the parameters on the Setup menus. F3 key can be used for this operation.  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.

  • Page 82: Interface Connectors

    IKARPC-W10A-BT In-vehicle Panel PC Chapter Interface Connectors Page 70...

  • Page 83: Peripheral Interface Connectors

    IKARPC-W10A-BT In-vehicle Panel PC 6.1 Peripheral Interface Connectors The motherboard of the IKARPC-W10A-BT comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 6-1 and Figure 6-2. The Pin 1 locations of the on-board connectors are also indicated in the diagrams below.

  • Page 84: Internal Peripheral Connectors

    Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the IKARPC-W10A-BT motherboard. Pinouts of these connectors can be found in the following sections.

  • Page 85: Battery Connector (Bt1)

    IKARPC-W10A-BT In-vehicle Panel PC Connector Type Label Speaker connector 2-pin wafer JSP1 Touch panel connector 6-pin FPC TOUCH1 Table 6-1: Peripheral Interface Connectors 6.2.1 Battery Connector (BT1) PIN NO. DESCRIPTION VBATT Table 6-2: Battery Connector (BT1) Pinouts 6.2.2 BIOS Flash Connector (JSPI1) PIN NO.

  • Page 86: Clear Cmos Connector (C_Cmos1)

    IKARPC-W10A-BT In-vehicle Panel PC 6.2.4 Clear CMOS Connector (C_CMOS1) PIN NO. DESCRIPTION RTC_RST# Table 6-5: Clear CMOS Connector (C_CMOS1) Pinouts 6.2.5 Debug Port Connector (DBG_PORT1) PIN NO. DESCRIPTION CLK33M RESET FRAME LAD0 LAD1 LAD2 LAD3 SERIRQ VCC3 Table 6-6: Debug Port Connector (DBG_PORT1) Pinouts 6.2.6 LED Connector (JLED1)

  • Page 87: Lvds Connector (Lvds1)

    IKARPC-W10A-BT In-vehicle Panel PC WIFI_LED HDD_LED Table 6-7: LED Connector (JLED1) Pinouts 6.2.7 LVDS Connector (LVDS1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION VLCD_VCOM LCM_RIN3+ VLCD_VDD LCM_RIN0- LCM_RIN0+ VCC_LCD_AVDD LCM_RIN1- LCM_LEDK LCM_RIN1+ LCM_LEDK LCM_RIN2- LCM_RIN2+ VLCD_VGL LCM_CLK- LCM_CLK+ VLCD_VGH LCM_LEDA LCM_RIN3-...

  • Page 88: Microphone Connector (Jmic1)

    IKARPC-W10A-BT In-vehicle Panel PC 6.2.8 Microphone Connector (JMIC1) PIN NO. DESCRIPTION JMIC Table 6-9: Microphone Connector (JMIC1) Pinouts 6.2.9 PCIe Mini Socket for 3.75G Module (MINI_PCIE1) This socket supports USB interface only and voice function. PIN NO. DESCRIPTION PIN NO.

  • Page 89: Pcie Mini Socket For Wireless Module (Mini_Pcie2)

    IKARPC-W10A-BT In-vehicle Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC1.5 VCC3 Table 6-10: PCIe Mini Socket for 3.75G Module (MINI_PCIE1) Pinouts 6.2.10 PCIe Mini Socket for Wireless Module (MINI_PCIE2) This socket supports USB interface and PCIe interface. PIN NO.

  • Page 90: Pcie Mini Socket (Mini_Pcie3)

    IKARPC-W10A-BT In-vehicle Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC1.5 VCC3 Table 6-11: PCIe Mini Socket for Wireless Module (MINI_PCIE2) Pinouts 6.2.11 PCIe Mini Socket (MINI_PCIE3) This socket supports USB interface and PCIe interface. Capture cards or other PCIe Mini modules can be installed into this socket.

  • Page 91: Programming Connector (Jmcu1)

    IKARPC-W10A-BT In-vehicle Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC1.5 VCC3 Table 6-12: PCIe Mini Socket (MINI_PCIE3) Pinouts 6.2.12 Programming Connector (JMCU1) PIN NO. DESCRIPTION MCLR VCC5 ICSP_CLK ICSP_DAT Table 6-13: Programming Connector (JMCU1) Pinouts 6.2.13 Programming Connector (JOBD1) PIN NO.

  • Page 92: Touch Panel Connector (Touch1)

    IKARPC-W10A-BT In-vehicle Panel PC 6.2.15 Touch Panel Connector (TOUCH1) PIN NO. DESCRIPTION USB+ USB- Table 6-16: Touch Panel Connector (TOUCH1) Pinouts Page 80...

  • Page 93: A Regulatory Compliance

    IKARPC-W10A-BT In-vehicle Panel PC Appendix Regulatory Compliance Page 81...
  • Page 94 IKARPC-W10A-BT In-vehicle Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU)  Low-Voltage Directive (2006/95/EC, 2014/35/EU)  RoHS II Directive (2011/65/EU, 2015/863/EU)  If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 95 IKARPC-W10A-BT In-vehicle Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ...
  • Page 96 IKARPC-W10A-BT In-vehicle Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.
  • Page 97 IKARPC-W10A-BT In-vehicle Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and  This device must accept any interference received, including interference ...

  • Page 98: B Safety Precautions

    IKARPC-W10A-BT In-vehicle Panel PC Appendix Safety Precautions Page 86...

  • Page 99: Safety Precautions

     Electric shocks can occur if the IKARPC-W10A-BT chassis is opened when it is running. To avoid risk of electric shock, this device must only be connected to a supply mains with protective earth.

  • Page 100: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the IKARPC-W10A-BT. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the IKARPC-W10A-BT is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 101: Product Disposal

    IKARPC-W10A-BT In-vehicle Panel PC B.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 102: Maintenance And Cleaning Precautions

    Some components in the IKARPC-W10A-BT may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the IKARPC-W10A-BT. ...
  • Page 103 IKARPC-W10A-BT In-vehicle Panel PC  Water or rubbing alcohol–A cloth moistened with water or rubbing alcohol can be used to clean the device.  Using solvents–The use of solvents is not recommended when cleaning the device as they may damage the plastic parts.

  • Page 104: Cobd-Ii Reader Command

    IKARPC-W10A-BT In-vehicle Panel PC Appendix OBD-II Reader Command Page 92...

  • Page 105: Select A Chip Initial Mode: Update F/W Or Run F/W

    IKARPC-W10A-BT In-vehicle Panel PC C.1 Select a Chip Initial Mode: UpDate F/W or RUN F/W  AP sends query  F/W receives query Enter Boot Mode Enter RUN Mode C.2 Boot Mode  Launch AP: P1618QP (Pic18F Bootloader ) ...
  • Page 106 IKARPC-W10A-BT In-vehicle Panel PC F/W returns (after receiving query) Select a mode to send Tele mode response CAN S mode response Enter Tele mode to respond Enter CAN S mode to respond Page 94...

  • Page 107: Into Can_Standard V2.2.B (Can Standard)

    IKARPC-W10A-BT In-vehicle Panel PC C.4 Into CAN_Standard V2.2.B (CAN standard)  AP sends query  F/W receives query 0x0A 0x0D Sent by xxx Baud 0x00 Set CAN Reserved baud 0x00 TxIDE RTR ID(1 ID(2 ID(3 ID(4 Set to Reserved B0 B1...
  • Page 108 IKARPC-W10A-BT In-vehicle Panel PC complete 0x0A Menu setup complete TxID ID(1) ID(2) ID(3) ID(4) 0x0A Read query setup Read menu D(1) D(2) D(3) D(4) 1ID( 1ID( 1ID( 1ID( 2ID( 2ID( 2ID( 2ID( D(1) D(2) D(3) D(4) setup RxID 0x0A 1ID(...

  • Page 109: Into Telematics (Vehicel Information)

    IKARPC-W10A-BT In-vehicle Panel PC C.5 Into Telematics (Vehicel Information)  F/W:Telematics  AP: Telematics V1.005  AP sends query  F/W receives query Scan all Scan all Scan OBD-II Scan J1939 Scan FMS OBD-II input PID-1 OBD-II input PID-2 OBD-II...
  • Page 110 IKARPC-W10A-BT In-vehicle Panel PC Reserved J1939 input PSPF FMS input PSPF Version  F/W returns (after receiving query) device is scanned Devices Scanned Page 98...
  • Page 111 IKARPC-W10A-BT In-vehicle Panel PC OBD packet format (ASCII code) OBD packet has five different format, they are: 1. CAN 11bits 250 2. CAN 29bits 250 3. CAN 11bits 500 4. CAN 29bits 500 5.Scanning Each format has its input code, they are:...
  • Page 112 IKARPC-W10A-BT In-vehicle Panel PC Byte 4 define as A. (same with the PID code table on Wikipedia) Byte 5 define as B. (same with the PID code table on Wikipedia) Byte 6 define as C. (same with the PID code table on Wikipedia) Byte 7 define as D.

  • Page 113: D Watchdog Timer

    IKARPC-W10A-BT In-vehicle Panel PC Appendix Watchdog Timer Page 101...
  • Page 114 IKARPC-W10A-BT In-vehicle Panel PC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working.
  • Page 115 IKARPC-W10A-BT In-vehicle Panel PC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.
  • Page 116 IKARPC-W10A-BT In-vehicle Panel PC Appendix Hazardous Materials Disclosure Page 104...
  • Page 117 IKARPC-W10A-BT In-vehicle Panel PC The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 118 IKARPC-W10A-BT In-vehicle Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...

This manual is also suitable for:

Ikarpc-w10a-bt

Table of Contents
